991101 (ZT 60 HD) - Gravely 60" Zero-Turn Mower, Kawasaki, CARB (SN: 050000 & Above)

60" Zero-Turn Mower, Kawasaki, CARB

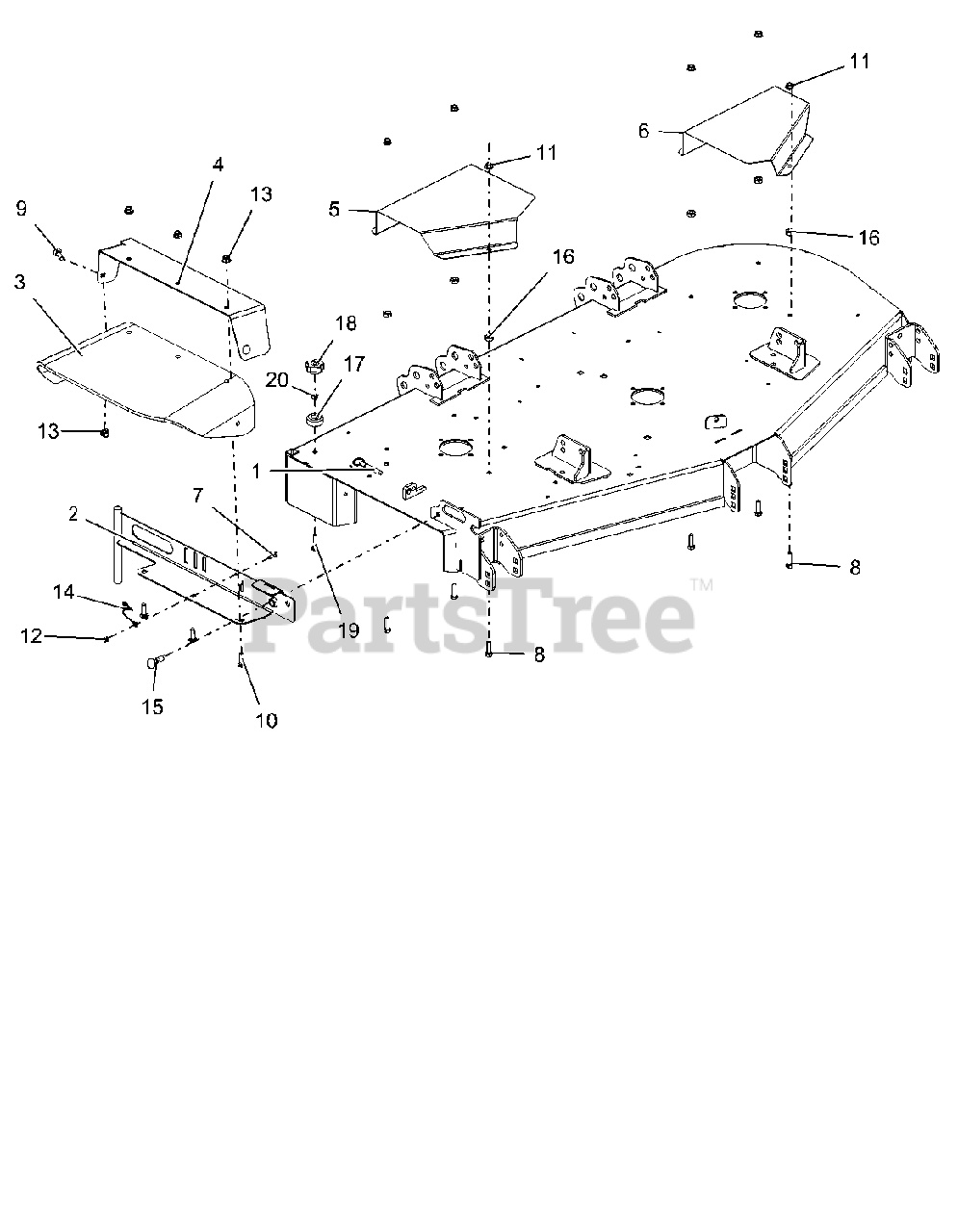

991101 (ZT 60 HD) - Gravely 60" Zero-Turn Mower, Kawasaki, CARB (SN: 050000 & Above) > Parts Diagrams (25) > Chute And Belt Covers - 60"

  • Title
01593500

1

PIN, SPRING BALL .375 OD X 1.50

Part# 01593500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

04727953

2

WLDMT, DISCHARGE CHUTE 52"-60"

Part# 04727953

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $73.79

04551600

3

CHUTE, RUBBER DISCHARGE

Part# 04551600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $51.37

04728053

4

SUPPORT, CHUTE MOUNTING BRKT

Part# 04728053 (Superseded to 59106700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $41.65

04728553

5

GUARD, DECK 60"-66" RH

Part# 04728553

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $44.61

04728653

6

GUARD, DECK 60"-66" LH

Part# 04728653

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.61

05946800

7

BLT-HEX .25-20X.75 GR5 YWZC

Part# 05946800

OEM Warranty Repair Part for Gravely

Not available

05958000

8

BLT-HEX .38-16X1.25 GR5 YWZC

Part# 05958000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06223600

9

BLT-RDHDSQNK .38-16X1.00 G5 YWZC

Part# 06223600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06224100

10

BLT-RDHDSQNK .38-16X1.25 G5 YWZC

Part# 06224100 (Superseded to 06200415)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06534900

11

@NUT-SPNLK-FLG .375-16 YWZC

Part# 06534900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06543500

12

NUT, LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06545500

13

NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06900321

14

CABLE, 6.0 LANYARD, NYLON

Part# 06900321

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

07000037

15

PULL PIN,.50-13THDX.310 PLNGR

Part# 07000037

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

07001525

16

NUT-HEAVY HEX .38-16 YWZC

Part# 07001525 (Superseded to 06500823)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

07500009

17

BUMPER, RECESSED 1.50 X .63 W/.31 HOLE

Part# 07500009

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07534800

18

KNOB, CLAMPING

Part# 07534800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $9.89

06212100

19

BLT-RDHDSQNK .31-18X1.50 G5 YWZC

Part# 06212100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06529800

20

NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85
