991102 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, CARB (SN: 020000 - 020999) Controls Parts Diagram

Pro-Turn 48" Zero-Turn Mower, CARB

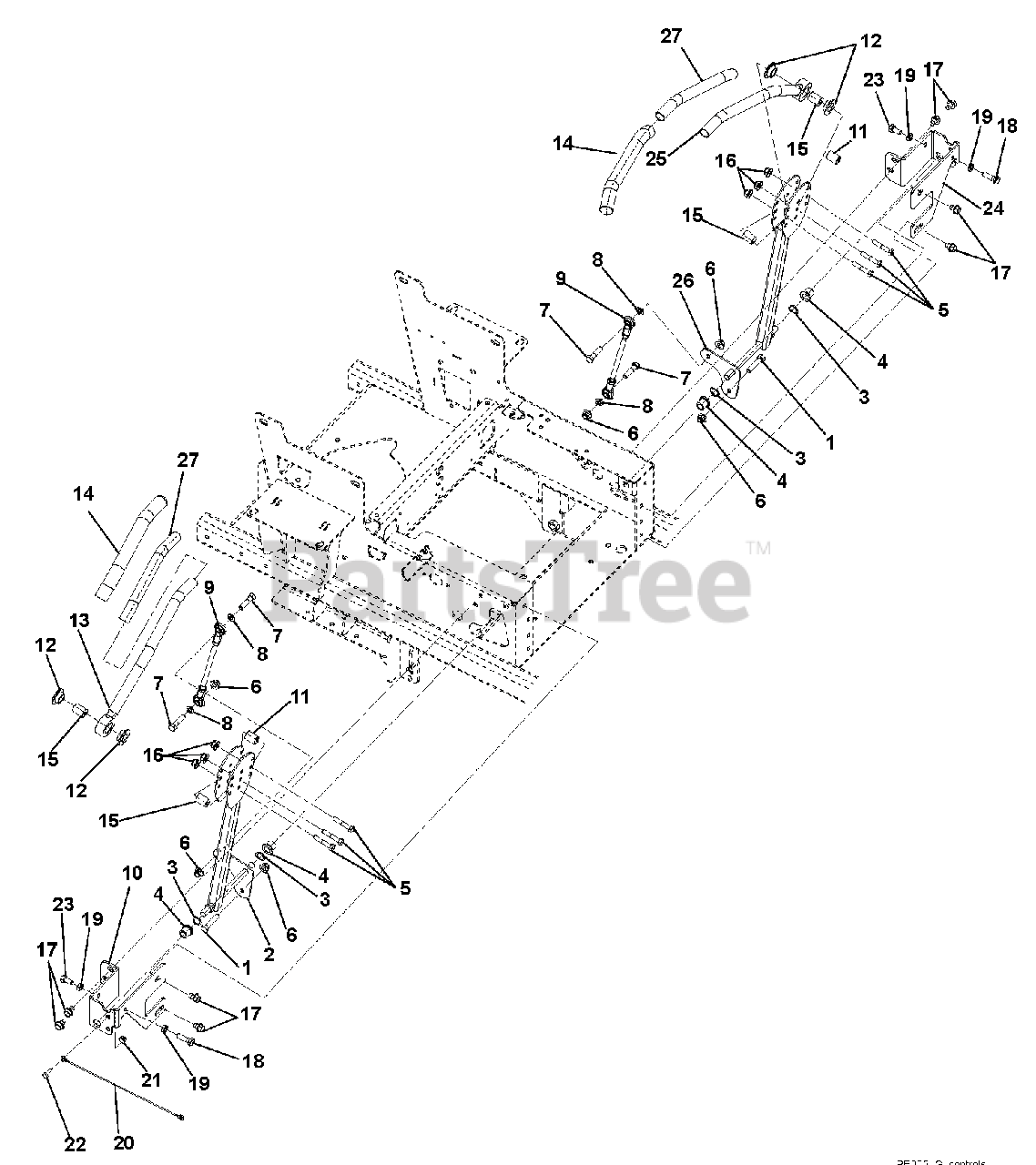

Controls Parts Diagram

  • Title

1

Gravely 05942200

BLT-HEX .38-16X2.0 GR5 FTD YWZ

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 04558551

RH PT/PT100 CONTROL ARM WMT-BL
(Superseded to 04762951)

$117.99

$

Usually ships in 4-12 days

0

3

Gravely 03704900

WAVE WASHER .640X.875X.125FH

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$3.49

$

In Stock, Qty 20+

0

5

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.99

$

In Stock, Qty 9

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 13

0

8

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 03251700

ASM, STEERING LINKAGE

$77.99

$

In Stock, only 2 left!

0

10

Gravely 03752753

RH STEERING STOP BRACKET - RED

$82.99

$

Usually ships in 4-12 days

0

11

Gravely 05500932

BSHG, ECCENTRIC .328X.750X.970

$3.49

$

In Stock, Qty 20+

0

12

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$3.49

$

In Stock, Qty 12

0

13

Gravely 09235600

WLDMT, RH HANDLE

$99.99

$

In Stock, only 2 left!

0

14

Gravely 03929100

GRIP, HANDLEBAR 1.00X1.38X11.3

$17.99

$

In Stock, only 3 left!

0

15

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$4.99

$

In Stock, Qty 7

0

21

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 12

0

24

Gravely 03754753

LH STEERING STOP BRACKET - RED

$77.99

$

Usually ships in 4-12 days

0

25

Gravely 09235500

HANDLE WLDMT LH

$111.99

$

In Stock, Qty 6

0

26

Gravely 04558651

LH PT/PT100 CONTROL ARM WMT-BL
(Superseded to 04763051)

$165.99

$

Usually ships in 4-12 days

0

27

Gravely 03988300

TUBE, .88ID X 1.00OD X 10.25

$15.99

$

In Stock, only 2 left!

0
