991102 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, CARB (SN: 021000 - 029999) Anti-Scalp Rollers Parts Diagram

Pro-Turn 48" Zero-Turn Mower, CARB

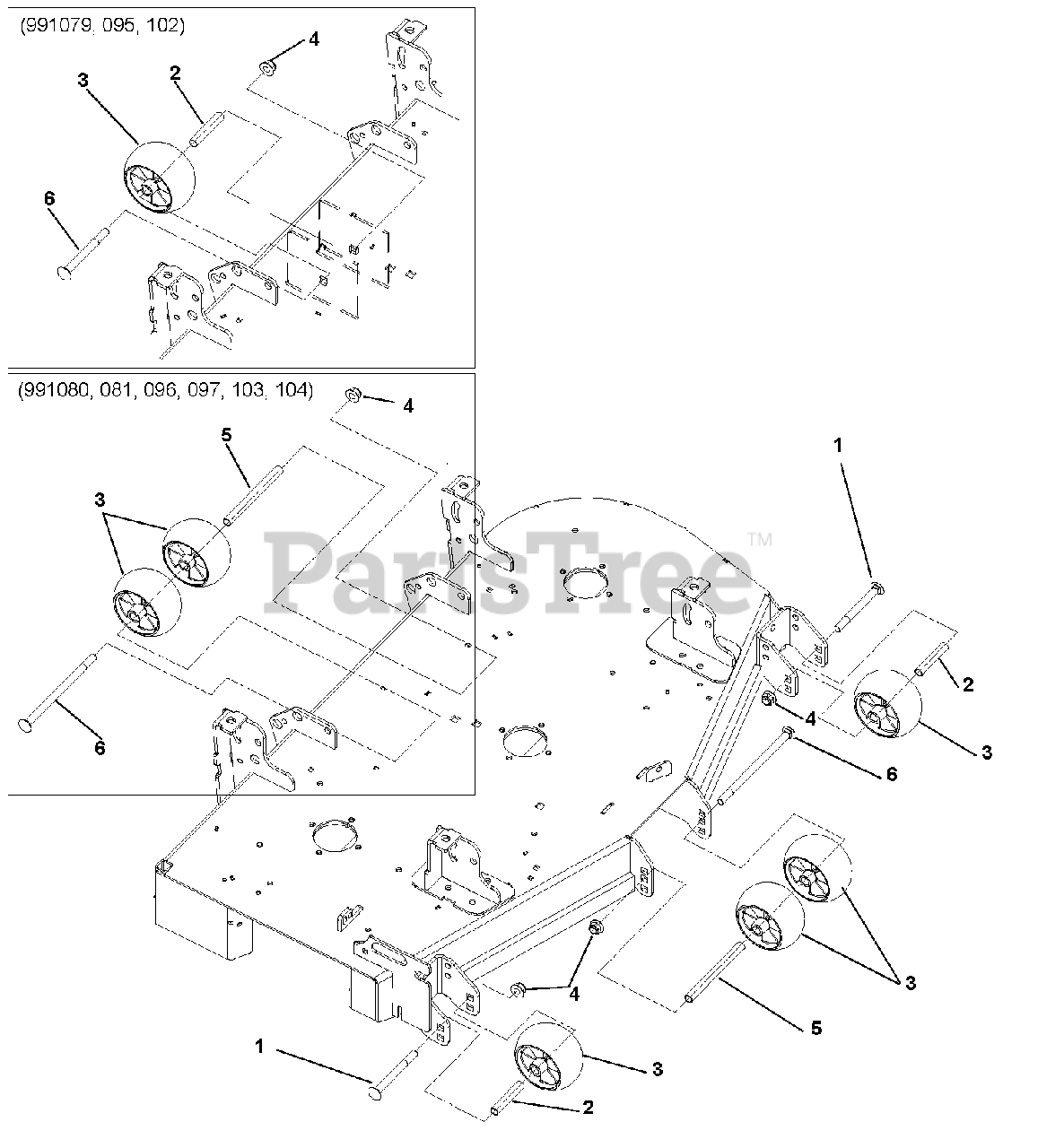

Anti-Scalp Rollers Parts Diagram

  • Title

1

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00 (991079, 095, 102)
(Superseded to 06200505)

Note: (991079, 095, 102)

$5.99

$

In Stock, Qty 20+

0

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00 (991080, 081, 096, 097, 103, 104)
(Superseded to 06200505)

Note: (991080, 081, 096, 097, 103, 104)

$5.99

$

In Stock, Qty 20+

0

2

Gravely 00473700

Spacer, .510 x .625 x 3.35 (991079, 095, 102)

Note: (991079, 095, 102)

$18.99

$

In Stock, Qty 20+

0

Gravely 00473700

Spacer, .510 x .625 x 3.35 (991080, 081, 096, 097, 103, 104)

Note: (991080, 081, 096, 097, 103, 104)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 03905900

Anti-Scalp Wheel (991079, 095, 102)

Note: (991079, 095, 102)

$10.99

$

In Stock, Qty 20+

0

Gravely 03905900

Anti-Scalp Wheel (991080, 081, 096, 097, 103, 104)

Note: (991080, 081, 096, 097, 103, 104)

$10.99

$

In Stock, Qty 20+

0

4

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 00473800

Spacer, .510 x .625 x 6.70 (991079, 095, 102)

Note: (991079, 095, 102)

$20.99

$

In Stock, Qty 20+

0

Gravely 00473800

Spacer, .510 x .625 x 6.70 (991080, 081, 096, 097, 103, 104)

Note: (991080, 081, 096, 097, 103, 104)

$20.99

$

In Stock, Qty 20+

0

6

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50 (991079, 095, 102)
(Superseded to 06200321)

Note: (991079, 095, 102)

$6.99

$

In Stock, Qty 20+

0

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50 (991080, 081, 096, 097, 103, 104)
(Superseded to 06200321)

Note: (991080, 081, 096, 097, 103, 104)

$6.99

$

In Stock, Qty 20+

0
