991103 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, CARB (SN: 020000 - 020999) Decals - Style Parts Diagram

Pro-Turn 52" Zero-Turn Mower, CARB

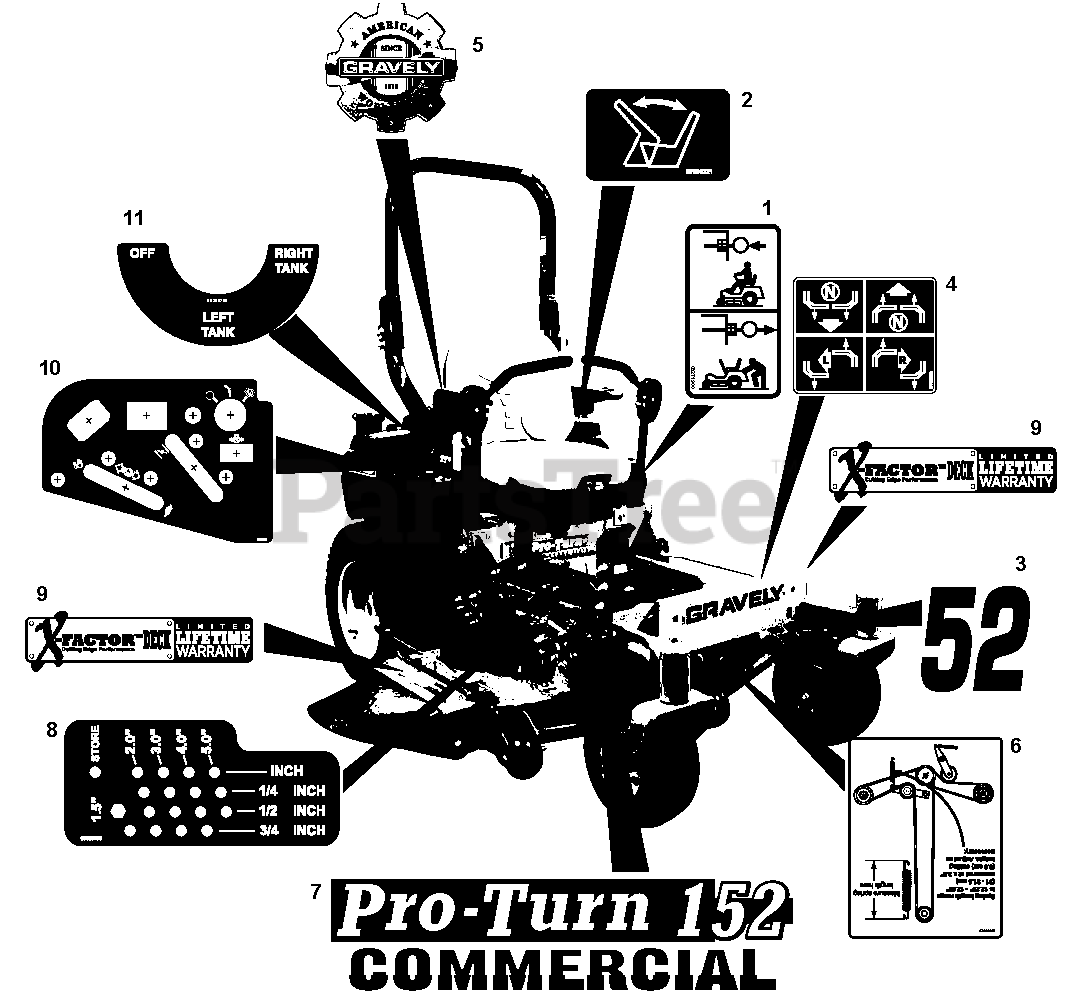

Decals - Style Parts Diagram

  • Title

1

Gravely 03271900

Decal, Transmission Disconnect

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 07800221

Decal, Seat Release

$10.99

$

Usually ships in 4-12 days

0

3

Gravely 03891000

Decal, 48 (991079, 095, 102)

Note: (991079, 095, 102)

$

$

Not available

Gravely 07800026

Decal, 52 (991080, 096, 103)

Note: (991080, 096, 103)

$23.99

$

Usually ships in 4-12 days

0

Gravely 03818400

Decal, 60 (991081, 097, 104)

Note: (991081, 097, 104)

$23.99

$

Usually ships in 4-12 days

0

4

Gravely 07757600

Decal, Instructional-Steering

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 08000526

Decal, Gravely Heritage, Large
(Superseded to 07800534)

$23.99

$

In Stock, Qty 5

0

6

Gravely 03875000

Decal, Belt Routing (991079, 080, 095, 096, 102, 103)

Note: (991079, 080, 095, 096, 102, 103)

$8.49

$

Usually ships in 4-12 days

0

Gravely 08000605

Decal, Belt Routing (991081, 097, 104)

Note: (991081, 097, 104)

$12.99

$

Usually ships in 4-12 days

0

7

Gravely 04014000

Decal, Pro-Turn 148 (991079, 095, 102)

Note: (991079, 095, 102)

$36.99

$

Usually ships in 4-12 days

0

Gravely 04014100

Decal, Pro-Turn 152 (991080, 096, 103)

Note: (991080, 096, 103)

$10.99

$

Usually ships in 4-12 days

0

Gravely 04014200

Decal, Pro-Turn 160 (991081, 097, 104)

Note: (991081, 097, 104)

$36.99

$

Usually ships in 4-12 days

0

8

Gravely 03955200

Decal, Height of Cut

$7.49

$

In Stock, only 1 left!

0

9

Gravely 05366200

Decal, X-Factor Deck

$35.99

$

In Stock, only 1 left!

0

10

Gravely 04039400

Decal, Control Panel (991079, 080, 081, 102, 103, 104)

Note: (991079, 080, 081, 102, 103, 104)

$

$

Not available

Gravely 04422600

Decal, Control Panel (991095, 096, 097)

Note: (991095, 096, 097)

$

$

Not available

11

Gravely 05239700

Decal, Fuel Valve

$3.99

$

In Stock, only 1 left!

0
