991103 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, CARB (SN: 030000 - 039999) Chute & Belt Covers, 52" Deck Parts Diagram

Pro-Turn 52" Zero-Turn Mower, CARB

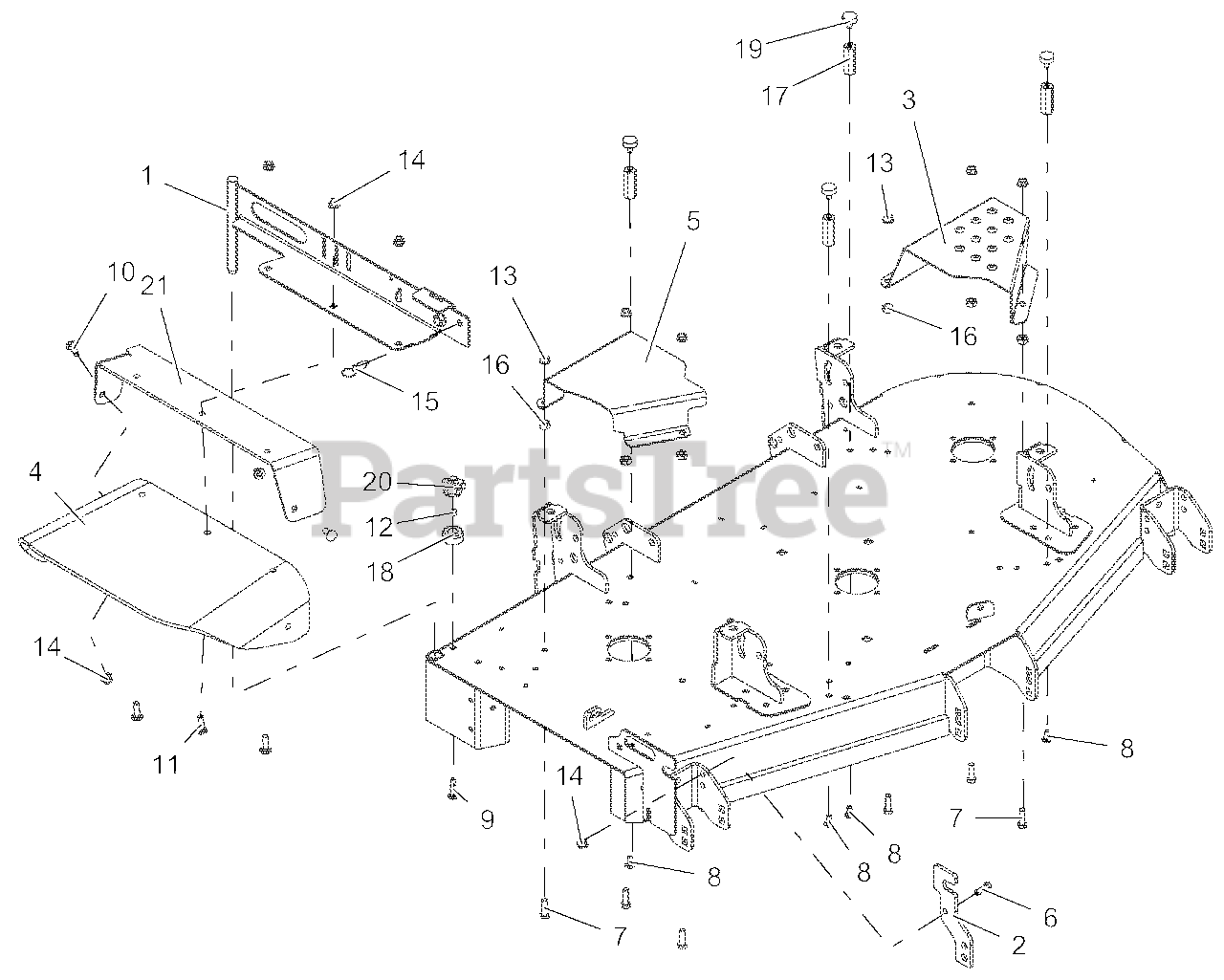

Chute & Belt Covers, 52" Deck Parts Diagram

  • Title

1

Gravely 00980553

WLDMT, 52"-60" DISCH CHUTE MTG-RED
(Superseded to 04727953)

$131.99

$

In Stock, only 1 left!

0

2

Gravely 00474753

CHUTE STORAGE BRACKET-RED

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 03977151

GUARD, 44-52" LH DECK BELT-BLACK

$92.99

$

Usually ships in 4-12 days

0

4

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$70.99

$

In Stock, Qty 9

0

5

Gravely 04590251

GUARD, 48"-52" RH DECK BELT-BLACK

$58.99

$

In Stock, only 2 left!

0

6

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, only 2 left!

0

8

Gravely 06200002

BLT, RDHDSQNK .31-18X.75 LOCTITE
(Superseded to 06200425)

$4.99

$

In Stock, Qty 7

0

9

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5 YWZC
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

10

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

11

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 12

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 8

0

16

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.99

$

In Stock, Qty 16

0

17

Gravely 07001630

NUT, .31-18 X 2.25 LG COUPLING

$33.99

$

Usually ships in 4-12 days

0

18

Gravely 07500009

BUMPER, RECESSED 1.50 X .63 W/.31 HOLE

$6.49

$

In Stock, only 2 left!

0

19

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

20

Gravely 07534800

KNOB, CLAMPING

$3.99

$

In Stock, Qty 20+

0

21

Gravely 59218500

DISCHARGE CHUTE SUPPORT W/SAFETY DECAL-RED

$104.99

$

Usually ships in 4-12 days

0
