991105 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB (SN: 020000 - 040999) EPA Vent Lines Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB

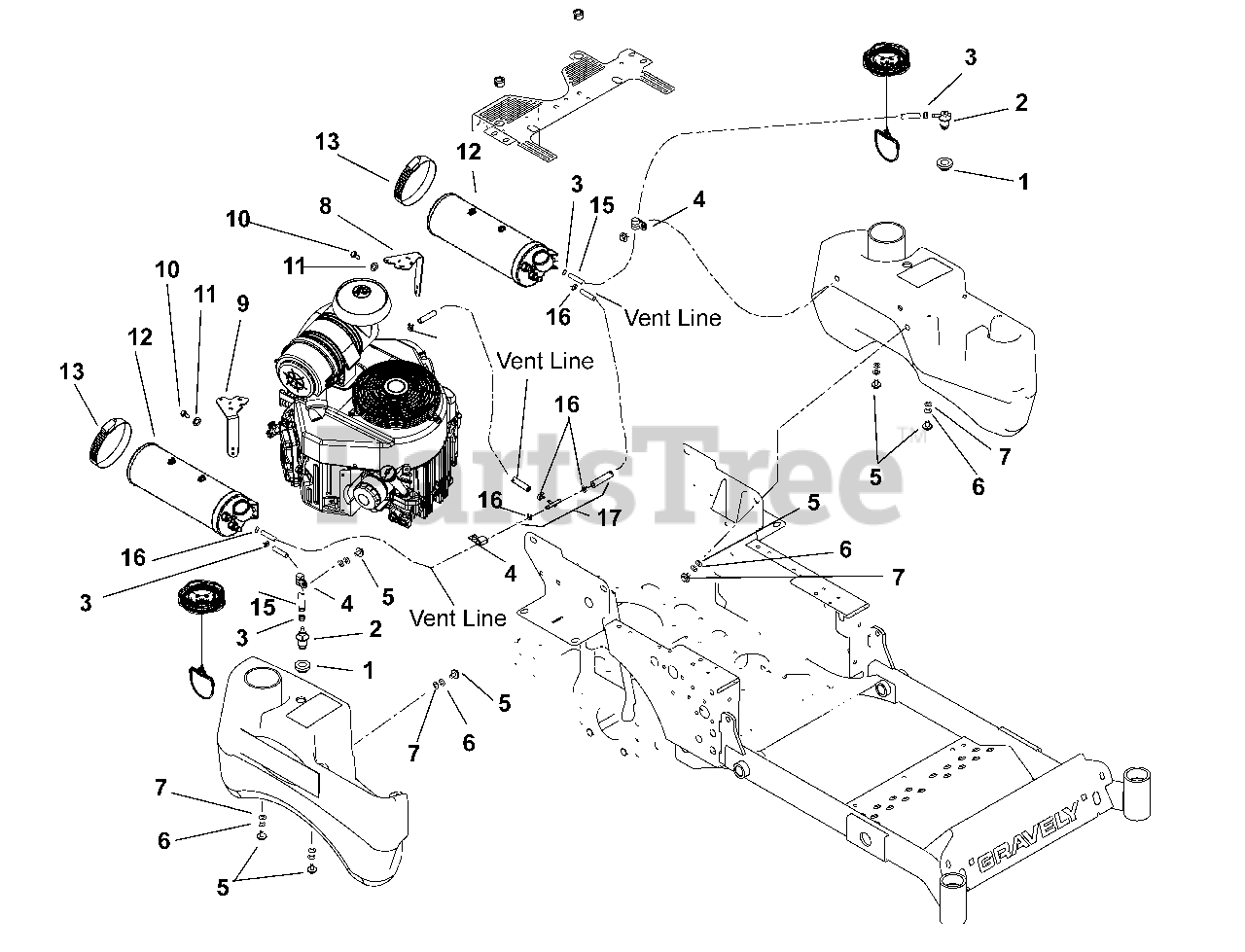

EPA Vent Lines Parts Diagram

  • Title

1

Gravely 04082700

Grommet

$3.99

$

In Stock, Qty 20+

0

2

Gravely 04068910

Valve
(Superseded to 05185600)

$13.99

$

In Stock, only 2 left!

0

3

Gravely 03278800

Hose, Clamp

$1.49

$

In Stock, Qty 8

0

4

Gravely 06908200

Clamp

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 05947800

Bolt, .31-18 x .62
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

8

Gravely 04592600

Bracket, CE Canister Mounting Left Hand

$

$

Not available

9

Gravely 04592700

Bracket, CE Canister Mounting Right Hand

$

$

Not available

10

05973340

Bolt, Hex M8-1.25 x 20mm

$

$

Not available

11

Gravely 06308600

Washer, Lock.31 x .078 Reg
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04548100

Canister, Carbon 400 cc CARB

$78.99

$

Usually ships in 4-12 days

0

13

Gravely 06940200

Clamp, Hose 2.3/3.2 SS #44

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 07001712

T-Clip .38-.50

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas 21.0"

$0.99

$

In Stock, Qty 20+

0

16

Gravely 04097700

Clamp, Hose Spring .188

$1.49

$

Usually ships in 4-12 days

0

17

Gravely 04592400

Assembly, Compact Pro Vapor CARB (Includes items 16 and vent lines)

Note: (Includes items 16 and vent lines)

$

$

Not available
