991105 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB (SN: 041000 - 049999) Deck, Mounting Arms And Belt Guards Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB

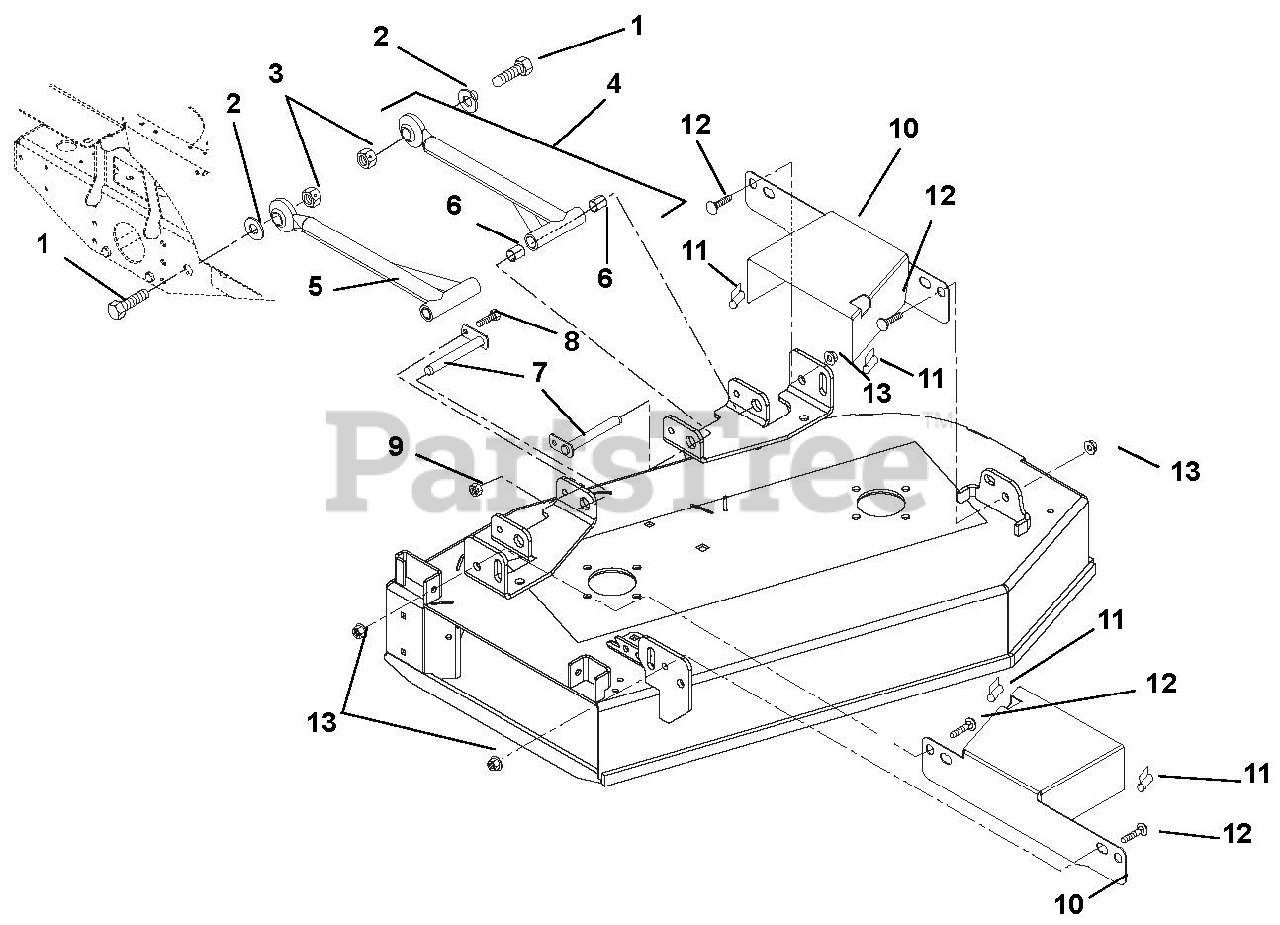

Deck, Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 05900003

Bolt, Hex .875-9 x 3.00

$7.49

$

Usually ships in 4-12 days

0

2

Gravely 05512600

Bushing, Sleeve .875 x 1.25 x .531

$6.49

$

In Stock, only 2 left!

0

3

Gravely 06539700

Nut, Locking Center .875-9

$6.49

$

In Stock, Qty 9

0

4

Gravely 09282000

Assembly, Mower Mounting

Note: (Includes Items 5 and 6)

$217.99

$

Usually ships in 4-12 days

0

5

Gravely 09282151

Arm, Mower Mounting

$145.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

Bearing, .75 x .875 x 1.00

$6.99

$

In Stock, Qty 20+

0

7

Gravely 09238900

Weldment, Mower Mounting Pin

$63.99

$

In Stock, Qty 6

0

8

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 03994251

Guard, 34" Belt

$37.99

$

In Stock, only 4 left!

0

11

Gravely 00929000

Seal, Trim-LOK Bulk .06 Bubble

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06224600

Bolt, Round Head Square Neck .50-13 x 1.00 Grade 5
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

13

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0
