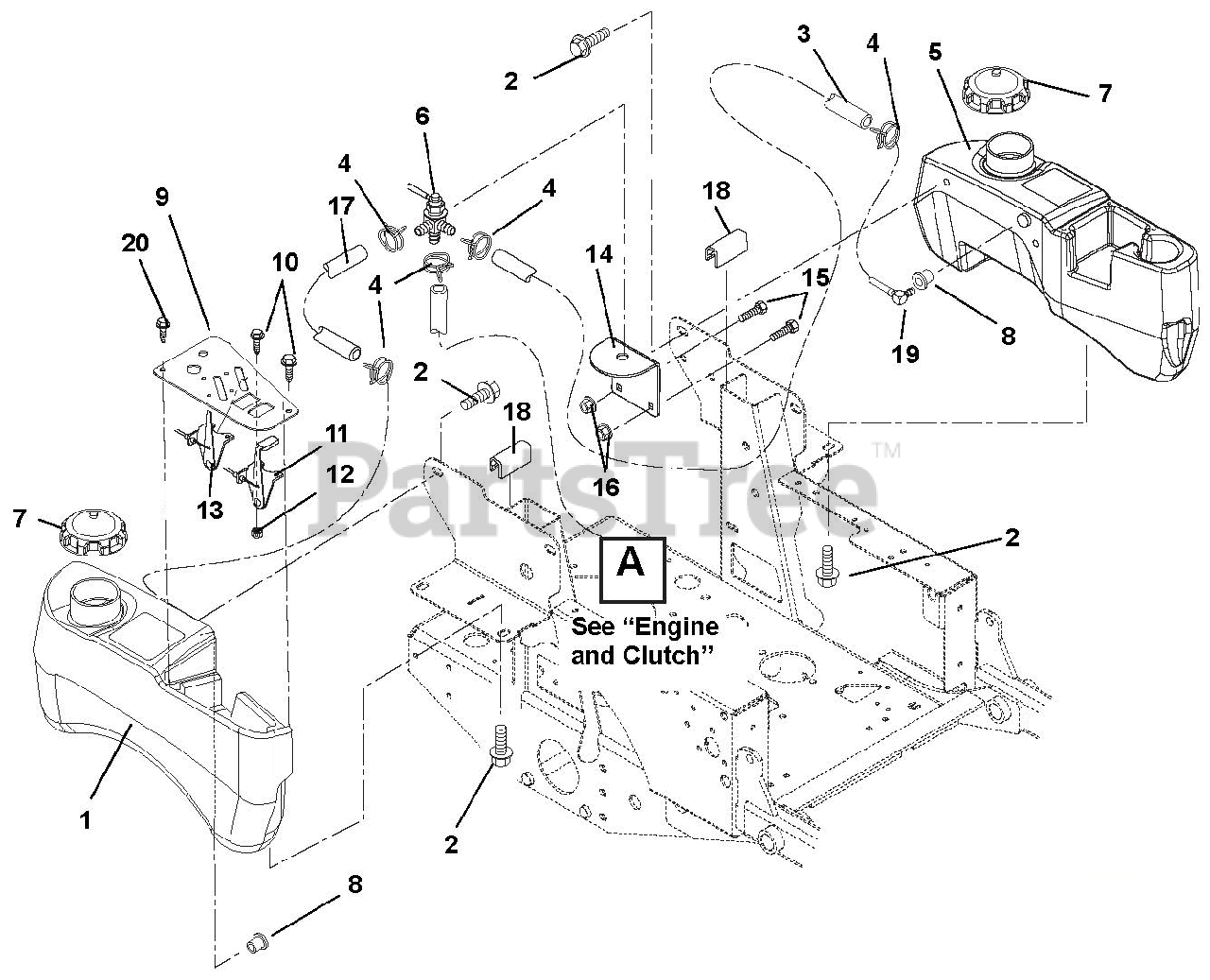

991105 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB (SN: 041000 - 049999) Fuel Tanks And Hoses Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 04244900

Tank, Fuel Right Hand
(Superseded to 04340400)

$

$

Not available

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 6

0

3

Gravely 03278100

Hose, Gas Line .25" I.D.

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

Hose, Clamp

$1.49

$

In Stock, Qty 12

0

5

Gravely 04245000

Tank, Fuel Left Hand
(Superseded to 04340500)

$448.99

$

In Stock, only 1 left!

0

6

Gravely 09258200

Valve, Fuel

$48.99

$

In Stock, Qty 6

0

7

Gravely 04558100

Cap, Fuel Non-Vent Autolock

Note: (991105)

$23.99

$

In Stock, only 1 left!

0

7

Gravely 04558000

Cap, Fuel Vent-In Autolock
(Superseded to 09190300)

Note: (991088)

$35.99

$

In Stock, Qty 8

0

8

Gravely 00387300

Grommet

Note: (Orange color will not replace black color)

$9.99

$

In Stock, Qty 13

0

9

Gravely 04041751

Panel, Control

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06900002

Cable, Throttle

$53.99

$

In Stock, only 2 left!

0

12

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06900402

Cable, Choke

$35.99

$

Usually ships in 4-12 days

0

14

Gravely 00361951

Bracket, Fuel Valve Mounting

$7.49

$

Usually ships in 4-12 days

0

15

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06545400

Nut, Nyloc Flange 5/16-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 03278100

Hose, Gas Line .25" I.D.

$1.49

$

In Stock, Qty 20+

0

18

Gravely 00918200

Cowl Strip 1.75" Long

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 03900400

Assembly, Small Tank Fuel Pick-up
(Superseded to 04320900)

$40.99

$

In Stock, Qty 18

0

20

Gravely 06100211

Screw, Machine 10-24 x .38

$3.49

$

In Stock, Qty 20+

0
