991107 (ZT 44 HD) - Gravely 44" Zero-Turn Mower, Kohler (SN: 035000 - 044999) Deck, Discharge Chute, Anti-Scalp Rollers, & Belt Covers Parts Diagram

44" Zero-Turn Mower, Kohler

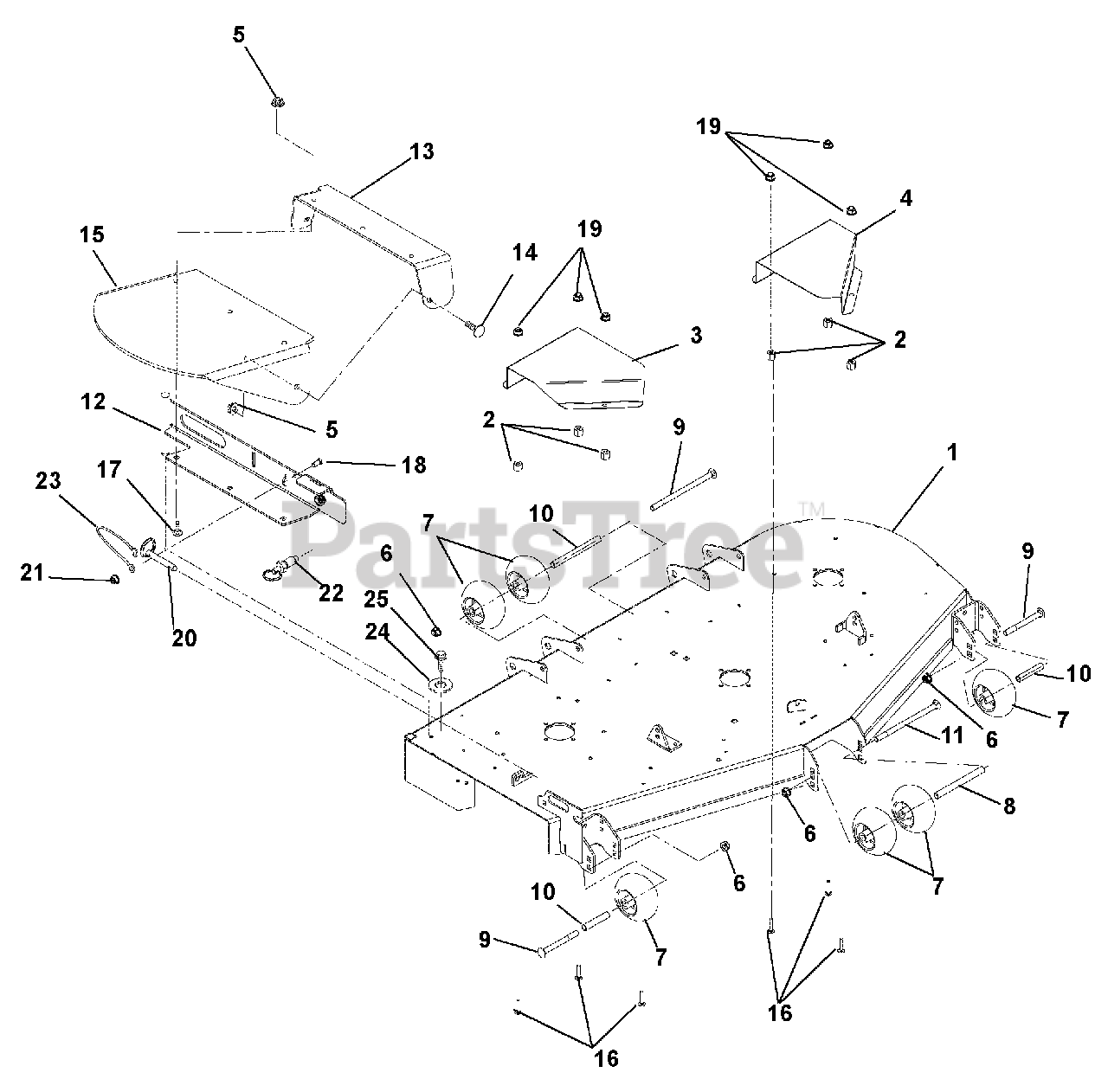

Deck, Discharge Chute, Anti-Scalp Rollers, & Belt Covers Parts Diagram

  • Title

1

Gravely 59102300

KIT,DECK - 60" W/SAFETY DECALS

Note: (991084, 101, 110)

$1318.99

$

Usually ships in 4-12 days

0

1

Gravely 59102400

KIT,DECK - 52" W/SAFETY DECALS

Note: (991083, 100, 109)

$1318.99

$

In Stock, only 1 left!

0

1

Gravely 59102500

KIT,DECK - 48" W/SAFETY DECALS

Note: (991082, 099, 108)

$1161.99

$

Usually ships in 4-12 days

0

1

Gravely 59102600

KIT,DECK - 44" W/SAFETY DECALS

Note: (991090, 098, 107)

$969.99

$

Usually ships in 4-12 days

0

2

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 04728553

GUARD, DECK 60"-66" RH

Note: (991084, 101, 110)

$47.99

$

In Stock, only 4 left!

0

3

Gravely 04742753

GUARD, DECK 44"-52" RH

Note: (991082, 083, 090, 098, 099, 100, 107, 108, 109)

$33.99

$

In Stock, only 2 left!

0

4

Gravely 04728653

GUARD, DECK 60"-66" LH

Note: (991084, 101, 110)

$48.99

$

In Stock, only 4 left!

0

4

Gravely 04742853

GUARD, DECK 44"-52" LH

Note: (991082, 083, 090, 098, 099, 100, 107, 108, 109)

$58.99

$

Usually ships in 4-12 days

0

5

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (991082, 099, 108)

$13.99

$

In Stock, Qty 20+

0

7

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (991083, 084, 090, 098, 100, 101, 107, 109, 110)

$13.99

$

In Stock, Qty 20+

0

8

Gravely 00473800

SPACER, .510X.625X6.50

Note: (991082, 099, 108)

$22.99

$

In Stock, Qty 20+

0

8

Gravely 00473800

SPACER, .510X.625X6.50

Note: (991083, 084, 090, 098, 100, 101, 107, 109, 110)

$22.99

$

In Stock, Qty 20+

0

9

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (991082, 099, 108)

$

$

Not available

9

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (991083, 084, 090, 098, 100, 101, 107, 109, 110)

$

$

Not available

10

Gravely 00473700

SPACER, .510X.625X3.35

Note: (991082, 099, 108)

$19.99

$

In Stock, Qty 20+

0

10

Gravely 00473700

SPACER, .510X.625X3.35

Note: (991083, 084, 090, 098, 100, 101, 107, 109, 110)

$19.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (991082, 099, 108)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (991083, 084, 090, 098, 100, 101, 107, 109, 110)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 04757453

WLDMT, DISCHARGE CHUTE 44"-48"

Note: (991082, 090, 098, 099, 107, 108)

$115.99

$

In Stock, only 4 left!

0

12

Gravely 04727953

WLDMT, DISCHARGE CHUTE 52"-60"

Note: (991083, 084, 100, 101, 109, 110)

$131.99

$

In Stock, only 1 left!

0

13

Gravely 04728053

SUPPORT, CHUTE MOUNTING BRKT
(Superseded to 59106700)

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$70.99

$

In Stock, Qty 9

0

16

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

17

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (991082, 090, 098, 099, 107, 108)

$1.49

$

In Stock, only 3 left!

0

19

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

Note: (991082, 090, 098, 099, 107, 108)

$6.49

$

In Stock, Qty 18

0

21

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (991082, 090, 098, 099, 107, 108)

$1.49

$

In Stock, Qty 15

0

22

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

23

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

Note: (991082, 090, 098, 099, 107, 108)

$6.49

$

In Stock, only 2 left!

0

24

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

25

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0
