991107 (ZT 44 HD) - Gravely 44" Zero-Turn Mower, Kohler (SN: 035000 - 044999) Seat Parts Diagram

44" Zero-Turn Mower, Kohler

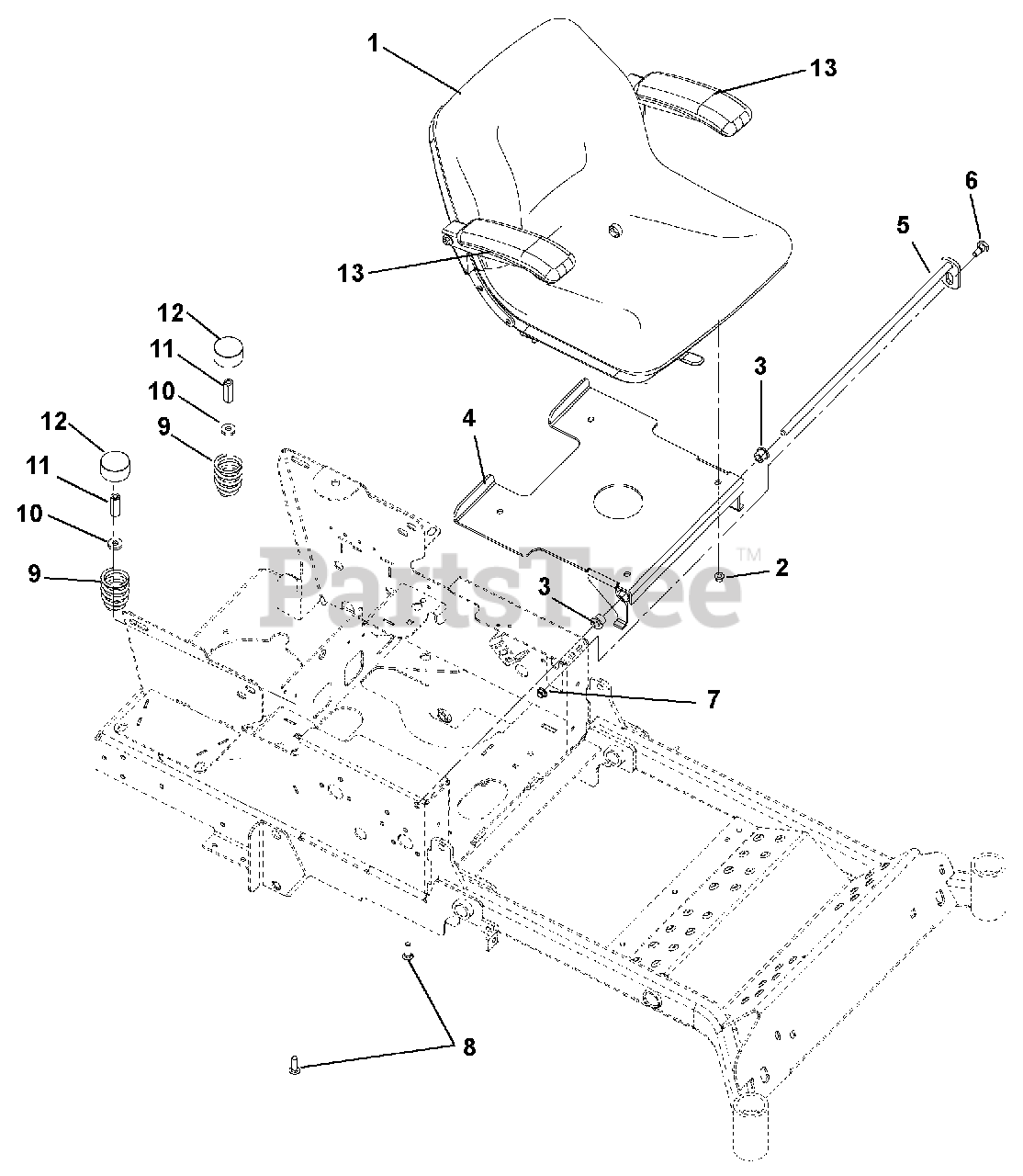

Seat Parts Diagram

  • Title

1

Gravely 03829400

SEAT, MILSCO XB-180

Note: FOR SERIAL RANGE 035000 - 039999 ONLY

$448.99

$

Usually ships in 4-12 days

0

1

Gravely 04817700

SEAT, SK250 COOL GRAY W/ARMS

Note: FOR SERIAL RANGE 040000 - AND UP ONLY

$594.99

$

Usually ships in 4-12 days

0

1

Gravely 59108600

KIT-LH & RH ARM REST REPLACE

Note: FOR SERIAL RANGE 040000 - AND UP ONLY

$178.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 02982751

WLDMT, SEAT PLATE

$118.99

$

Usually ships in 4-12 days

0

5

Gravely 03255700

WMT, SEAT SHAFT

$52.99

$

Usually ships in 4-12 days

0

6

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 17

0

7

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 08300021

SPRING, SEAT

$21.99

$

In Stock, only 4 left!

0

10

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 10

0

12

Gravely 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

13

Gravely 71600500

KIT, SEAT ARM RESTS

Note: FOR SERIAL RANGE 035000 - 039999 ONLY

$227.99

$

Usually ships in 4-12 days

0
