991108 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kohler (SN: 045000 - 049999) Deck Mount And Baffles - 44" And 48" Parts Diagram

48" Zero-Turn Mower, Kohler

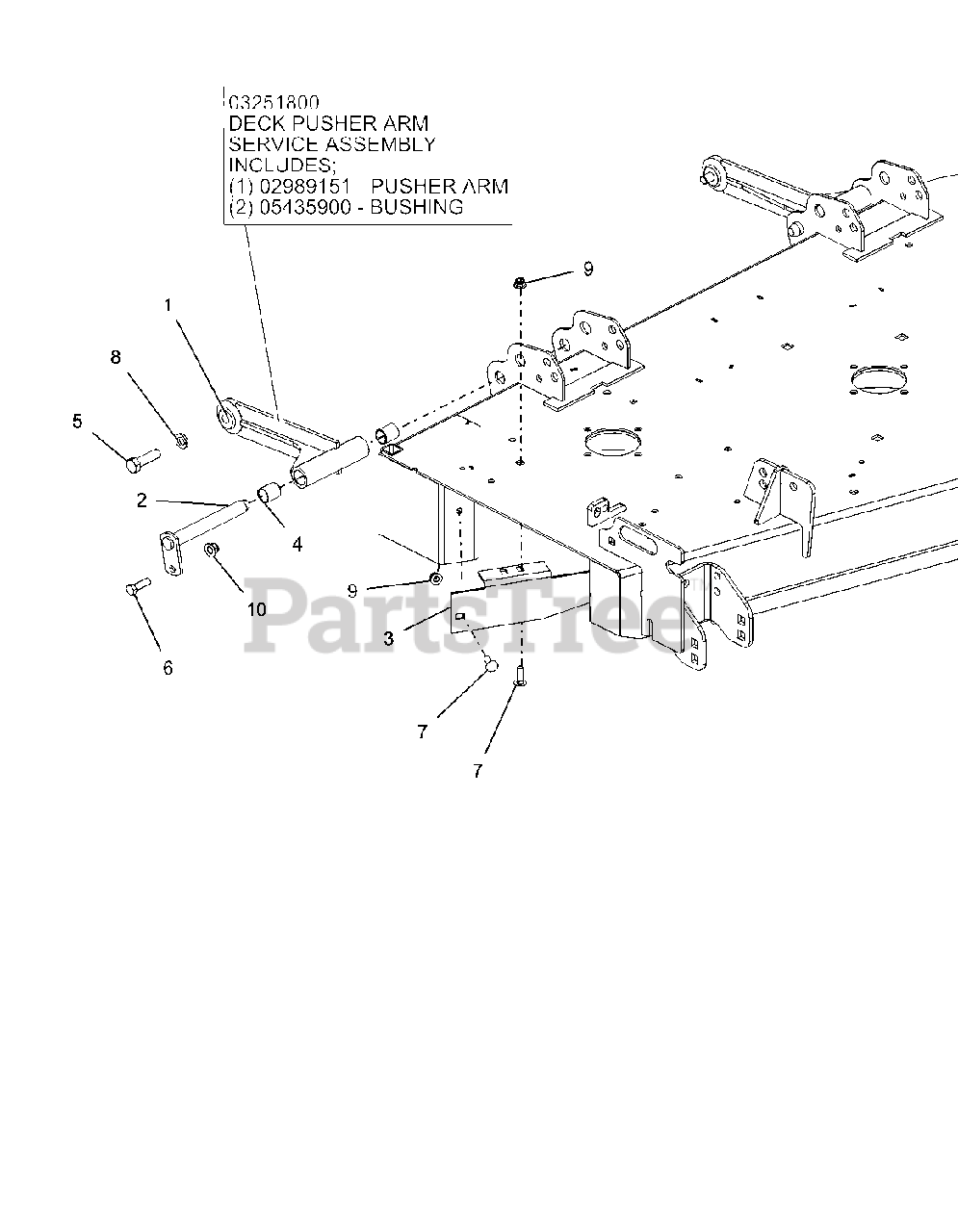

Deck Mount And Baffles - 44" And 48" Parts Diagram

  • Title

1

Gravely 05435900

BRG, .750 X .875 X 1.000

Note: SERVICE PART - INCLUDED IN THE DECK PUSHER ARM SERVICE ASSEMBLY

$6.99

$

In Stock, Qty 20+

0

1

Gravely 02989151

DECK PUSHER ARM WMT - BLACK

$110.99

$

Usually ships in 4-12 days

0

1

Gravely 02989151

DECK PUSHER ARM WMT - BLACK

Note: SERVICE PART - INCLUDED IN THE DECK PUSHER ARM SERVICE ASSEMBLY

$110.99

$

Usually ships in 4-12 days

0

1

Gravely 03251800

DECK PUSHER ARM ASSEMBLY

Note: SERVICE PART

$128.99

$

Usually ships in 4-12 days

0

2

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

3

Gravely 04389353

BAFFLE, DISCHARGE 44/48

$73.99

$

Usually ships in 4-12 days

0

4

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

5

Gravely 05901436

BLT-HEX .50-13X1.75 GR5EP80 YZ
(Superseded to 05901922)

$4.99

$

In Stock, Qty 15

0

6

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0
