991110 (ZT 60 HD) - Gravely 60" Zero-Turn Mower, Kohler (SN: 045000 - 049999) Engine - Kohler Parts Diagram

60" Zero-Turn Mower, Kohler

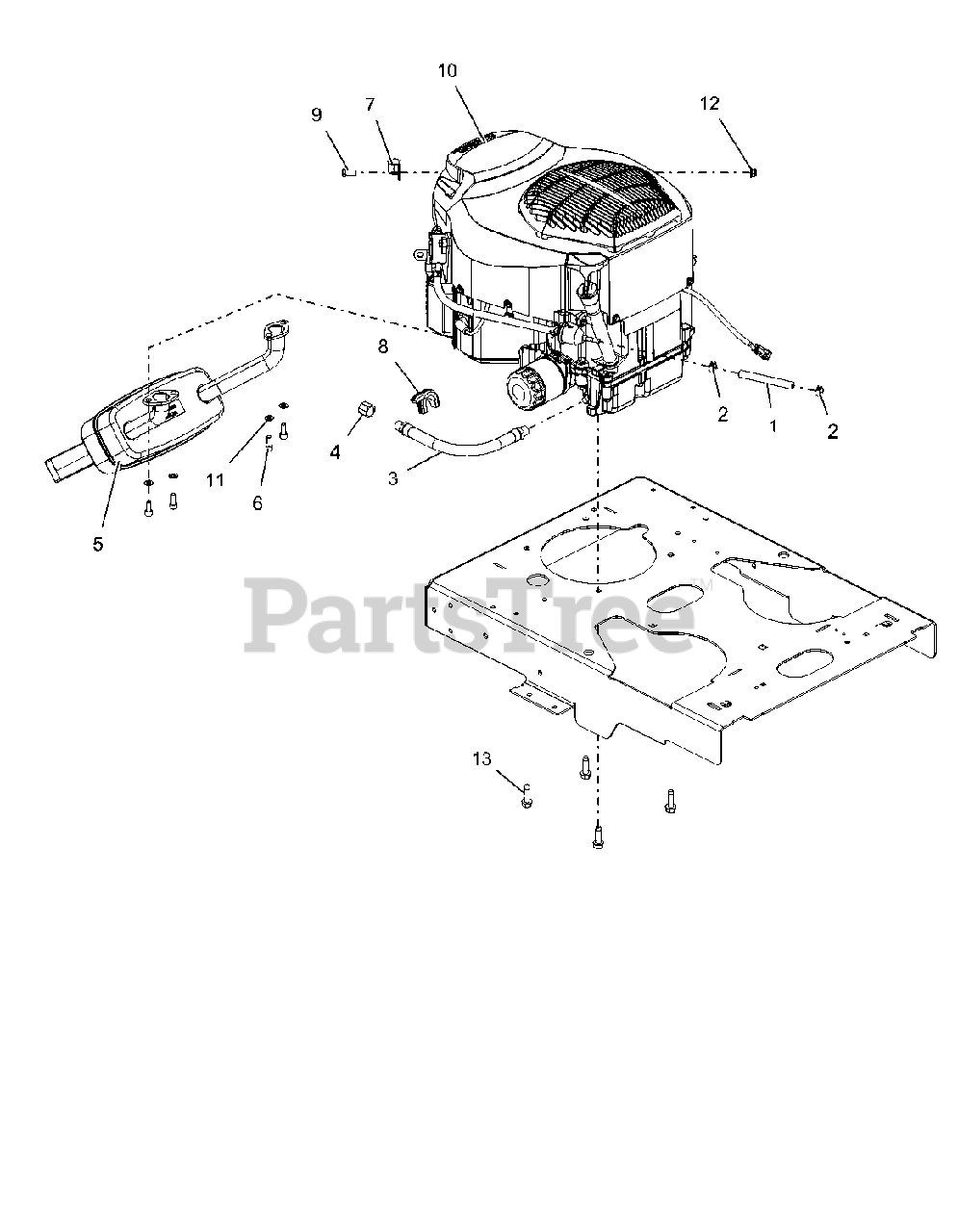

Engine - Kohler Parts Diagram

  • Title

1

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0

3

Gravely 03873100

HOSE,HYD .38-11-0K M6NO-M6N0
(Superseded to 07001829)

$19.99

$

In Stock, only 1 left!

0

4

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

In Stock, only 2 left!

0

5

Gravely 04825200

MUFFLER, KOHLER

$127.99

$

In Stock, only 3 left!

0

6

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 06900036

CLAMP, CUSHIONED STEEL .75

$6.99

$

In Stock, only 2 left!

0

8

Gravely 07500106

PROTECTOR, OIL DRAIN HOSE
(Superseded to 07500036)

$

$

Not available

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 08201104

ENGINE-KOHLER TWIN-26-PRO W/SC

$

$

Not available

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 07414700

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$3.99

$

In Stock, Qty 15

0
