991115 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 040000 - 040999) Electrical - Kohler Non - EFI Parts Diagram

Pro-Turn 48" Zero-Turn Mower

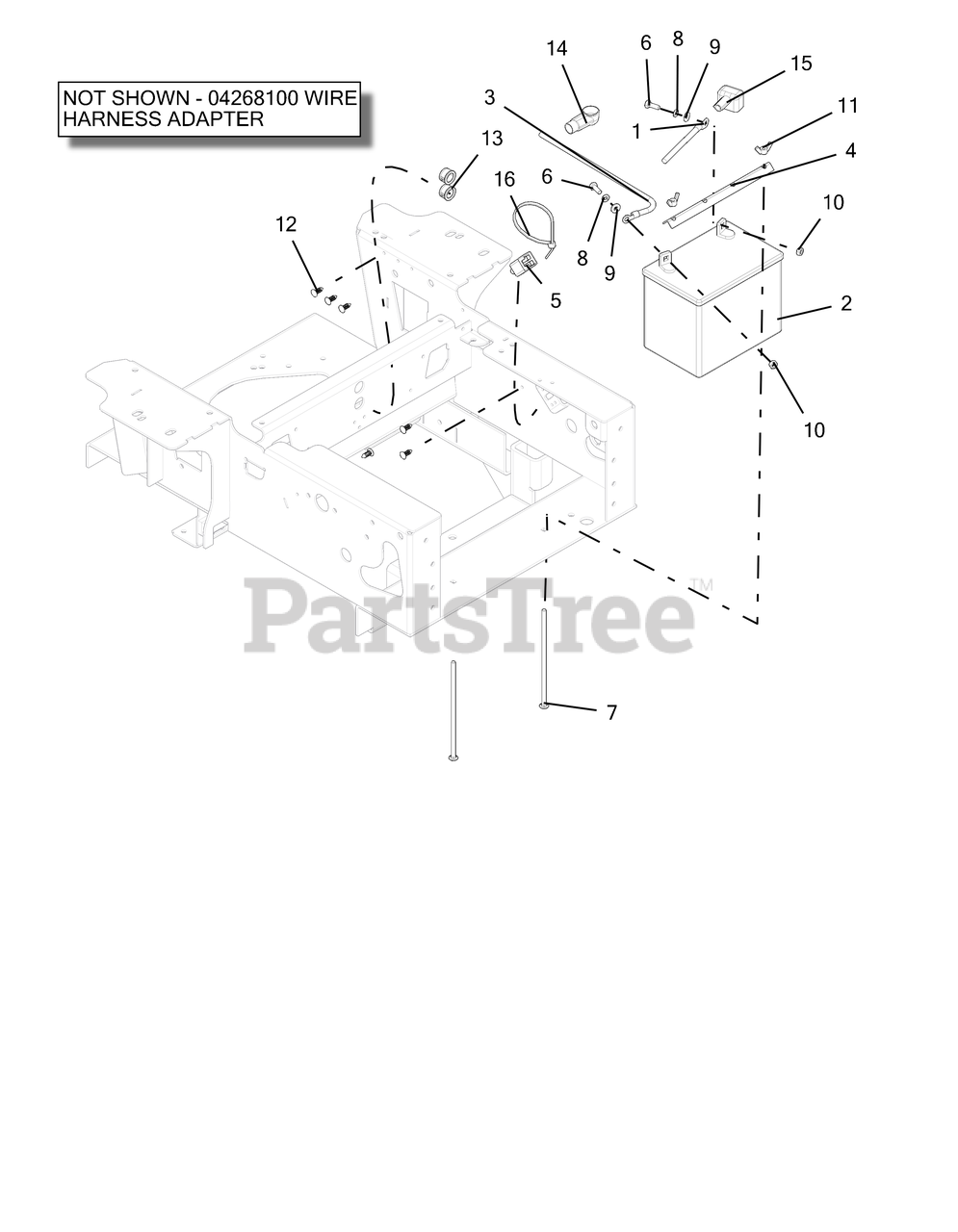

Electrical - Kohler Non - EFI Parts Diagram

  • Title

1

Gravely 04787200

CABLE, POS W/(2) 5/16 RING 30.0 LG

$32.99

$

Usually ships in 4-12 days

0

2

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

3

Gravely 03288100

CABLE, NEGATIVE BATTERY 24"

$20.99

$

In Stock, only 3 left!

0

4

Gravely 03494051

HOLD DOWN - BLK

$11.99

$

Usually ships in 4-12 days

0

5

Gravely 03834300

SWITCH, SNAP IN -N.O./N.O

$15.99

$

In Stock, only 2 left!

0

6

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

7

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 G2 YWZC
(Superseded to 06200424)

$5.49

$

In Stock, Qty 16

0

8

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

9

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

10

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

11

Gravely 06537500

NUT-LOCKING WING 1/4-20
(Superseded to 06500805)

$5.49

$

Usually ships in 4-12 days

0

12

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 5

0

13

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

14

Gravely 07500401

BOOT, .65 ID POS

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

17

Gravely 04268100

WIRE HARNESS ADAPTER
(Superseded to 05162200)

Note: NOT SHOWN, SERVICE PART

$92.99

$

Usually ships in 4-12 days

0
