991129 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 009999) Deck, Belts, Baffle, Blades And Spindles - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

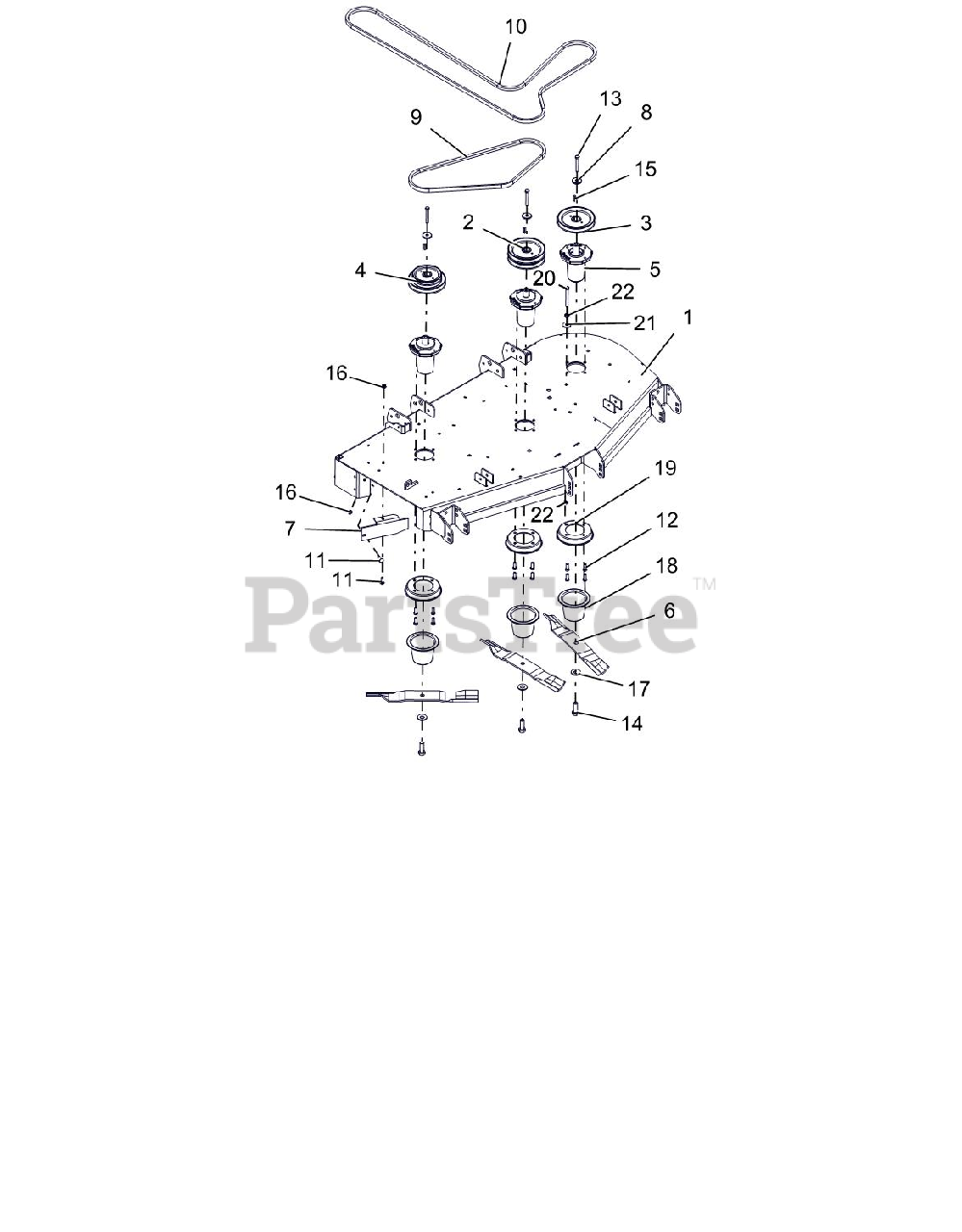

Deck, Belts, Baffle, Blades And Spindles - 52" Parts Diagram

  • Title

1

Gravely 59109600

DECK, PT152 W/SAFETY DECALS

$923.99

$

Usually ships in 4-12 days

0

2

Gravely 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

$80.99

$

In Stock, Qty 10

0

3

Gravely 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

$83.99

$

In Stock, Qty 12

0

4

Gravely 07340300

PULLEY, DBL-1"IDX6.00"&4.75"OD

$72.99

$

In Stock, Qty 6

0

5

Gravely 59225700

ASM, MAINT FREE SPINDLE
(Superseded to 58810800)

$361.99

$

In Stock, Qty 20+

0

6

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

7

Gravely 00440853

52" DISCHARGE BAFFLE - RED

$38.99

$

Usually ships in 4-12 days

0

8

Gravely 04530500

RETAINER, SHEAVE

$9.49

$

In Stock, Qty 11

0

9

Gravely 07200036

V-BELT, B-COGGED

$63.99

$

In Stock, Qty 20+

0

10

Gravely 07200706

BELT, B-SECTI0N EPDM RAW EDGE

$117.99

$

In Stock, Qty 6

0

11

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

18

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

19

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available

20

Gravely 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 8

0

22

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0
