991131 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 000101 & Above) Fuel System - Kohler - Non-CARB Parts Diagram

Pro-Turn 48" Zero-Turn Mower

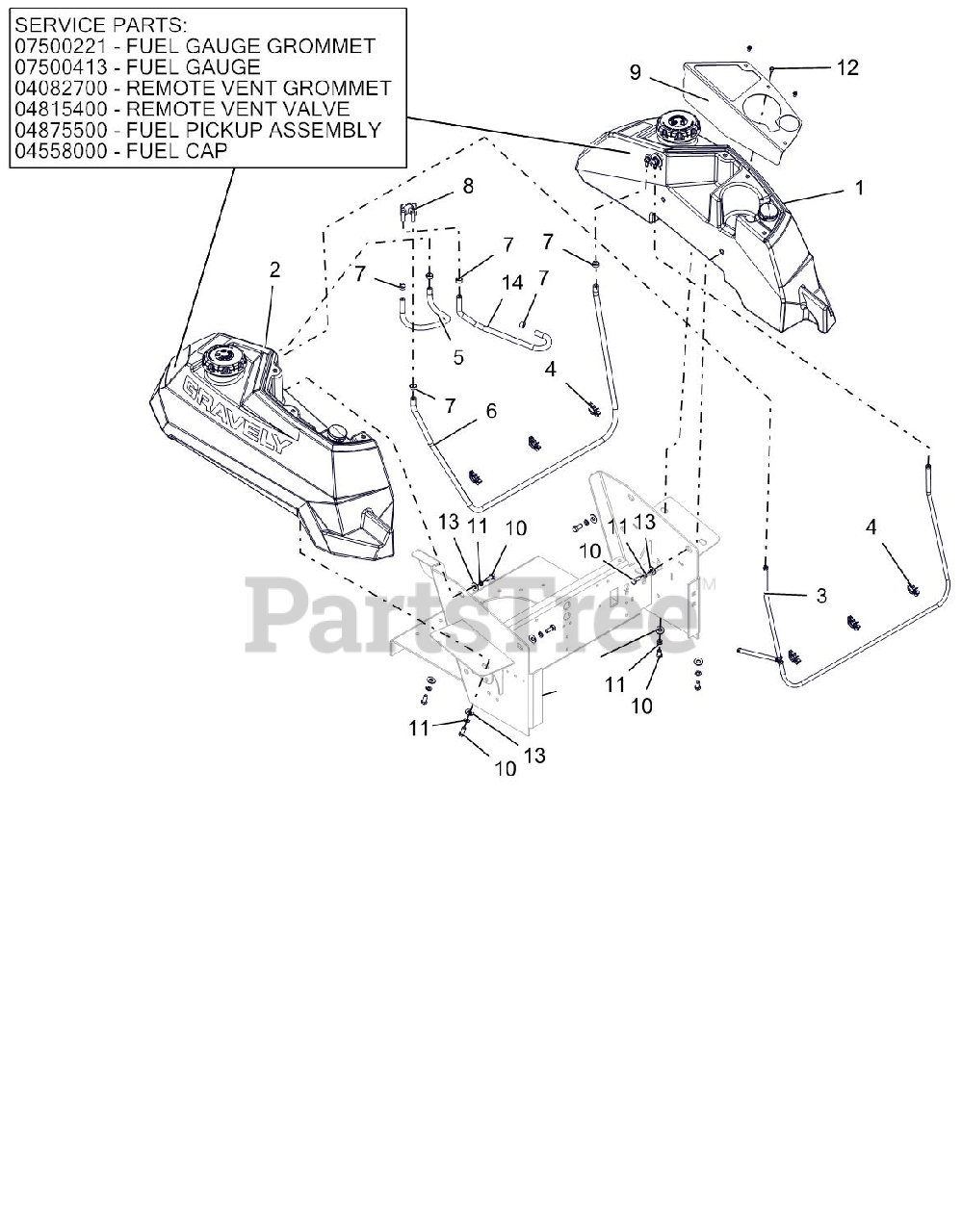

Fuel System - Kohler - Non-CARB Parts Diagram

  • Title

1

Gravely 05067500

ASM, LH - PT100 FUEL TANK

$407.99

$

Usually ships in 4-12 days

0

2

Gravely 05067600

ASM, RH - PT100 FUEL TANK

$407.99

$

Usually ships in 4-12 days

0

3

Gravely 05073700

ASM, VAPOR LINE

$35.99

$

Usually ships in 4-12 days

0

4

Gravely 00390100

WIRE, CLIP

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 03278100

HOSE, .25 LOW PERM FUEL 14.00" LG - RH TANK TO VALVE

$0.99

$

In Stock, Qty 20+

0

6

Gravely 03278100

HOSE, .25 LOW PERM FUEL 48.00" LG - LH TANK TO VALVE

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

8

Gravely 04426400

VALVE, FUEL
(Superseded to 09164300)

$37.99

$

In Stock, Qty 6

0

9

Gravely 05067453

PANEL, PT100 CUPHOLDER (RED)

$28.99

$

Usually ships in 4-12 days

0

10

Gravely 05947000

BOLT, HEX 0.313-18X0.75 GR5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 9

0

13

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

14

Gravely 03278100

.25 LOW-PERM GAS HOSE 16.00" LG - VALVE TO ENGINE

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07500221

FUEL GAUGE GROMMET

Note: SERVICE PART

$5.99

$

In Stock, Qty 15

0

16

Gravely 07500413

FUEL GAUGE

Note: SERVICE PART

$

$

Not available

17

Gravely 04082700

REMOTE VENT GROMMET

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

18

Gravely 04815400

REMOTE VENT VALVE

Note: SERVICE PART

$19.99

$

In Stock, only 4 left!

0

19

Gravely 04875500

FUEL PICKUP ASSEMBLY

Note: SERVICE PART

$14.99

$

In Stock, only 1 left!

0

20

Gravely 04558000

FUEL CAP
(Superseded to 09190300)

Note: SERVICE PART

$33.99

$

Usually ships in 4-12 days

0
