991132 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler ZT (SN: 100000 & Above) Seat Assembly Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler ZT

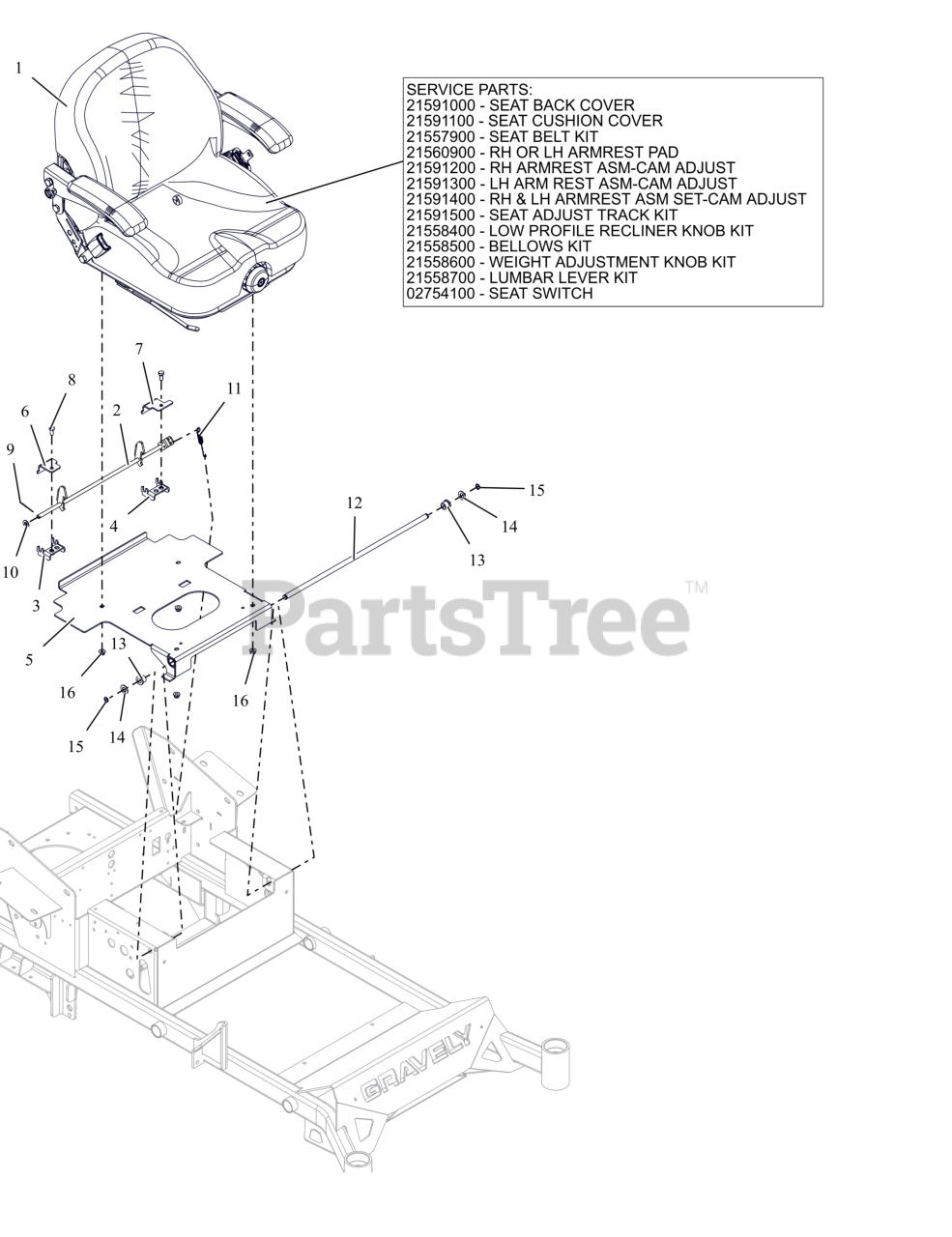

Seat Assembly Parts Diagram

  • Title

1

Gravely 09680600

SEAT- FULL SUSPENSION

$963.99

$

Usually ships in 4-12 days

0

1

Gravely 21591000

SEAT BACK COVER

Note: Service Part Component

$336.99

$

Usually ships in 4-12 days

0

1

Gravely 21591100

SEAT CUSHION COVER

Note: Service Part Component

$201.99

$

Usually ships in 4-12 days

0

1

Gravely 21557900

KIT, SEAT BELT

Note: Service Part Kit

$93.99

$

Usually ships in 4-12 days

0

1

Gravely 21560900

PAD, ARMREST RH OR LH (HARD)

Note: Service Part Component

$41.99

$

Usually ships in 4-12 days

0

1

Gravely 21591200

RH ARMREST ASM - CAM ADJUST

Note: Service Part Assembly

$81.99

$

Usually ships in 0 days

0

1

Gravely 21591300

LH ARM REST ASM - CAM ADJUST

Note: Service Part Assembly

$81.99

$

Usually ships in 0 days

0

1

Gravely 21591400

RH & LH ARMREST ASM SET - CAM ADJUST

Note: Service Part Assembly

$

$

Currently unavailable

1

Gravely 21591500

SETA ADJUST TRACK KIT

Note: Service Part Component

$109.99

$

Usually ships in 4-12 days

0

1

Gravely 21558400

KIT, LOW PROFILE RECLINER KNOB

Note: Service Part Kit

$44.99

$

Usually ships in 4-12 days

0

1

Gravely 21558500

KIT, BELLOWS

Note: Service Part Kit

$84.99

$

Usually ships in 4-12 days

0

1

Gravely 21558600

KIT, WEIGHT ADJUSTMENT KNOB

Note: Service Part Kit

$42.99

$

Usually ships in 4-12 days

0

1

Gravely 21558700

KIT, LUMBAR LEVER

Note: Service Part Kit

$35.99

$

Usually ships in 4-12 days

0

1

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: Service Part Component

$9.99

$

In Stock, Qty 20+

0

2

Gravely 04975651

PT100 SEAT LATCH WLDMT - BLACK

$32.99

$

Usually ships in 4-12 days

0

3

Gravely 03930451

PT100 RH SEAT LATCH MNT WMT-BL

$23.99

$

Usually ships in 4-12 days

0

4

Gravely 03930551

PT100 LH SEAT LATCH MNT WMT-BL

$

$

Not available

5

Gravely 05012251

PT100 SEAT PLATE WLDMT - BLACK

$87.99

$

Usually ships in 4-12 days

0

6

Gravely 03917951

PT100 RH TOP SEAT LATCH MNT-BL

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 03918551

PT100 LH TOP SEAT LATCH MNT-BL

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06700227

PIN, CTR .09X.750 EXTPRSQCT ZC120

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 20+

0

12

Gravely 03837800

SHAFT, PT100 SEAT PIVOT

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 9

0

15

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, only 2 left!

0

16

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0
