991133 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 000101 - 009999) Control Panel - Kohler Non-EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

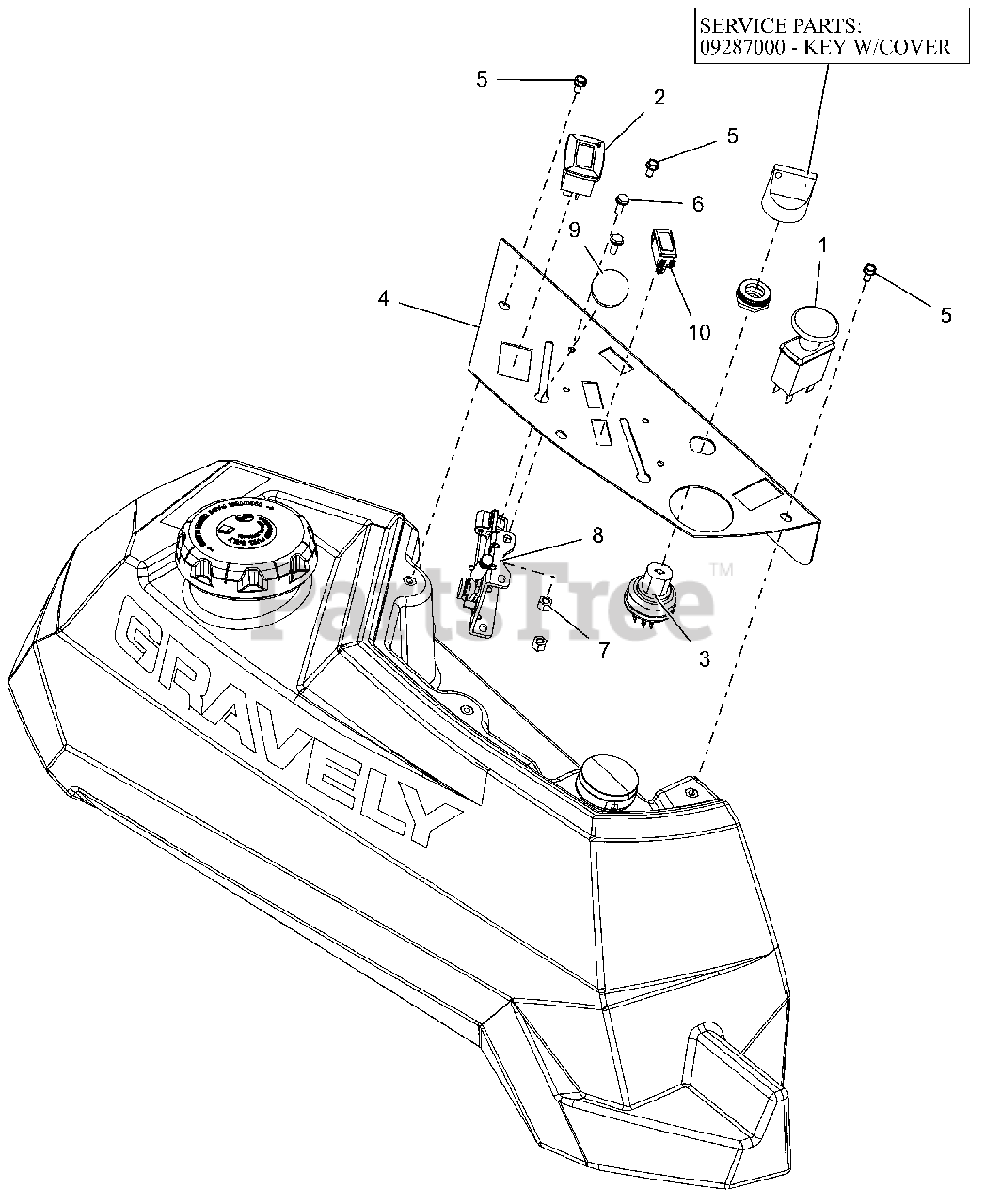

Control Panel - Kohler Non-EFI Parts Diagram

  • Title

1

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

2

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, only 4 left!

0

3

Gravely 04331600

SWITCH, IGNITION

$47.99

$

In Stock, Qty 20+

0

4

Gravely 05067053

PT100 CONTROL PANEL - RED

$31.99

$

Usually ships in 4-12 days

0

5

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$3.49

$

In Stock, Qty 20+

0

6

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06900638

CABLE, PRO-CONTROL 31.50"

Note: CAN BE USED AS CHOKE OR THROTTLE - CHECK LENGTH

$41.99

$

Usually ships in 4-12 days

0

8

Gravely 06900631

CABLE, PRO-CTRL 35.50"

Note: CAN BE USED AS CHOKE OR THROTTLE - CHECK LENGTH

$50.99

$

In Stock, only 1 left!

0

9

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$12.99

$

In Stock, only 2 left!

0

10

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

11

Gravely 09287000

KEY, W/ SHIELD

Note: SERVICE PART

$17.99

$

In Stock, Qty 20+

0
