991133 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 090000 - 091999) Deck, Belts, Baffles, Blades and Spindles - 60" Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

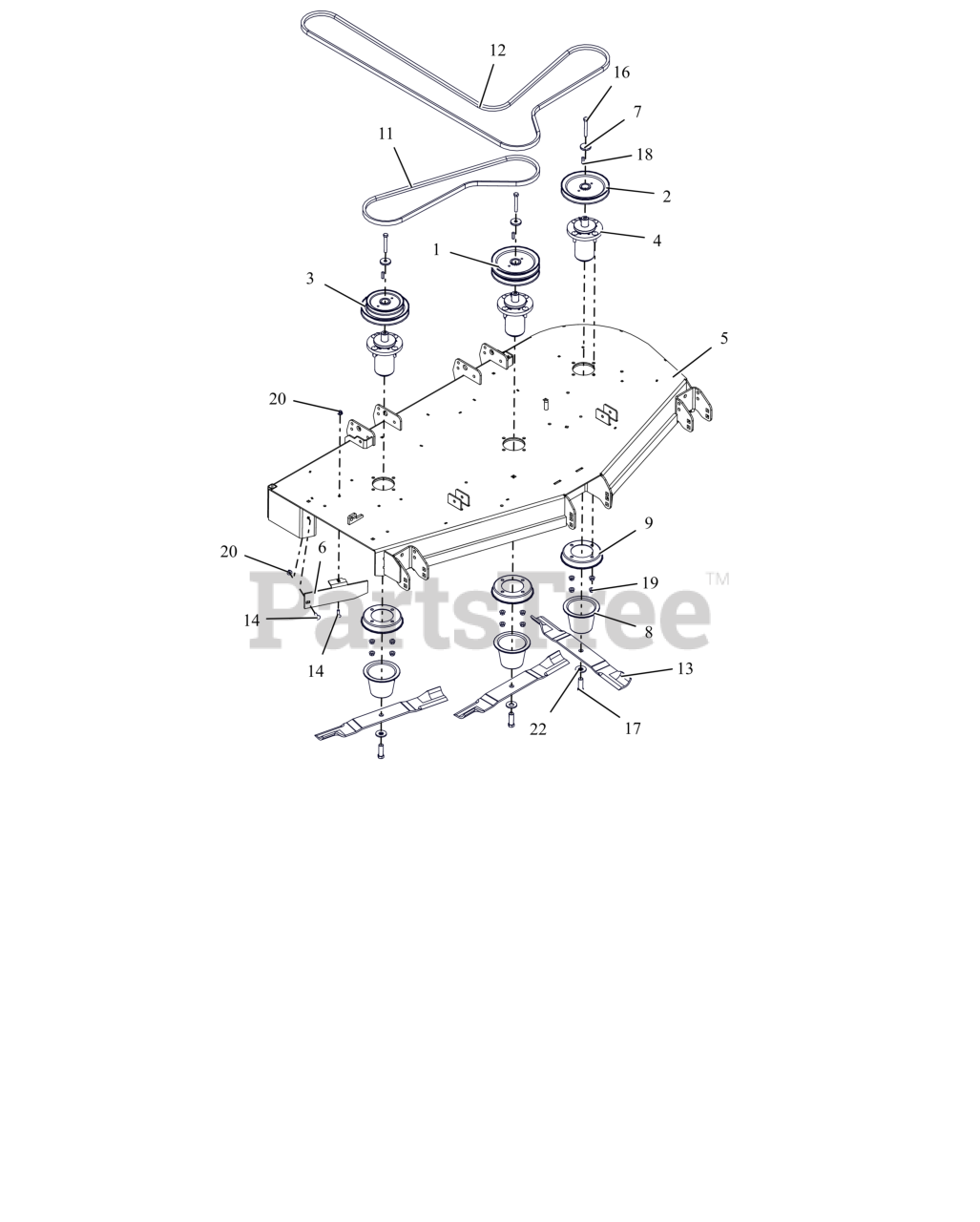

Deck, Belts, Baffles, Blades and Spindles - 60" Parts Diagram

  • Title

1

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$93.99

$

In Stock, Qty 20+

0

2

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$84.99

$

In Stock, Qty 18

0

3

Gravely 07340400

PULLEY, DBL-1"IDX6.75"&5.25"OD

$72.99

$

In Stock, Qty 18

0

4

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$361.99

$

In Stock, Qty 20+

0

5

Gravely 59117200

WLDMT, PT160 SIDE DISCH DECK (RED)

$1055.99

$

Usually ships in 4-12 days

0

6

Gravely 00374153

60" DISCHARGE BAFFLE - RED

$29.99

$

In Stock, only 4 left!

0

7

Gravely 04530500

RETAINER, SHEAVE

$9.49

$

In Stock, Qty 16

0

8

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

9

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available

11

Gravely 07200038

V-BELT, B-COGGED

$68.99

$

In Stock, Qty 20+

0

12

Gravely 07200712

BELT, B-SECTION EPDM RAW EDGE

$127.99

$

Usually ships in 4-12 days

0

13

Gravely 09081200

BLADE, MOWER (20.50")

$29.99

$

In Stock, Qty 20+

0

14

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

16

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.99

$

In Stock, Qty 20+

0

18

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

19

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0
