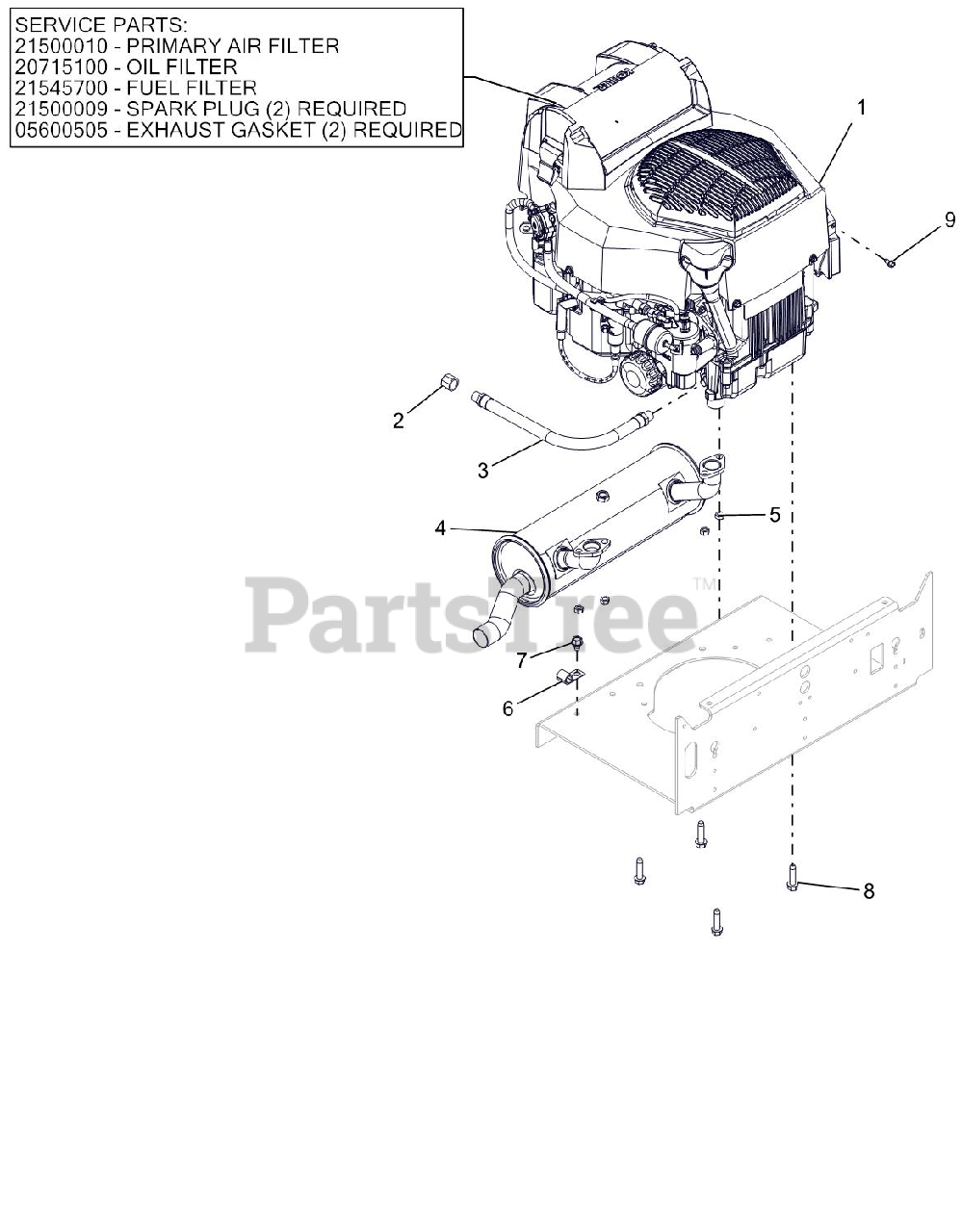

991134 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 000101 & Above) Engine - Kohler EZT725 EFI Parts Diagram

Pro-Turn 48" Zero-Turn Mower

Engine - Kohler EZT725 EFI Parts Diagram

  • Title

1

Gravely 08201228

ENGINE, KOHLER EZT725 EFI

$

$

Not available

1

Gravely 21500010

PRIMARY AIR FILTER

Note: SERVICE PART

$28.99

$

In Stock, only 1 left!

0

1

Gravely 20715100

OIL FILTER

Note: SERVICE PART

$17.99

$

In Stock, only 1 left!

0

1

Gravely 21545700

FUEL FILTER
(Superseded to 21539500)

Note: SERVICE PART

$12.99

$

In Stock, Qty 20+

0

1

Gravely 21500009

SPARK PLUG

Note: (2 REQUIRED) SERVICE PART

$10.99

$

Usually ships in 4-12 days

0

1

Gravely 05600505

EXHAUST GASKET

Note: (2 REQUIRED) SERVICE PART

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

4

Gravely 05018400

MUFFLER,

$135.99

$

Usually ships in 4-12 days

0

5

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

6

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

8

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
