991144 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Drive Controls Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki FX

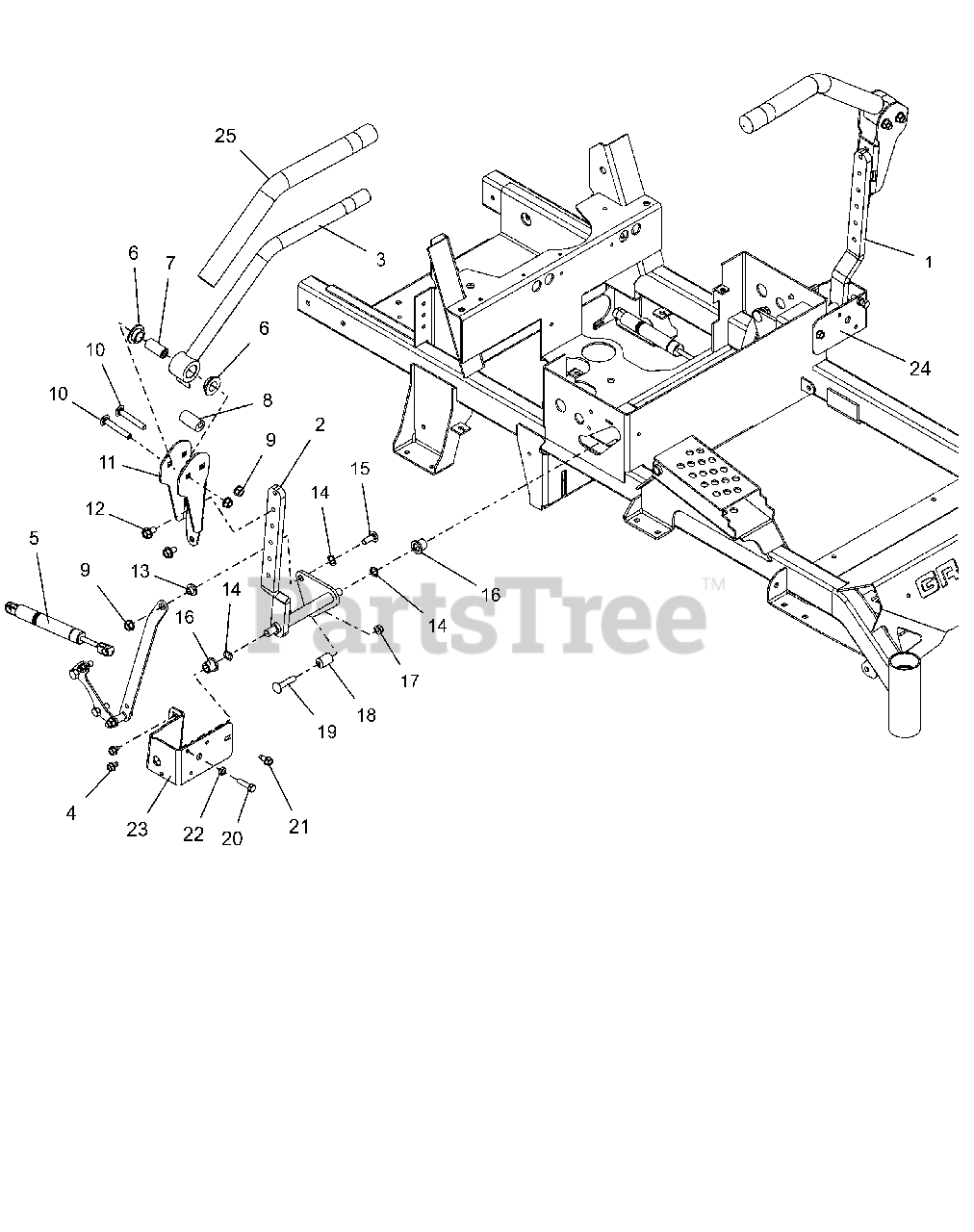

Drive Controls Parts Diagram

  • Title

1

Gravely 05152400

WLDMT, LH COMPACT CONTROL ARM

$199.99

$

Usually ships in 4-12 days

0

2

Gravely 05152500

WLDMT, RH COMPACT CONTROL ARM

$83.99

$

Usually ships in 4-12 days

0

3

Gravely 59115100

KIT, CONTROL HANDLES

$124.99

$

Usually ships in 4-12 days

0

4

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

5

Gravely 03914200

DAMPER, CONTROL

$59.99

$

Usually ships in 4-12 days

0

6

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 04413600

SPACER, STEERING ARM

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 05501223

BSHG, ECCENTRIC.406X.875X1.625

$5.49

$

In Stock, only 2 left!

0

9

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

11

Gravely 05068751

ADJ UPPER CONTROL ARM BRKT-BLK

$40.99

$

Usually ships in 4-12 days

0

12

Gravely 07001707

BLT, SCRHFWH .375-16X.625 YWZC
(Superseded to 07001716)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

14

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

16

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$5.49

$

In Stock, Qty 20+

0

17

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09235700

ECCENTRIC

$5.49

$

Usually ships in 4-12 days

0

19

Gravely 06200329

BTL,RHSSN .375-16 X 1.75 G5 ZCC

$3.99

$

In Stock, Qty 8

0

20

Gravely 05901803

BLT, HEX .31-18X1.25 G5 ZCC

$2.99

$

In Stock, Qty 6

0

21

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.99

$

In Stock, only 2 left!

0

22

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05152153

STOP, RH COMPACT DRIVE CONTROL

$89.99

$

Usually ships in 4-12 days

0

24

Gravely 05152253

WLDMT, COMPACT PRO FRAME

$89.99

$

Usually ships in 4-12 days

0

25

Gravely 04383600

GRIP, HANDLEBAR

$36.99

$

In Stock, Qty 6

0
