991144 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Fuel System Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki FX

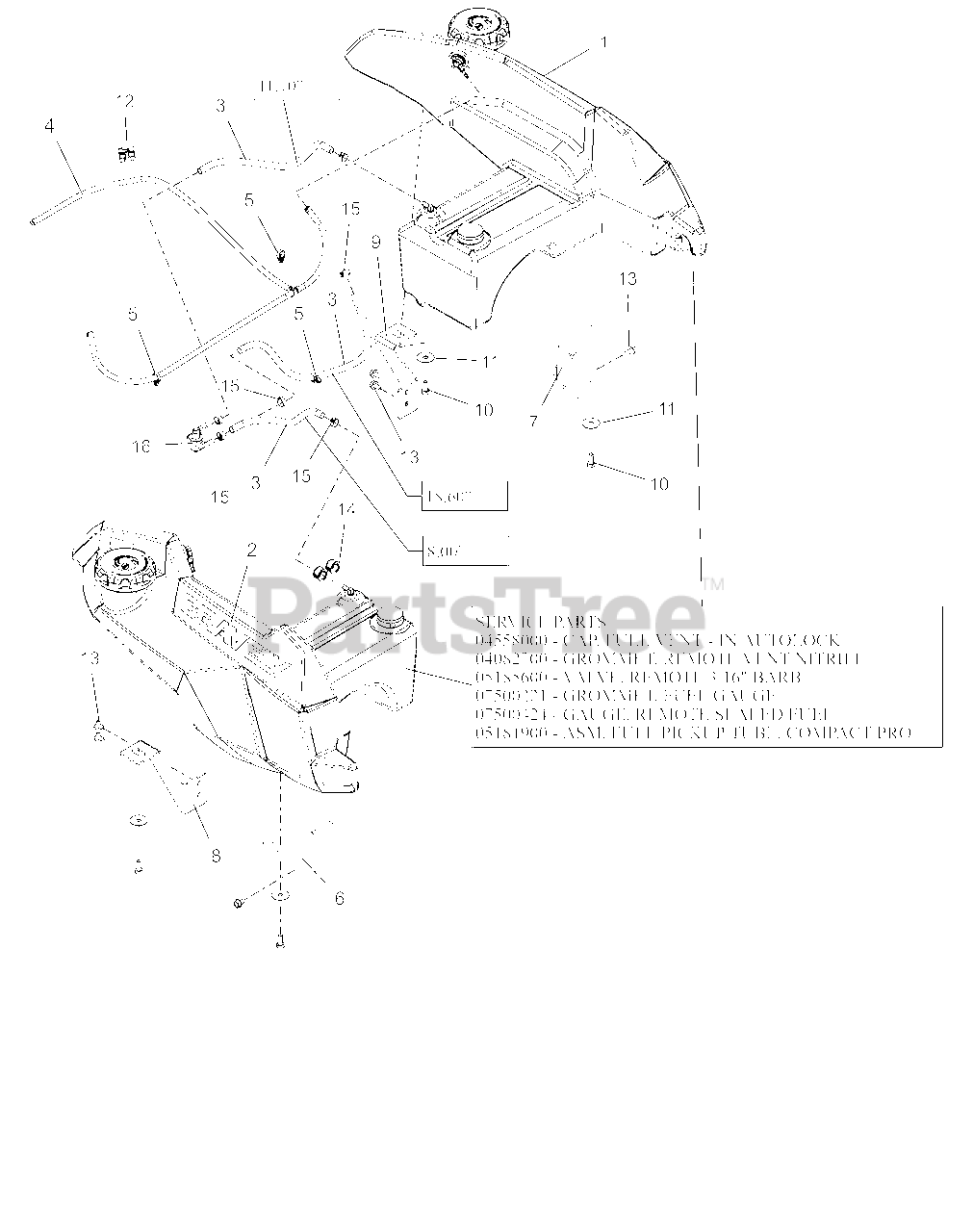

Fuel System Parts Diagram

  • Title

1

Gravely 05186600

ASM, COMPACT PRO FUEL TANK

$589.99

$

Usually ships in 4-12 days

0

2

Gravely 05196500

TANK, RH COMPACT PRO FUEL

$339.99

$

Usually ships in 4-12 days

0

2

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

Note: SERVICE PART

$33.99

$

Usually ships in 4-12 days

0

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

2

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: SERVICE PART

$13.99

$

In Stock, only 2 left!

0

2

Gravely 07500221

GROMMET, FUEL GAUGE

Note: SERVICE PART

$5.99

$

In Stock, Qty 13

0

2

Gravely 07500424

GAGE, FUEL

Note: SERVICE PART

$

$

Not available

2

Gravely 05181900

ASM, COMPACT PRO FUEL PICKUP

Note: SERVICE PART

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05193500

ASM, COMPACT PRO VAPOR LINE

$39.99

$

Usually ships in 4-12 days

0

5

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

6

Gravely 05186853

BRKT, RH FRONT MTG

$

$

Not available

7

Gravely 05186953

BRKT, LH FRONT MTG

$44.99

$

Usually ships in 4-12 days

0

8

Gravely 05187053

BRKT, RH REAR MTG

$41.99

$

Usually ships in 4-12 days

0

9

Gravely 05187153

BRKT, LH REAR MTG

$

$

Not available

10

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

11

Gravely 06401105

WSHR, FLT .347X1.254X.048 ZCC

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

15

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 8

0

16

Gravely 04426400

VALVE, FUEL
(Superseded to 09164300)

$37.99

$

In Stock, Qty 6

0
