991144 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Seat Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki FX

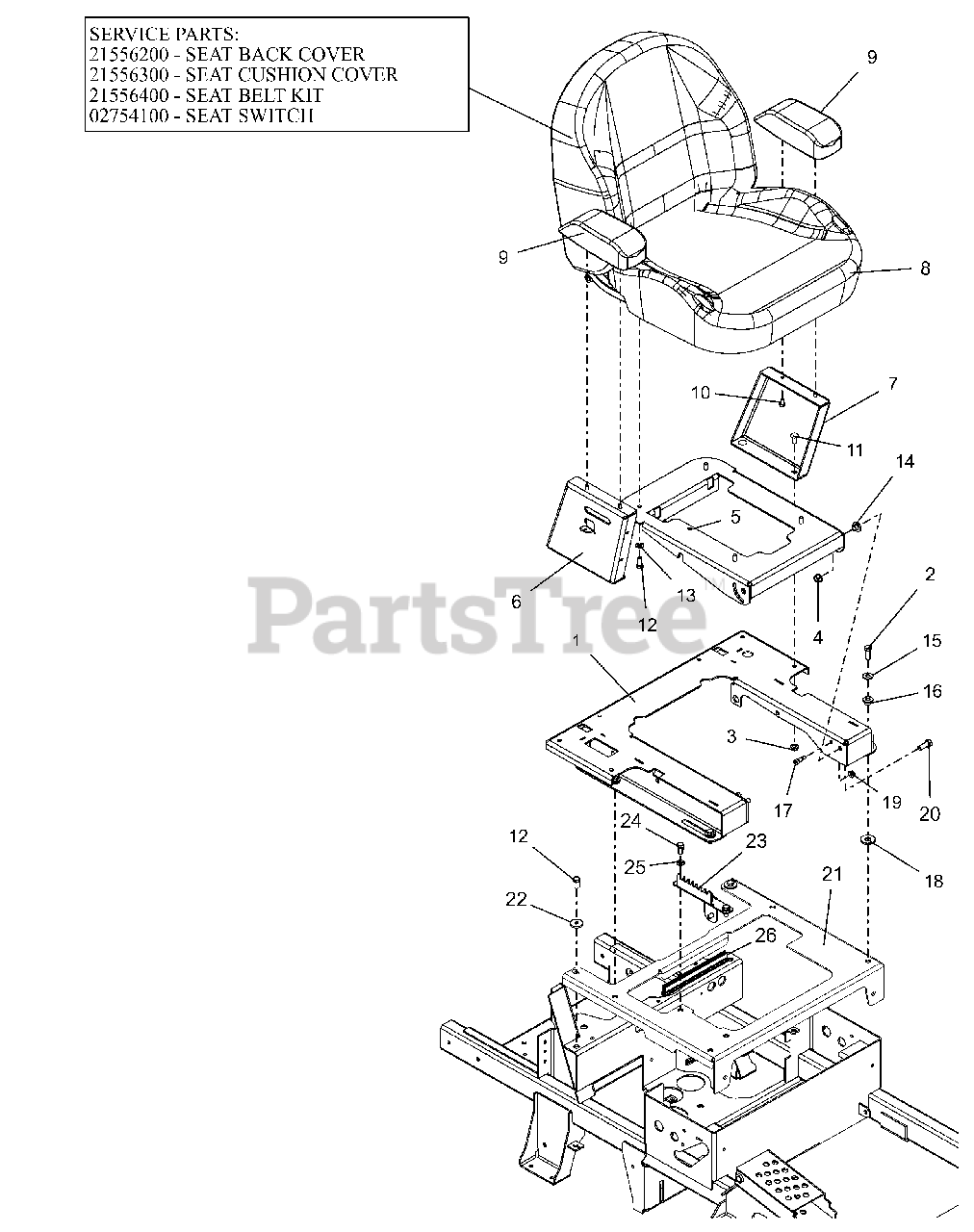

Seat Parts Diagram

  • Title

1

Gravely 05164753

WLDMT, SEAT MOUNTING

$230.99

$

Usually ships in 4-12 days

0

2

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 6

0

3

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05164853

WLDMT, SEAT PLATE

$93.99

$

Usually ships in 4-12 days

0

6

Gravely 05171553

SUPPORT, RH ARMREST

$55.99

$

Usually ships in 4-12 days

0

7

Gravely 05171653

SUPPORT, LH ARMREST

$62.99

$

Usually ships in 4-12 days

0

8

Gravely 05184600

SEAT, NON-SUSPENTION

$527.99

$

Usually ships in 4-12 days

0

8

Gravely 21556200

COVER, SEAT BACK

Note: SERVICE PART

$125.99

$

Usually ships in 4-12 days

0

8

Gravely 21556300

COVER, SEAT CUSHION

Note: SERVICE PART

$118.99

$

Usually ships in 4-12 days

0

8

Gravely 21556400

KIT, SEAT BELT

Note: SERVICE PART

$99.99

$

Usually ships in 4-12 days

0

8

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.99

$

In Stock, Qty 7

0

9

Gravely 05184700

PAD, ARMREST

$118.99

$

Usually ships in 4-12 days

0

10

Gravely 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, only 3 left!

0

11

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

16

Gravely 05501331

BSHG-FLG, .325X.500X.443X.875

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 07070104

BLT-SHLDR .313X.500X.250-20

$

$

Currently unavailable

18

Gravely 06401025

WSHR-FL-DELRIN .505X1.250X.125

$

$

Not available

19

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 8

0

20

Gravely 05901617

BLT, HEX .38-16X1.00 G5 CKF

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 05174953

WLDMT, SEAT MTG PLATE

$

$

Not available

22

Gravely 06401104

WSHR, FLT .340X1.125X.135 ZCC

$4.99

$

In Stock, Qty 12

0

23

Gravely 05150951

BRKT, COMPACT PRO SEAT ADJUST

$31.99

$

Usually ships in 4-12 days

0

24

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

26

Gravely 05197800

HOLDDOWN, FUEL TANK

$18.99

$

Usually ships in 4-12 days

0
