991145 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Casters And Wheels - 44" Parts Diagram

Compact-Pro 44" Zero-Turn Mower, Kawasaki FX

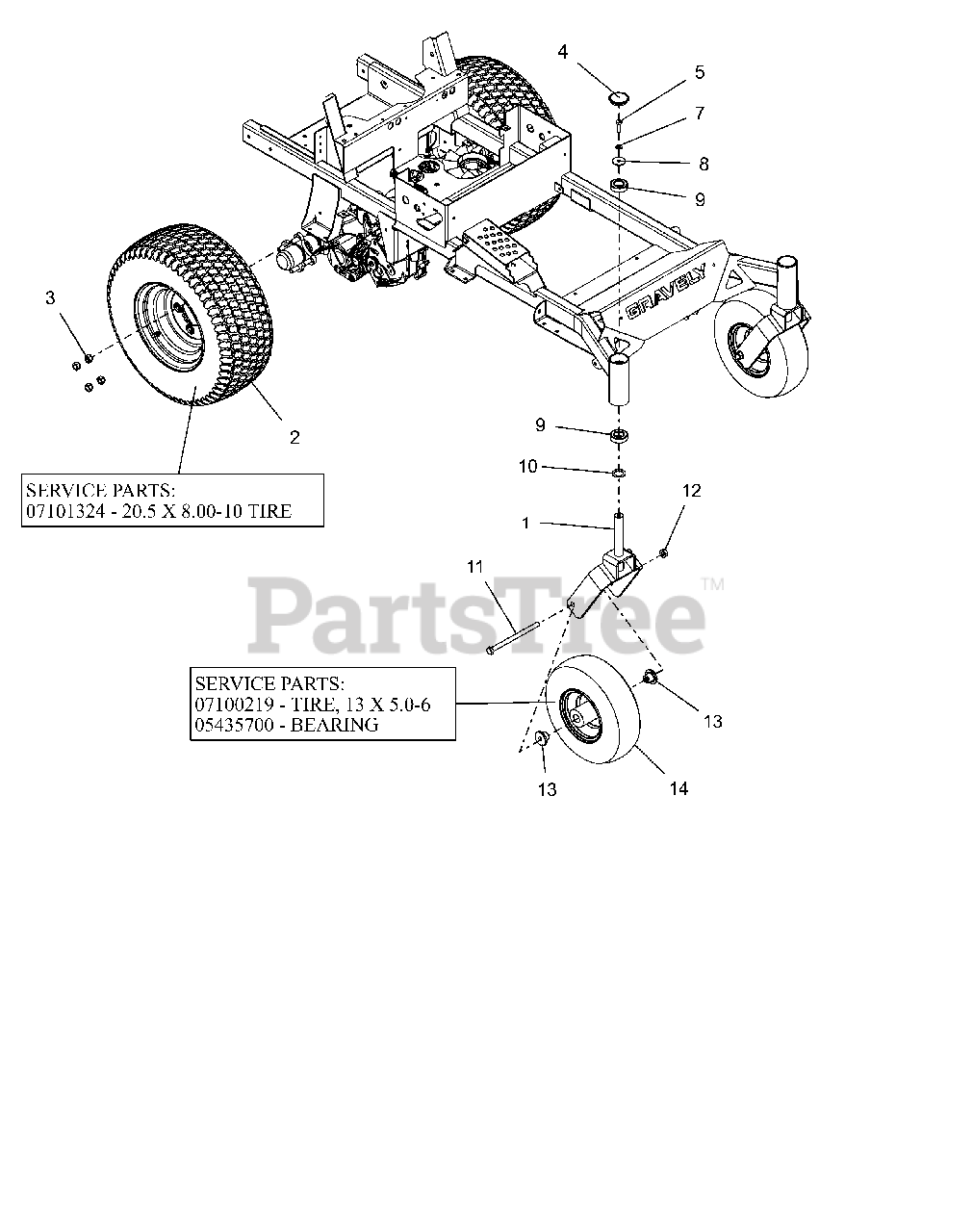

Casters And Wheels - 44" Parts Diagram

  • Title

1

Gravely 05166253

WLDMT, COMPACT PRO CASTER FORK

$232.99

$

Usually ships in 4-12 days

0

2

Gravely 07101310

ASM, WHL/TIRE 20.5X8-10

$205.99

$

Usually ships in 4-12 days

0

2

Gravely 07101324

TIRE, 20.5 X 8.00-10

Note: SERVICE PART

$170.99

$

Usually ships in 4-12 days

0

3

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04792200

CAP, DUST

$11.99

$

In Stock, Qty 20+

0

5

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 7

0

7

Gravely 06300120

WSHR, LK-HVY .375X.115 ZCC

$3.49

$

In Stock, Qty 10

0

8

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 20+

0

9

Gravely 05400722

BRG,BALL 1.00X2.00X.563(1641)

$17.99

$

In Stock, Qty 15

0

10

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05902023

BLT, HEX .50-13X7.50 G5 ZCC

$7.99

$

In Stock, only 1 left!

0

12

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.99

$

In Stock, Qty 20+

0

13

Gravely 00675300

SPACER, FRONT WHEEL

$6.99

$

In Stock, Qty 11

0

14

Gravely 07101111

ASM, WHL/TIRE 13X5.00-6

$113.99

$

Usually ships in 4-12 days

0

14

Gravely 07100219

TIRE, 13X5.00-6
(Superseded to 07101609)

Note: SERVICE PART

$62.99

$

Usually ships in 4-12 days

0

14

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: SERVICE PART

$22.99

$

In Stock, Qty 20+

0
