991145 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Idlers And Sheaves - 44" Parts Diagram

Compact-Pro 44" Zero-Turn Mower, Kawasaki FX

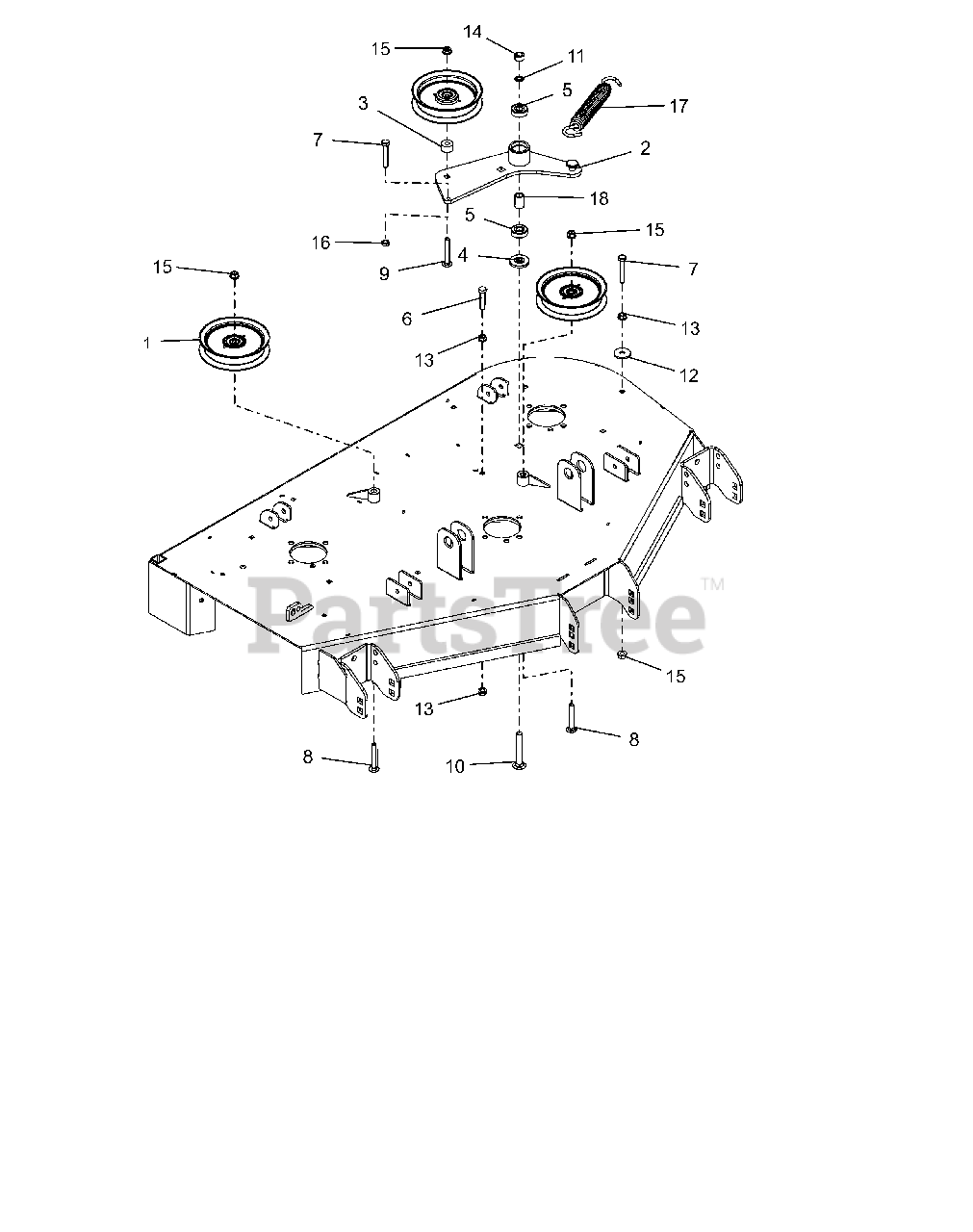

Idlers And Sheaves - 44" Parts Diagram

  • Title

1

Gravely 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$39.99

$

In Stock, Qty 20+

0

2

Gravely 05165351

WLDMT, IDLER ARM

$140.99

$

Usually ships in 4-12 days

0

3

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 4 left!

0

4

Gravely 04714600

SPACER, IDLER ARM

$4.99

$

In Stock, Qty 20+

0

5

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

6

Gravely 05901612

BLT, HEX .38-16X1.75F G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06200234

BLT,RHSN .38-16X2.50 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

10

Gravely 06200339

BTL,RHSSN .500-13 X 3.25 G5 ZCC

$3.99

$

In Stock, only 3 left!

0

11

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, Qty 5

0

13

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 18

0

14

Gravely 06500827

NUT,LK-CTR .50-13 GA ZCC

$3.99

$

In Stock, only 3 left!

0

15

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 9

0

17

Gravely 08300708

SPRING, EXTENSION

$18.99

$

In Stock, only 2 left!

0

18

Gravely 09357700

SPACER .510 X .75 X 1.1485

$3.99

$

In Stock, Qty 7

0
