991152 (ZT HD 48) - Gravely 48" Zero-Turn Mower, 25hp Kohler KT (SN: 000324 - 014999) Control Panel - Kohler Parts Diagram

48" Zero-Turn Mower, 25hp Kohler KT

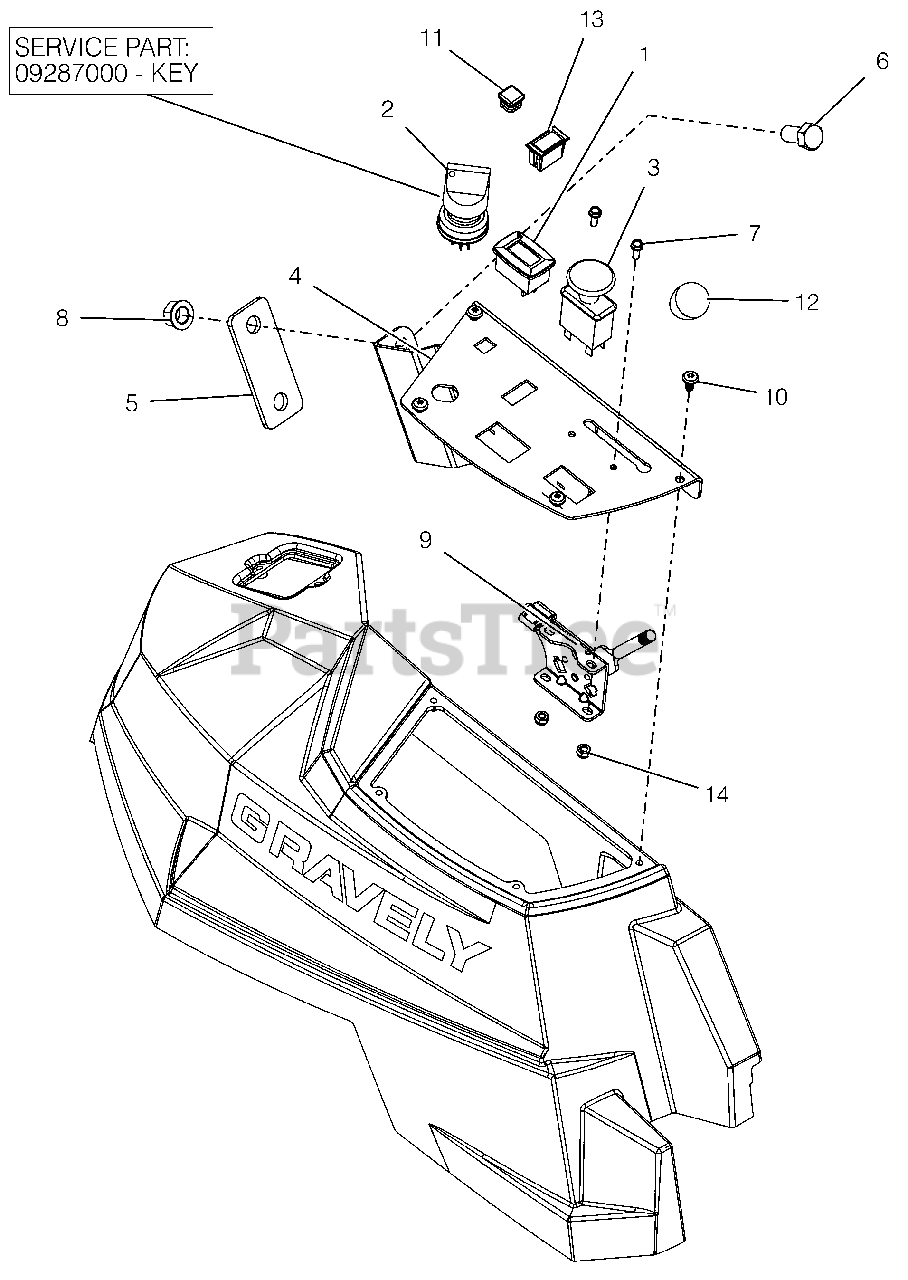

Control Panel - Kohler Parts Diagram

  • Title

1

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

2

Gravely 04331700

SWITCH, IGNITION

$40.99

$

In Stock, Qty 11

0

2

Gravely 09287000

KEY, W/ SHIELD

Note: SERVICE PART

$15.99

$

In Stock, Qty 20+

0

3

Gravely 01545600

SWITCH, CLUTCH

$23.99

$

In Stock, Qty 19

0

4

Gravely 05077053

PANEL, HD CONTROL

$102.99

$

Usually ships in 4-12 days

0

5

Gravely 05117453

PLATE, CONTROL PANEL SPACER

$4.49

$

Usually ships in 4-12 days

0

6

Gravely 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

7

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06900619

CABLE, PRO THROTTLE CONTROL

$39.99

$

In Stock, only 1 left!

0

10

Gravely 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07500123

PLUG, 5/8" SQ BLACK (14-20GA)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, Qty 5

0

13

Gravely 09003300

SWITCH,BLANK

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0
