991152 (ZT HD 48) - Gravely 48" Zero-Turn Mower, 25hp Kohler KT (SN: 040000 & Above) Engine - Kohler KT740 Parts Diagram

48" Zero-Turn Mower, 25hp Kohler KT

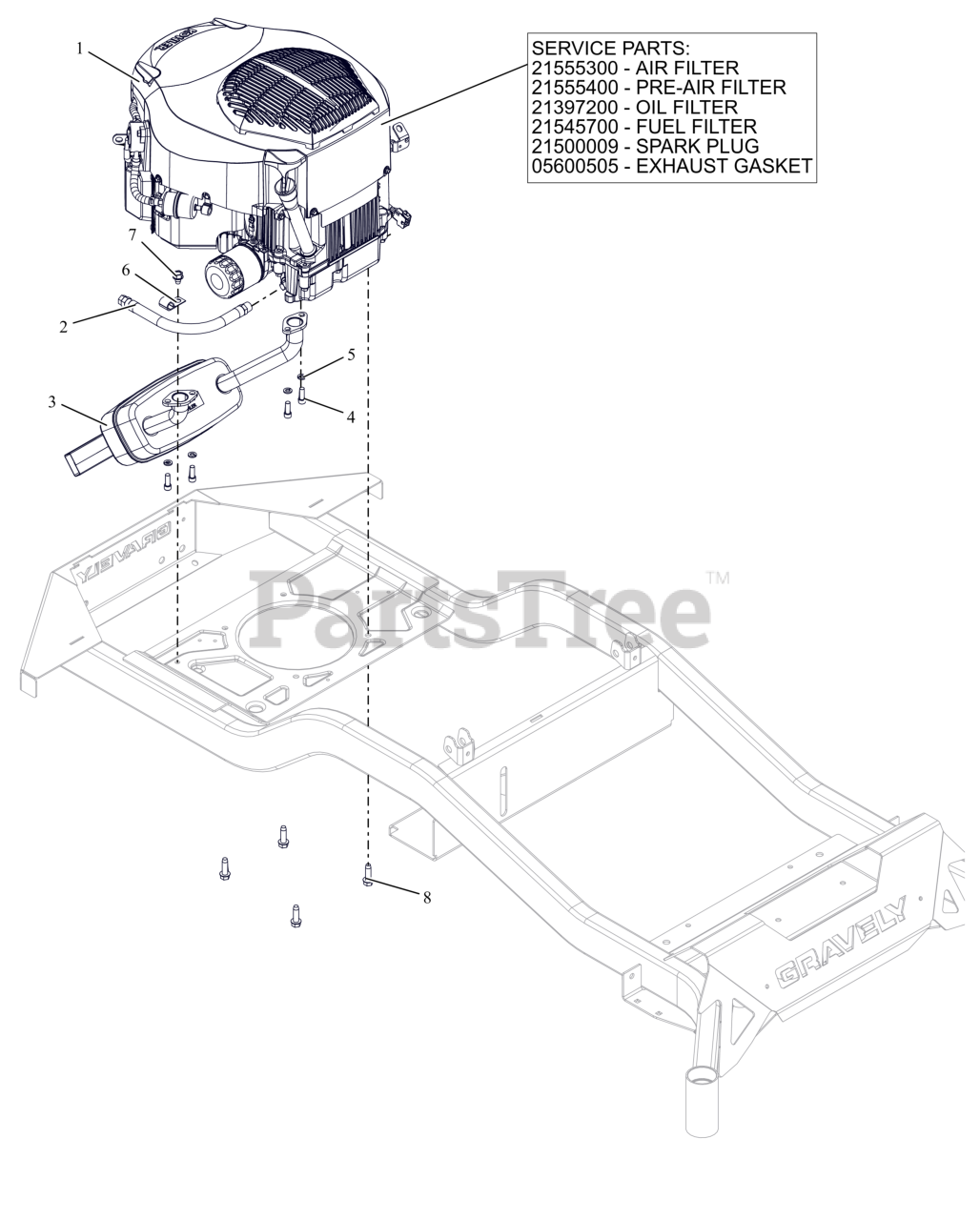

Engine - Kohler KT740 Parts Diagram

  • Title

1

Gravely 08201310

ENGINE, KOHLER - KT740

$

$

Currently unavailable

1

Gravely 21555300

AIR FILTER, KOHLER

Note: Component Service Part

$26.99

$

In Stock, Qty 20+

0

1

Gravely 21555400

PRE CLEANER, KOHLER

Note: Component Service Part

$6.99

$

In Stock, Qty 16

0

1

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: Component Service Part

$17.99

$

Usually ships in 4-12 days

0

1

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

Note: Component Service Part

$12.99

$

In Stock, Qty 20+

0

1

Gravely 21500009

PLUG, SPARK KOHLER

Note: Component Service Part

$10.99

$

Usually ships in 4-12 days

0

1

Gravely 05600505

GASKET, MUFFLER KOHLER TWIN

Note: Component Service Part

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 07001829

HOSE, OIL DRAIN

$17.99

$

In Stock, only 1 left!

0

3

Gravely 04825200

MUFFLER, KOHLER

$110.99

$

Usually ships in 4-12 days

0

4

Gravely 05901839

SCR, SKH .312-18X.875 GR8 ZCC

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, only 4 left!

0

8

Gravely 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, only 2 left!

0
