991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 000101 - 000103) Deck Lift - RH Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

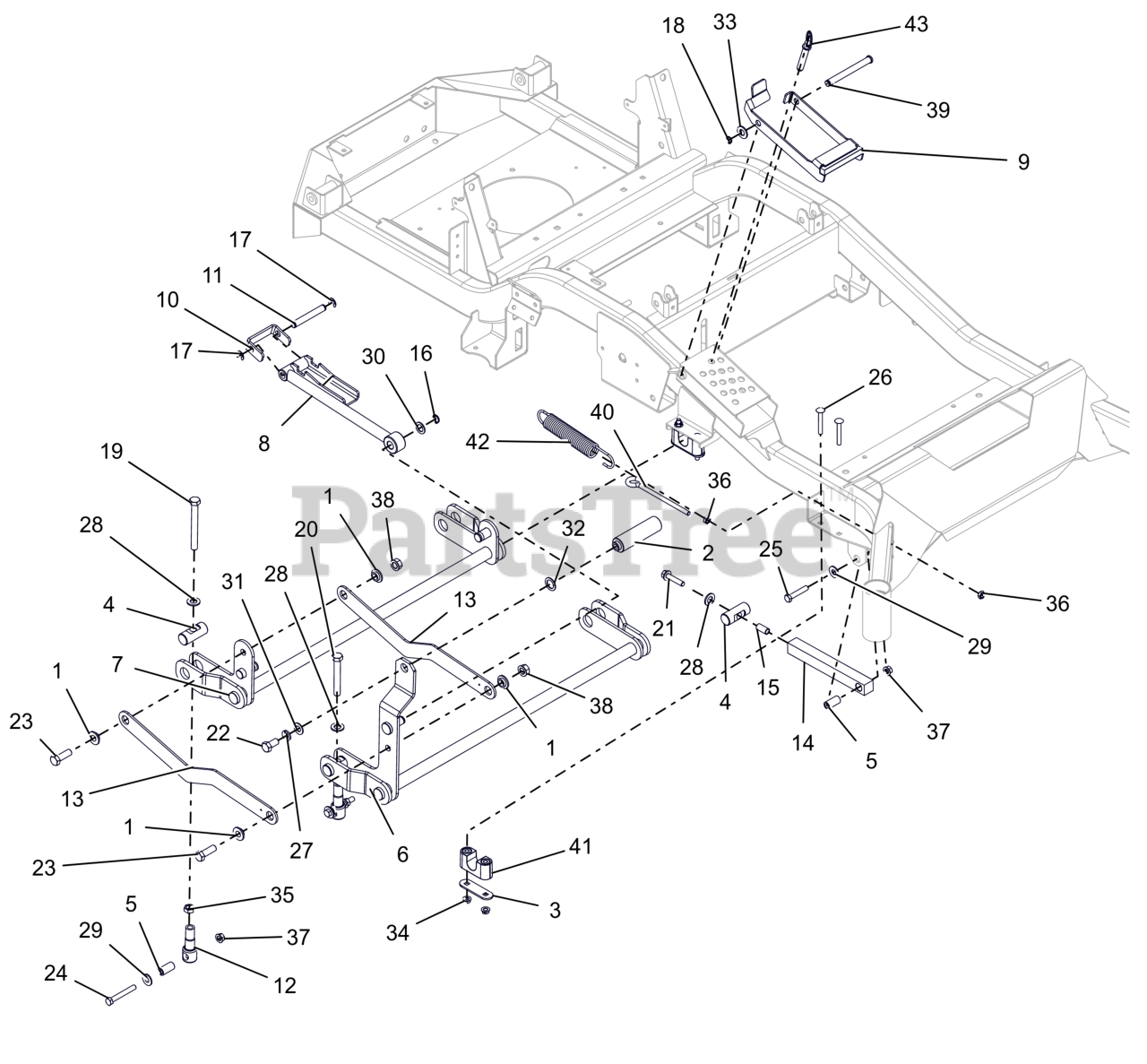

Deck Lift - RH Parts Diagram

  • Title

1

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.99

$

In Stock, Qty 19

0

2

Ariens 04373300

FOOT PEG, DECK LIFT

$38.99

$

Usually ships in 4-12 days

0

3

Ariens 04766551

PLATE, BEARING SUPPORT

$8.49

$

In Stock, Qty 9

0

4

Ariens 04877700

PIN, DECK LIFT
(Superseded to 05149500)

$17.99

$

In Stock, Qty 11

0

5

Ariens 04895200

SPACER, DECK LEVELING

$2.99

$

In Stock, Qty 7

0

6

Ariens 05019659

WLDMT, FRONT DECK LIFT PIVOT

$144.99

$

Usually ships in 4-12 days

0

7

Ariens 05019759

WLDMT, REAR DECK LIFT PIVOT

$118.99

$

Usually ships in 4-12 days

0

8

Ariens 05022059

WLDMT, HOC ARM
(Superseded to 05186359)

$87.99

$

Usually ships in 4-12 days

0

9

Ariens 05025259

BRKT, HOC TRANSFER LOCK

$37.99

$

Usually ships in 4-12 days

0

10

Ariens 05077551

BRKT, HOC LINE

$14.99

$

Usually ships in 4-12 days

0

11

Ariens 05077700

ROD, HOC PIVOT
(Superseded to 05800210)

$5.49

$

Usually ships in 4-12 days

0

12

Ariens 05081400

LINK, DECK LIFT FORMED

$16.99

$

In Stock, Qty 5

0

13

Ariens 05083959

LINK, DECK LIFT

$12.99

$

Usually ships in 4-12 days

0

14

Ariens 05090400

LINK, DRAG

$136.99

$

Usually ships in 4-12 days

0

15

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

16

Ariens 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

17

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, only 2 left!

0

19

Ariens 05900102

@BLT-HEX .5-13-4.5GR8 FULL THD
(Superseded to 05901736)

$10.99

$

In Stock, Qty 8

0

20

Ariens 05901336

BLT-HEX .50-13X3.50 GR5 FTH

$

$

Not available

21

Ariens 05901719

BLT,HEX-FLG .38-16X1.75 G5 ZCC

$4.99

$

In Stock, only 4 left!

0

22

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

23

Ariens 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 7

0

24

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

25

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

26

Ariens 06200226

BLT-RDHDSQSHNK .31-18X2.25 YWZ
(Superseded to 06200311)

$4.99

$

Usually ships in 4-12 days

0

27

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 10

0

28

Ariens 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$1.99

$

In Stock, Qty 20+

0

29

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 12

0

31

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$1.49

$

In Stock, Qty 6

0

33

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

34

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

36

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

39

Ariens 06800132

PIN-CLEV .50X4.75X4.55
(Superseded to 06800201)

$8.49

$

In Stock, only 2 left!

0

40

Ariens 07001814

BOLT,.38-16 X 5.25-.62 DIA EYE

$14.99

$

Usually ships in 4-12 days

0

41

Ariens 07500414

ASM-BUSHING, DECK LIFT

$25.99

$

In Stock, only 2 left!

0

42

Ariens 08319000

SG-TENS .162X1.25X8.25 WLD 25

$34.99

$

In Stock, Qty 18

0

43

Ariens 06800136

PIN, .50 X 2.20 USABLE LG BALL

$14.99

$

Usually ships in 4-12 days

0
