991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 000104 - 014999) Rear Tires And Transaxles - 48" Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

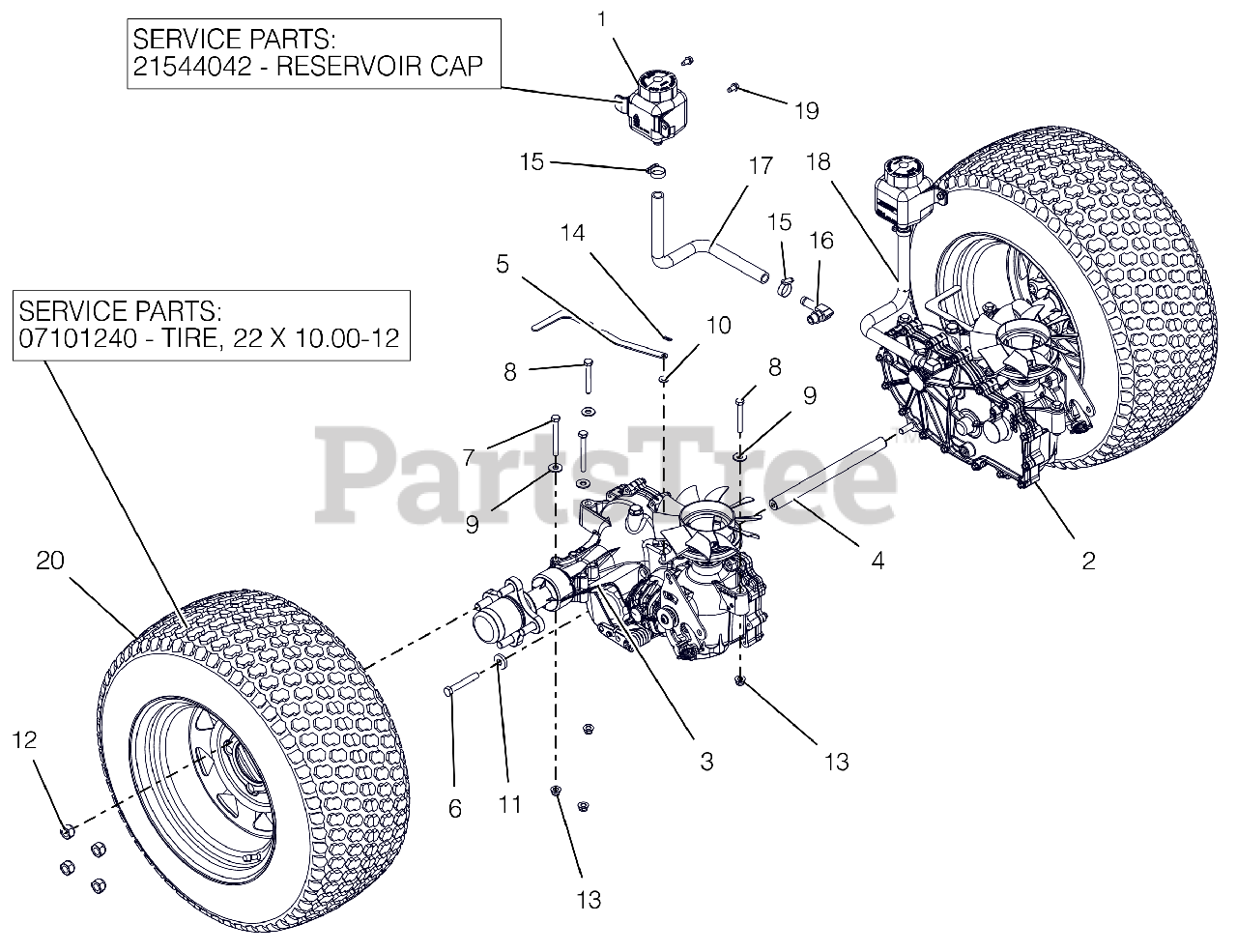

Rear Tires And Transaxles - 48" Parts Diagram

  • Title

1

Ariens 02970200

TANK, EXPANSION

$38.99

$

In Stock, Qty 10

0

1

Ariens 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: Component Service Part

$24.99

$

Usually ships in 4-12 days

0

2

Ariens 05002900

TRANSAXLE, ZT3100 LH
(Superseded to 09158700)

$1680.99

$

Usually ships in 4-12 days

0

3

Ariens 05003000

TRANSAXLE, ZT3100 RH
(Superseded to 09158800)

$1680.99

$

Usually ships in 4-12 days

0

4

Ariens 05012900

SHAFT, TRANSAXLE SUPPORT

$33.99

$

In Stock, only 3 left!

0

5

Ariens 05076751

BRKT, VALVE DUMP

$8.49

$

Usually ships in 4-12 days

0

6

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

7

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

11

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

12

Ariens 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

15

Ariens 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 07001528

FITTING, HYD (90 DEG)

$20.99

$

Usually ships in 4-12 days

0

17

Ariens 07001803

HOSE, FORMED EXPANSION -HD RH

$15.99

$

Usually ships in 4-12 days

0

18

Ariens 07001804

HOSE, FORMED EXPANSION -HD LH

$15.99

$

Usually ships in 4-12 days

0

19

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07101224

ASM, WHL/TIRE 22X10.00-12 K500

$273.99

$

Usually ships in 4-12 days

0

20

Ariens 07101240

TIRE, 22X10.00-12

Note: Component Service Part

$145.99

$

Usually ships in 4-12 days

0
