991155 - Ariens Apex 52" Zero-Turn Mower, Kohler (SN: 000101 - 000412) Idlers And Sheaves - 52" Parts Diagram

Apex 52" Zero-Turn Mower, Kohler

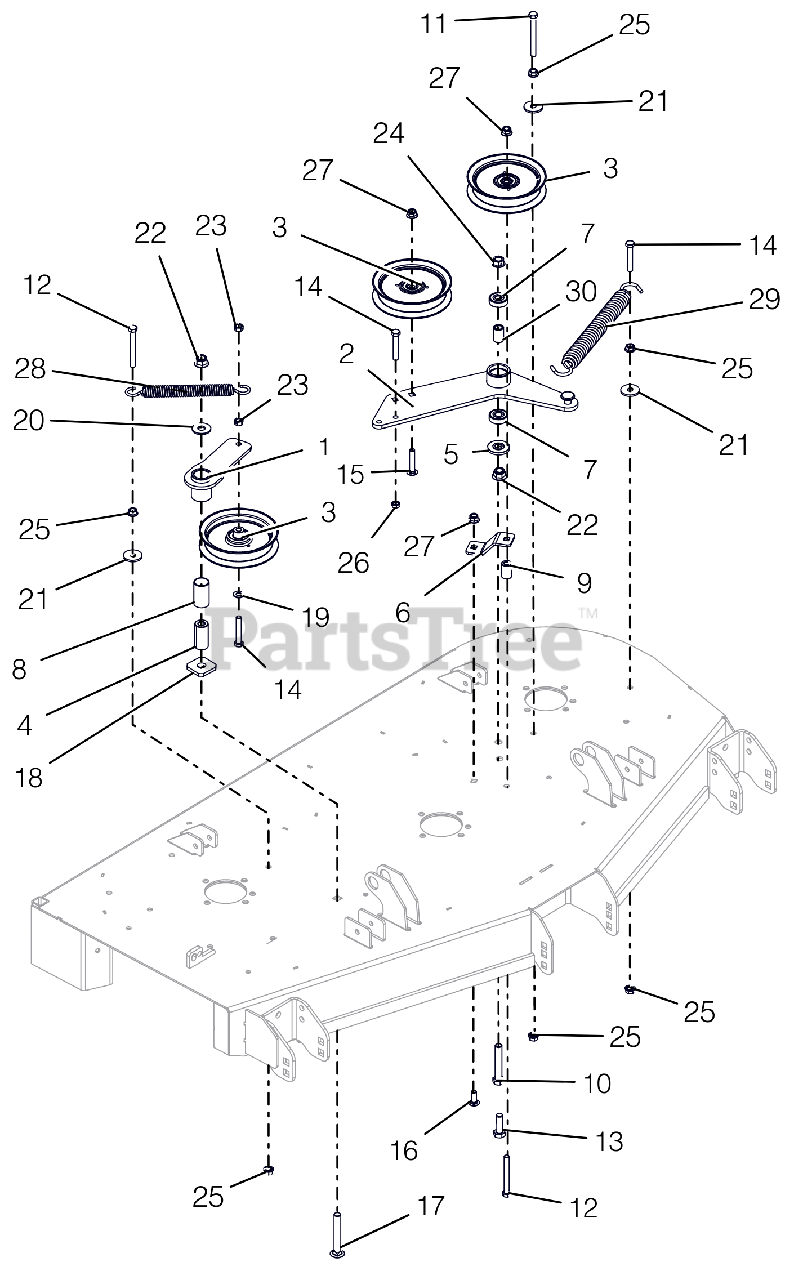

Idlers And Sheaves - 52" Parts Diagram

  • Title

1

Ariens 03774151

WMT, IDLER ARM - BLACK

$51.99

$

In Stock, only 3 left!

0

2

Ariens 04985651

DECK PTO IDLER ARM WLDMT - BLK
(Superseded to 04985600)

$77.99

$

Usually ships in 4-12 days

0

3

Ariens 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$39.99

$

In Stock, Qty 17

0

4

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 15

0

5

Ariens 04714600

SPACER, IDLER ARM

$4.99

$

In Stock, Qty 20+

0

6

Ariens 04981859

PTO FIXED IDLER MTG BRKT-ORG

$8.49

$

Usually ships in 4-12 days

0

7

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

8

Ariens 05501234

BSHG, 1.00X1.125X1.937

$10.99

$

In Stock, Qty 7

0

9

Ariens 05501308

BUSHING, SLV .380X.750X1.190

$4.99

$

Usually ships in 4-12 days

0

10

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, Qty 9

0

11

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

13

Ariens 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

14

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 18

0

16

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$5.99

$

In Stock, only 1 left!

0

18

Ariens 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, Qty 8

0

19

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

21

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, Qty 5

0

22

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$2.99

$

In Stock, Qty 20+

0

25

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 10

0

27

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 9

0

29

Ariens 08300708

SPRING, EXTENSION

$18.99

$

In Stock, only 2 left!

0

30

Ariens 09357700

SPACER .510 X .75 X 1.1485

$3.99

$

In Stock, Qty 8

0
