991158 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX (SN: 040000 - 049999) Electrical Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX

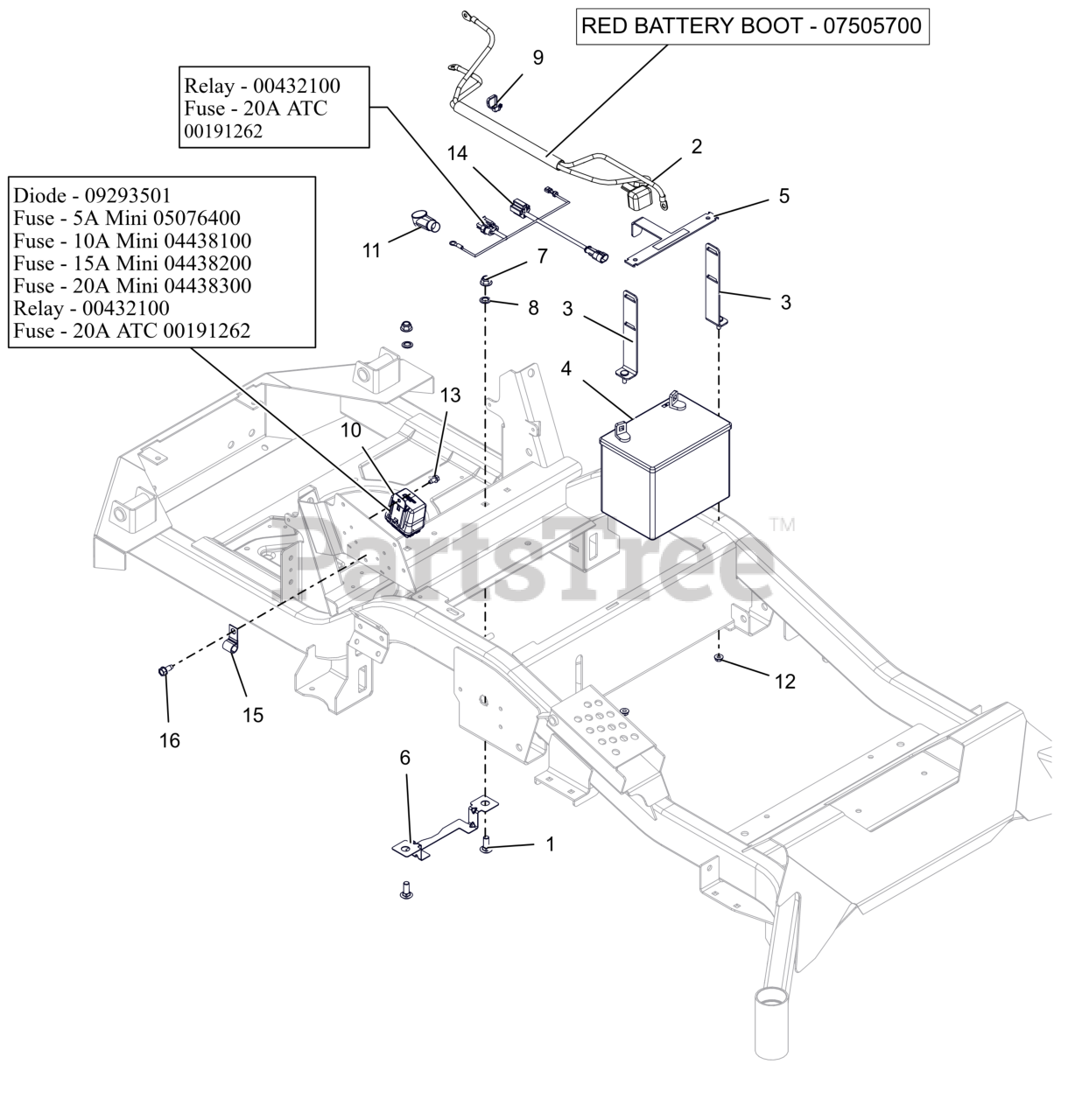

Electrical Parts Diagram

  • Title

1

Ariens 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 19

0

2

Ariens 05074100

HARNESS, BATTERY HD

$56.99

$

Usually ships in 4-12 days

0

2

Ariens 07505700

INSULATOR

Note: Component Service Part

$9.49

$

Usually ships in 4-12 days

0

3

Ariens 05107451

WMT,BATTERY MOUNT HOLD DOWN
(Superseded to 05107400)

$9.99

$

Usually ships in 4-12 days

0

4

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

5

Ariens 05031551

BRKT, BATTERY TIE DOWN
(Superseded to 05031500)

$9.49

$

In Stock, Qty 13

0

6

Ariens 05111451

GUARD, ELECTRICAL HARNESS

$10.99

$

Usually ships in 4-12 days

0

7

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07009900

NUT-PUSH .38 DIA. PAL ZINC

$1.99

$

In Stock, only 1 left!

0

9

Ariens 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

10

Ariens 05155300

HARNESS, WIRE

$196.99

$

Usually ships in 4-12 days

0

10

Ariens 09293501

DIODE, CONNECTOR SHELL

Note: Component Service Part

$11.99

$

In Stock, Qty 20+

0

10

Ariens 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$2.99

$

Usually ships in 4-12 days

0

10

Ariens 04438200

Fuse, 15 AMP MINI-ATC

Note: Component Service Part

$11.99

$

Usually ships in 4-12 days

0

10

Ariens 04438300

FUSE,20 AMP MINI ATC

Note: Component Service Part

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: Component Service Part

$20.99

$

In Stock, Qty 16

0

10

Ariens 00191262

FUSE, 20 AMP BLADE S/O

Note: Component Service Part

$14.99

$

Usually ships in 4-12 days

0

11

Ariens 07500401

BOOT, .65ID POS

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 13

0

13

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05189800

HARNESS, STARTER ADAPTOR

$53.99

$

Usually ships in 4-12 days

0

14

Ariens 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: Component Service Part

$20.99

$

In Stock, Qty 16

0

14

Ariens 00191262

FUSE, 20 AMP BLADE S/O

Note: Component Service Part

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, only 2 left!

0
