991158 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX (SN: 135000 - 199999) Engine Guard and Fenders - Zenith Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX

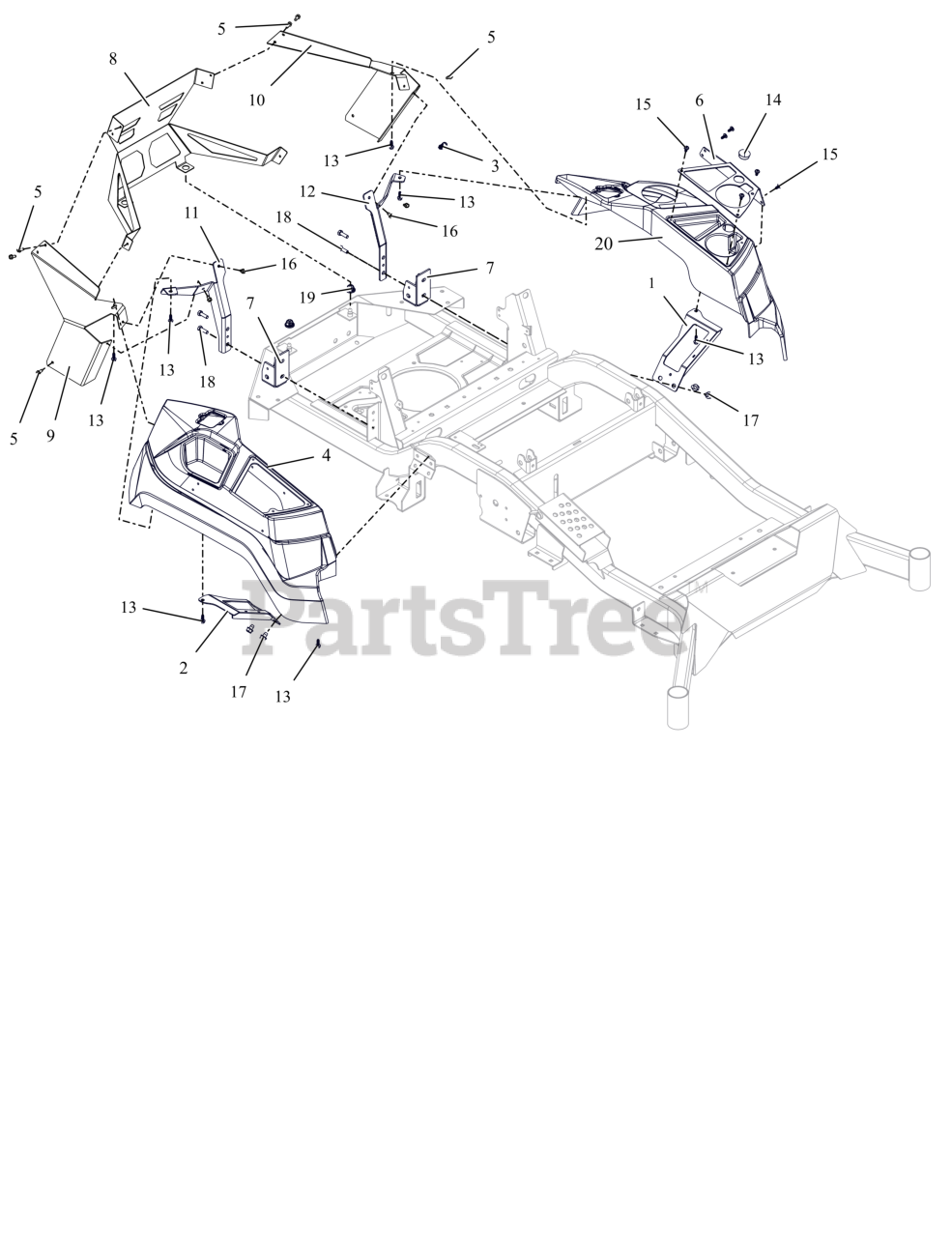

Engine Guard and Fenders - Zenith Parts Diagram

  • Title

1

Ariens 05095151

WLDMT, LH FENDER MOUNT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 05105151

WLDMT, RH FENDER MOUNT

$23.99

$

Usually ships in 4-12 days

0

3

Ariens 04451600

CLIP, CABLE GUIDE

$2.49

$

In Stock, only 2 left!

0

4

Ariens 05100400

FENDER, RH APEX - 2017

$59.99

$

Usually ships in 4-12 days

0

5

Ariens 07400210

SCR-TAP .25X.50 HWH ZB500

$3.49

$

In Stock, only 1 left!

0

6

Ariens 30186359

PLATE-APEX CUP HLDR W/USB(ORG)

$24.99

$

Usually ships in 4-12 days

0

7

Ariens 05248051

BRKT, ROPS SUPPORT (BLACK)

$33.99

$

Usually ships in 4-12 days

0

8

30294851

GUARD, ENGINE (BLACK)

$

$

Not available

9

30294959

PANEL, RH REAR FENDER MOUNT (ORANGE)

$

$

Not available

10

30295059

PANEL, LH REAR FENDER MOUNT (ORANGE)

$

$

Not available

11

Ariens 05244459

BRKT, RH FENDER MTG (ORANGE)

$55.99

$

Usually ships in 4-12 days

0

12

Ariens 05244559

BRKT, LH FENDER MOUNT (ORANGE)

$48.99

$

Usually ships in 4-12 days

0

13

Ariens 06100231

SCR, PLASTITE .25-10X.75 ZCC

$1.99

$

In Stock, Qty 8

0

14

Ariens 07500602

PLUG, HOLE 1.125 DOMED

$1.49

$

Usually ships in 0 days

0

15

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.99

$

In Stock, only 2 left!

0

16

Ariens 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

18

Ariens 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.99

$

In Stock, only 3 left!

0

19

Ariens 07500407

GROMMET, 10MM BOLLHOFF

$6.49

$

Usually ships in 4-12 days

0

20

Ariens 59113800

FENDER, LH APEX

$79.99

$

In Stock, only 2 left!

0
