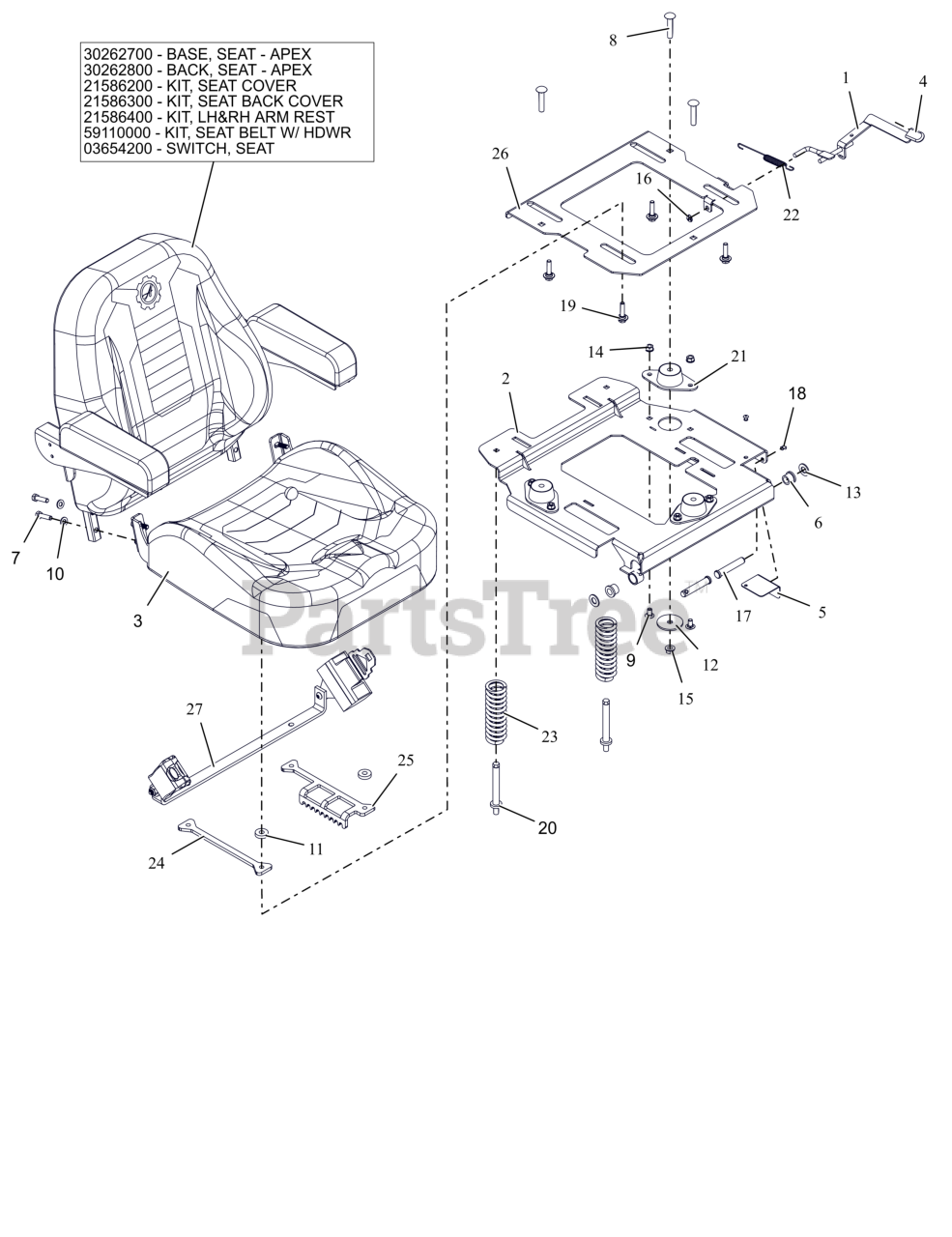

991158 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX (SN: 135000 - 199999) Seat – ZENITH Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX

Seat – ZENITH Parts Diagram

  • Title

1

Ariens 05015251

WLDMT, SEAT SLIDE LEVER

$25.99

$

Usually ships in 4-12 days

0

2

Ariens 30135959

WLDMT- ISO MTG PLATE 3PT

$131.99

$

Usually ships in 4-12 days

0

3

30265100

SEAT, ASM APEX/ZENITH

$

$

Not available

3

30262700

BASE, SEAT - APEX

Note: Component Service Part

$

$

Not available

3

30262800

BACK, SEAT - APEX

Note: Component Service Part

$

$

Not available

3

Ariens 21586200

KIT, SEAT COVER BOTTOM

Note: Component Service Part

$93.99

$

Usually ships in 4-12 days

0

3

Ariens 21586300

KIT, SEAT BACK COVER

Note: Component Service Part

$105.99

$

Usually ships in 4-12 days

0

3

Ariens 21586400

KIT, LH & RH ARM REST

Note: Component Service Part

$158.99

$

Usually ships in 0 days

0

3

Ariens 59110000

KIT-SEAT BELT REPLACE-05007300

Note: Component Service Part

$143.99

$

Usually ships in 4-12 days

0

3

Ariens 03654200

SWITCH- SEAT

$15.99

$

In Stock, Qty 10

0

4

Ariens 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 05265551

GUARD, SEAT FAN (SH)(BLACK)

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 05500901

BSHG, FLG .516X.750X.625X.937

$6.49

$

In Stock, Qty 5

0

7

Ariens 05901803

BLT, HEX .31-18X1.25 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

8

Ariens 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

9

Ariens 06200333

BLT, RHSSN .31-18X.625 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06401125

WSHR, FLT .390X1.00X.250 ZCC

$2.99

$

In Stock, only 2 left!

0

12

Ariens 06401221

WSHR-FL-STL 0.406X2X0.125 ZCC

$3.99

$

In Stock, only 2 left!

0

13

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 11

0

17

Ariens 06800202

PIN-CLIC .50X2.70X2.31 -ZCC

$8.49

$

In Stock, Qty 12

0

18

06800228

RVT-POP .187x.250 (#64) BLK

$

$

Not available

19

Ariens 07001929

BOLT SHLDR .31-18 X .175

$2.99

$

In Stock, only 3 left!

0

20

07002408

BOLT, SEAT SPRING

$

$

Not available

21

Ariens 07500520

MOUNT, FAIL-SAFE COMPRESSION

$42.99

$

Usually ships in 4-12 days

0

22

Ariens 08300022

SG-TENS .06X.482X5.35

$6.49

$

In Stock, Qty 7

0

23

Ariens 08300704

SPRING, COMPRESSION SEAT 224LB

$17.99

$

In Stock, only 2 left!

0

24

Ariens 09363451

PLATE, ADJ SEAT SLIDE (BLACK)

$10.99

$

Usually ships in 4-12 days

0

25

Ariens 09363551

PLATE, SEAT ADJ (BLACK)

$27.99

$

Usually ships in 4-12 days

0

26

Ariens 30148151

PLATE- SEAT MTG 3PT (ISO KIT)

$46.99

$

Usually ships in 4-12 days

0

27

Ariens 59110000

KIT-SEAT BELT REPLACE-05007300

$143.99

$

Usually ships in 4-12 days

0
