991161 - Ariens Apex 48" Zero-Turn Mower, 23hp Kohler (SN: 095000 & Above) Idlers and Sheaves - 48" Parts Diagram

Apex 48" Zero-Turn Mower, 23hp Kohler

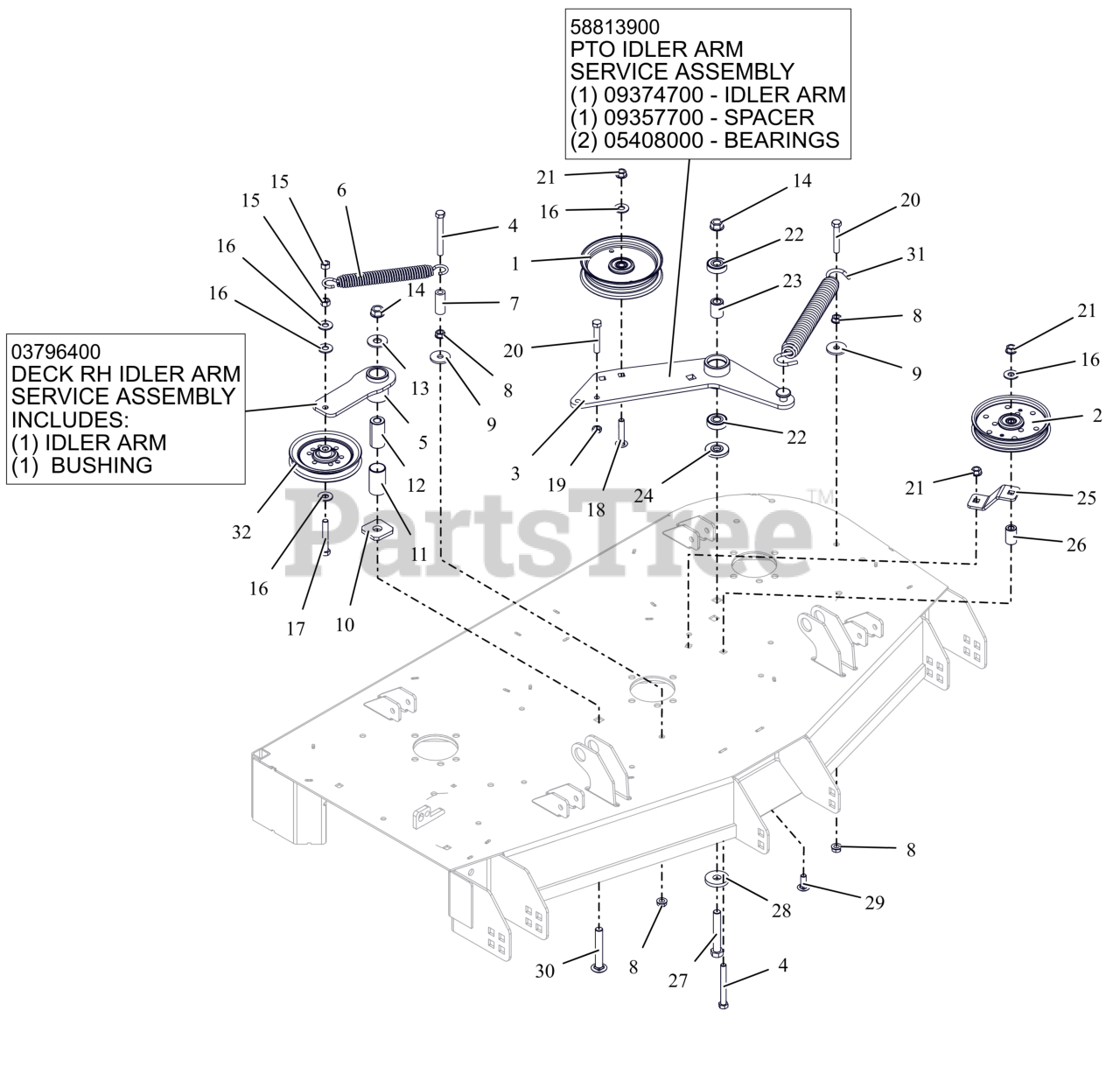

Idlers and Sheaves - 48" Parts Diagram

  • Title

1

Ariens 07351200

IDLER- FLAT - 5.00" X .75"

$42.99

$

In Stock, Qty 20+

0

2

Ariens 07352400

IDLER- 5" FLANGED

$40.99

$

In Stock, Qty 20+

0

3

Ariens 09374700

WLDMT, IDLER ARM PT660

$87.99

$

Usually ships in 4-12 days

0

3

Ariens 58813900

PTO IDLER ARM

Note: Service Part Assembly

$116.99

$

Usually ships in 4-12 days

0

3

Ariens 09374700

WLDMT, IDLER ARM PT660

Note: Service Part Component

$87.99

$

Usually ships in 4-12 days

0

3

Ariens 09357700

SPACER .510 X .867 X 1.1485

Note: Service Part Component

$5.49

$

In Stock, Qty 20+

0

3

Ariens 05408000

BRG-BALL .500X1.38X.437

Note: Service Part Component

$6.99

$

In Stock, Qty 20+

0

4

Ariens 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$4.99

$

In Stock, Qty 15

0

5

Ariens 03774151

WMT, IDLER ARM - BLACK

$52.99

$

In Stock, only 4 left!

0

5

Ariens 03796400

ASM, IDLER ARM (DECK)

Note: Service Part Assembly

$64.99

$

In Stock, only 4 left!

0

6

Ariens 08300728

SPRING- EXTENSION

$28.99

$

In Stock, Qty 20+

0

7

Ariens 05278000

HOSE, .38 X 1.65

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06401121

WSHR,FLT .406X1.375X.135 ZCC

$6.49

$

In Stock, Qty 9

0

10

Ariens 06400829

WSHR-FLT .640X1.75X.250

$4.99

$

In Stock, Qty 20+

0

11

Ariens 05501234

BSHG, 1.00X1.125X1.937

$11.99

$

In Stock, Qty 20+

0

12

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

13

Ariens 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.99

$

In Stock, Qty 20+

0

14

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

17

Ariens 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

18

Ariens 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 18

0

19

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

21

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

23

Ariens 09357700

SPACER .510 X .867 X 1.1485

$5.49

$

In Stock, Qty 20+

0

24

Ariens 04714600

SPACER, IDLER ARM

$6.99

$

In Stock, Qty 17

0

25

Ariens 04981859

PTO FIXED IDLER MTG BRKT-ORG

$8.49

$

Usually ships in 4-12 days

0

26

Ariens 05501308

BUSHING, SLV .380X.750X1.190

$5.49

$

In Stock, Qty 6

0

27

Ariens 05901634

BLT,HEX .50-13X3.25 G5 ZCC

$3.99

$

In Stock, Qty 8

0

28

Ariens 06401213

WSHR-FL-STL 0.557X1.625X0.25 ZCC

$3.99

$

In Stock, only 1 left!

0

29

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

30

Ariens 06200339

BTL,RHSSN .500-13 X 3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

31

Ariens 08300708

SPRING, EXTENSION

$21.99

$

In Stock, Qty 13

0

32

Ariens 07351800

IDLER, V, 5.00X.38

$31.99

$

In Stock, Qty 20+

0
