991161 - Ariens Apex 48" Zero-Turn Mower, 23hp Kohler (SN: 095000 & Above) Rear Tires and Transaxles - 48" Parts Diagram

Apex 48" Zero-Turn Mower, 23hp Kohler

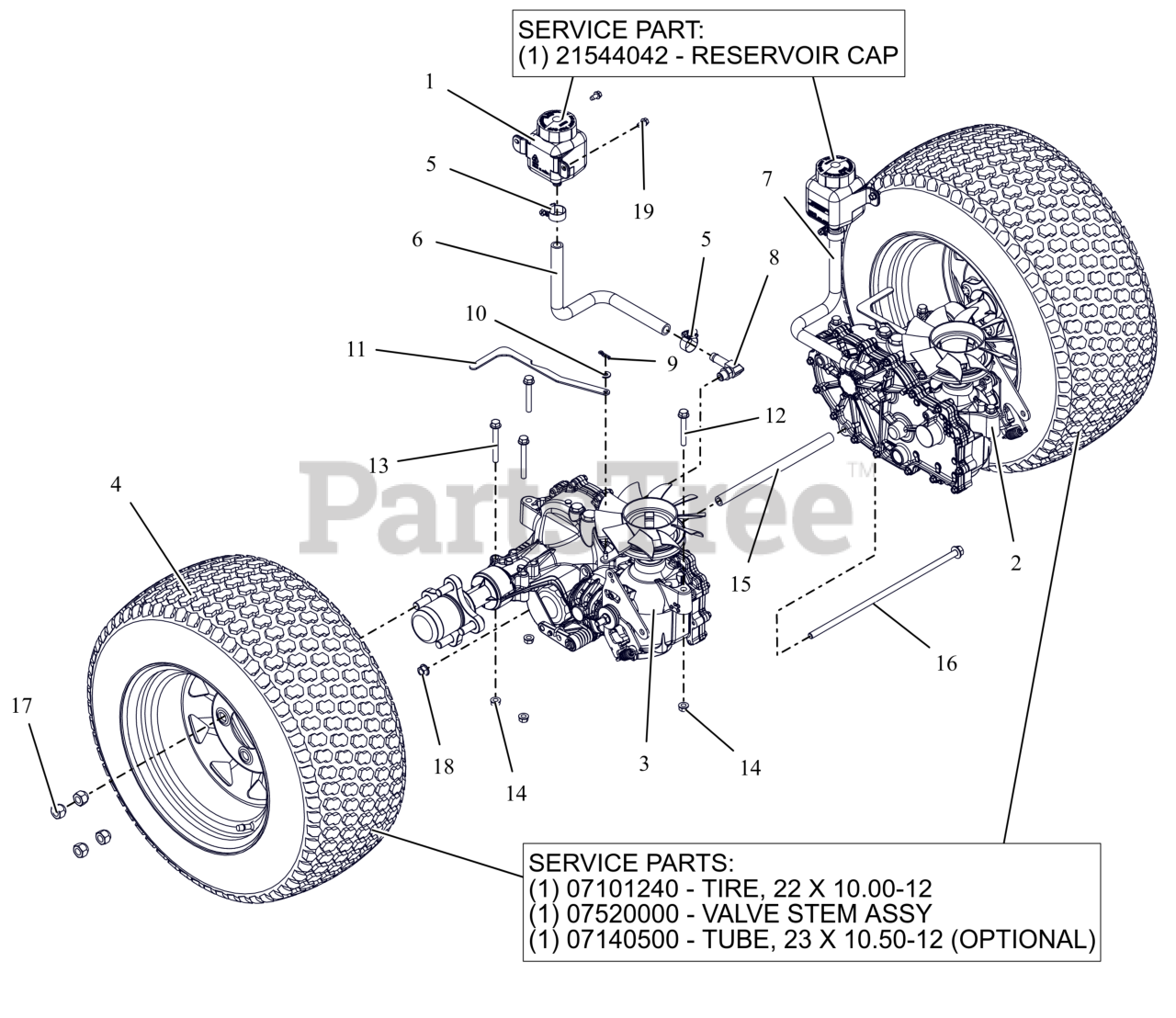

Rear Tires and Transaxles - 48" Parts Diagram

  • Title

1

Ariens 02970200

TANK, EXPANSION

$38.99

$

In Stock, Qty 10

0

1

Ariens 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: Service Part Componenet

$24.99

$

Usually ships in 4-12 days

0

2

Ariens 09360000

TRANSAXLE, ZT3100 - LH

$1680.99

$

Usually ships in 4-12 days

0

3

Ariens 09360100

TRANSAXLE, ZT3100 - RH

$1680.99

$

Usually ships in 4-12 days

0

4

Ariens 07101521

ASM-WHL/TIRE 22X10-12 LG BLK

$275.99

$

Usually ships in 4-12 days

0

4

Ariens 07101240

TIRE, 22X10.00-12

Note: Service Part Componenet

$145.99

$

Usually ships in 4-12 days

0

4

Ariens 07520000

VALVE STEM ASS'Y

Note: Service Part Componenet

$2.99

$

In Stock, only 4 left!

0

4

Ariens 07140500

TIRE TUBE 22,23,24/8.50/9.50/10.00/10.50/12.00-12 4 PLY TR13 STRAIGHT VALVE

Note: Service Part Componenet

$48.99

$

Usually ships in 4-12 days

0

5

Ariens 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 07001803

HOSE, FORMED EXPANSION -HD RH

$15.99

$

Usually ships in 4-12 days

0

7

Ariens 07001804

HOSE, FORMED EXPANSION -HD LH

$15.99

$

Usually ships in 4-12 days

0

8

Ariens 07001528

FITTING, HYD (90 DEG)

$20.99

$

Usually ships in 4-12 days

0

9

Ariens 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, only 4 left!

0

10

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, only 3 left!

0

11

Ariens 05076751

BRKT, VALVE DUMP

$8.49

$

Usually ships in 4-12 days

0

12

Ariens 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05196451

SPCR,TRANS. .406IDX.63ODX9.95L

$14.99

$

Usually ships in 4-12 days

0

16

Ariens 05901903

BLT,HEX-FLG .38-16X13 G5 ZCC

$14.99

$

In Stock, only 3 left!

0

17

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$1.99

$

In Stock, Qty 20+

0

18

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
