991162 (ZT HD 48) - Gravely 48" Zero-Turn Mower, 23hp Kawasaki FR (SN: 001865 - 014999) Fuel System - Kawasaki Non-Carb Parts Diagram

48" Zero-Turn Mower, 23hp Kawasaki FR

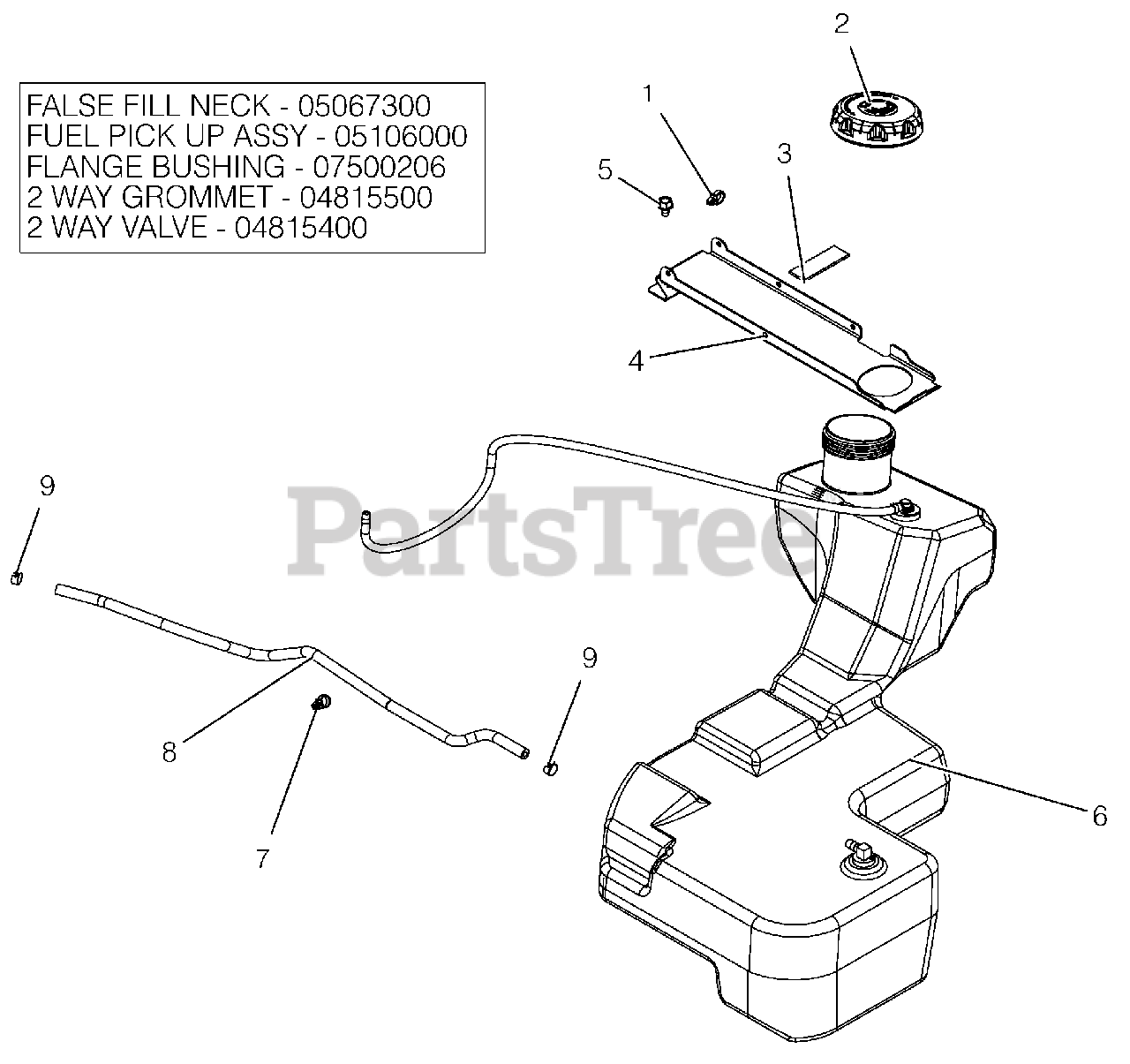

Fuel System - Kawasaki Non-Carb Parts Diagram

  • Title

1

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

2

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$33.99

$

In Stock, only 1 left!

0

3

Gravely 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 05024151

BRKT, FUEL TANK HOLD DOWN

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

6

Gravely 05018100

ASM, HD FUEL TANK
(Superseded to 09167300)

$219.99

$

Usually ships in 4-12 days

0

6

Gravely 05067300

INSERT, FUEL NECK FALSE FILL

Note: SERVICE PART

$

$

Not available

6

Gravely 05106000

ASM, HD FUEL PICK-UP

Note: SERVICE PART

$45.99

$

In Stock, only 1 left!

0

6

Gravely 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: SERVICE PART

$2.49

$

In Stock, only 2 left!

0

6

Gravely 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

6

Gravely 04815400

VALVE, 2-WAY

Note: SERVICE PART

$19.99

$

In Stock, only 4 left!

0

7

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

8

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

9

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0
