991186 (ZT HD 60) - Gravely 60" Zero-Turn Mower, 24hp Kawasaki FR, CARB (SN: 015000 & Above) Fuel System - Kawasaki CARB Parts Diagram

60" Zero-Turn Mower, 24hp Kawasaki FR, CARB

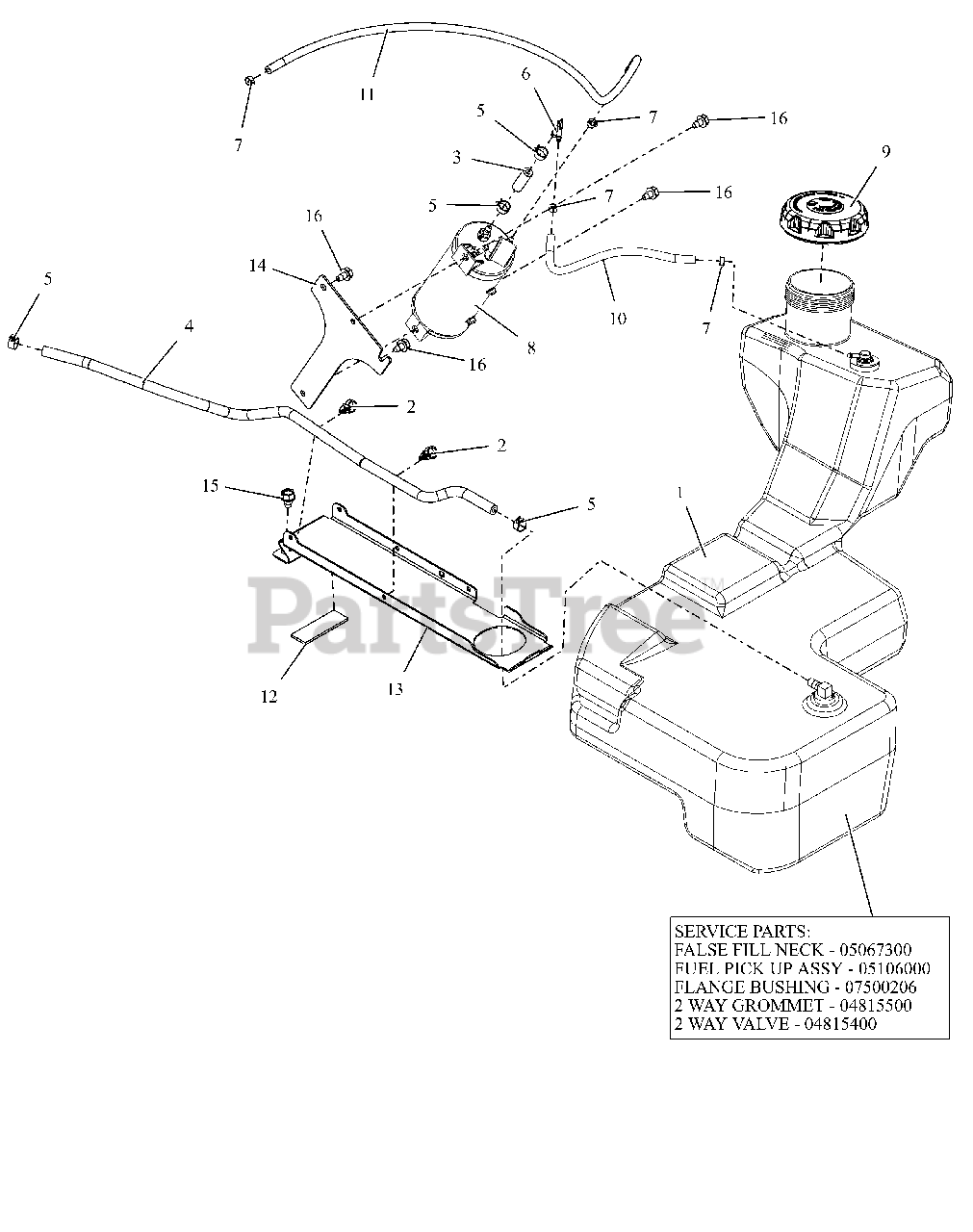

Fuel System - Kawasaki CARB Parts Diagram

  • Title

1

Gravely 05018100

ASM, HD FUEL TANK
(Superseded to 09167300)

$250.99

$

Usually ships in 4-12 days

0

2

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.99

$

In Stock, only 1 left!

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 12

0

6

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 04548100

CANISTER, 400 CC CARB

$80.99

$

Usually ships in 4-12 days

0

9

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$35.99

$

In Stock, Qty 8

0

10

Gravely 04745900

HOSE, .188 30R7 BULK

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 04745900

HOSE, .188 30R7 BULK

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 05024151

BRKT, FUEL TANK HOLD DOWN

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 05135451

BRKT, CARB CANISTER MTG (HD)

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 13

0

16

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0
