991188 (Pro-Turn Z 52) - Gravely Pro-Turn 52" Zero-Turn Mower, 764cc Loncin (SN: 000101 - 024999) Rear Tires And Transaxles - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, 764cc Loncin

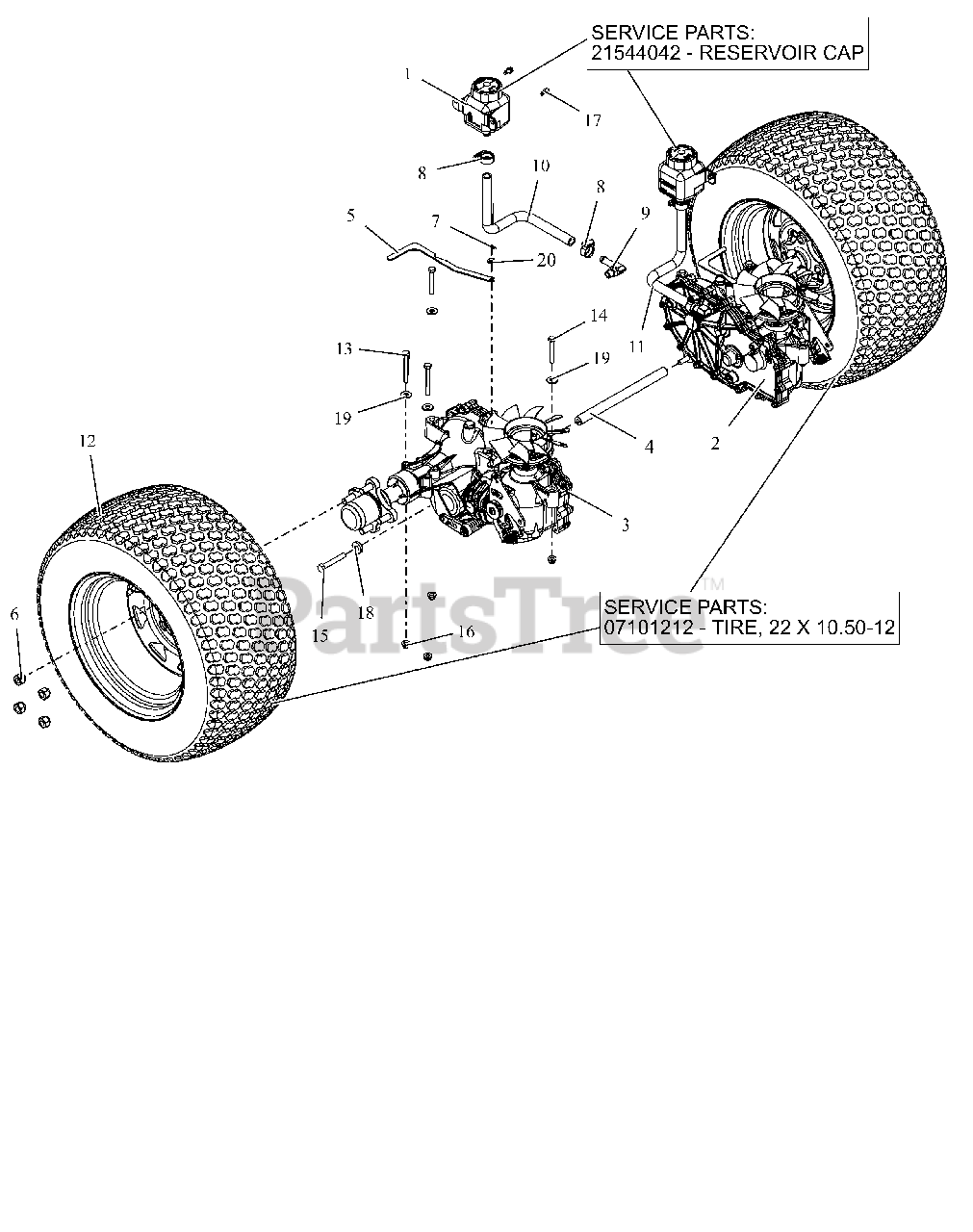

Rear Tires And Transaxles - 52" Parts Diagram

  • Title

1

Gravely 02970200

TANK, EXPANSION

$32.99

$

In Stock, only 4 left!

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$19.99

$

Usually ships in 4-12 days

0

2

Gravely 05002900

TRANSAXLE, ZT3100 LH
(Superseded to 09158700)

$1568.99

$

Usually ships in 4-12 days

0

3

Gravely 05003000

TRANSAXLE, ZT3100 RH
(Superseded to 09158800)

$1564.99

$

Usually ships in 4-12 days

0

4

Gravely 05012900

SHAFT, TRANSAXLE SUPPORT

$29.99

$

In Stock, only 1 left!

0

5

Gravely 05076751

BRKT, VALVE DUM

$7.99

$

Usually ships in 4-12 days

0

6

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, only 4 left!

0

8

Gravely 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 07001528

FITTING, HYD (90 DEG)

$18.99

$

Usually ships in 4-12 days

0

10

Gravely 07001803

HOSE, FORMED EXPANSION -HD RH

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 07001804

HOSE, FORMED EXPANSION -HD LH

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 07101211

ASM, WHL/TIRE 22X10.50-12 K500

$273.99

$

Usually ships in 4-12 days

0

12

Gravely 07101212

TIRE, 22X10.50-12

Note: SERVICE PART

$205.99

$

Usually ships in 4-12 days

0

13

Gravely 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.49

$

In Stock, only 3 left!

0

15

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 8

0

17

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 19

0

19

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 14

0
