991188 (Pro-Turn Z 52) - Gravely Pro-Turn 52" Zero-Turn Mower, 764cc Loncin (SN: 030000 - 039999) Engine - Gravely 764 Parts Diagram

Pro-Turn 52" Zero-Turn Mower, 764cc Loncin

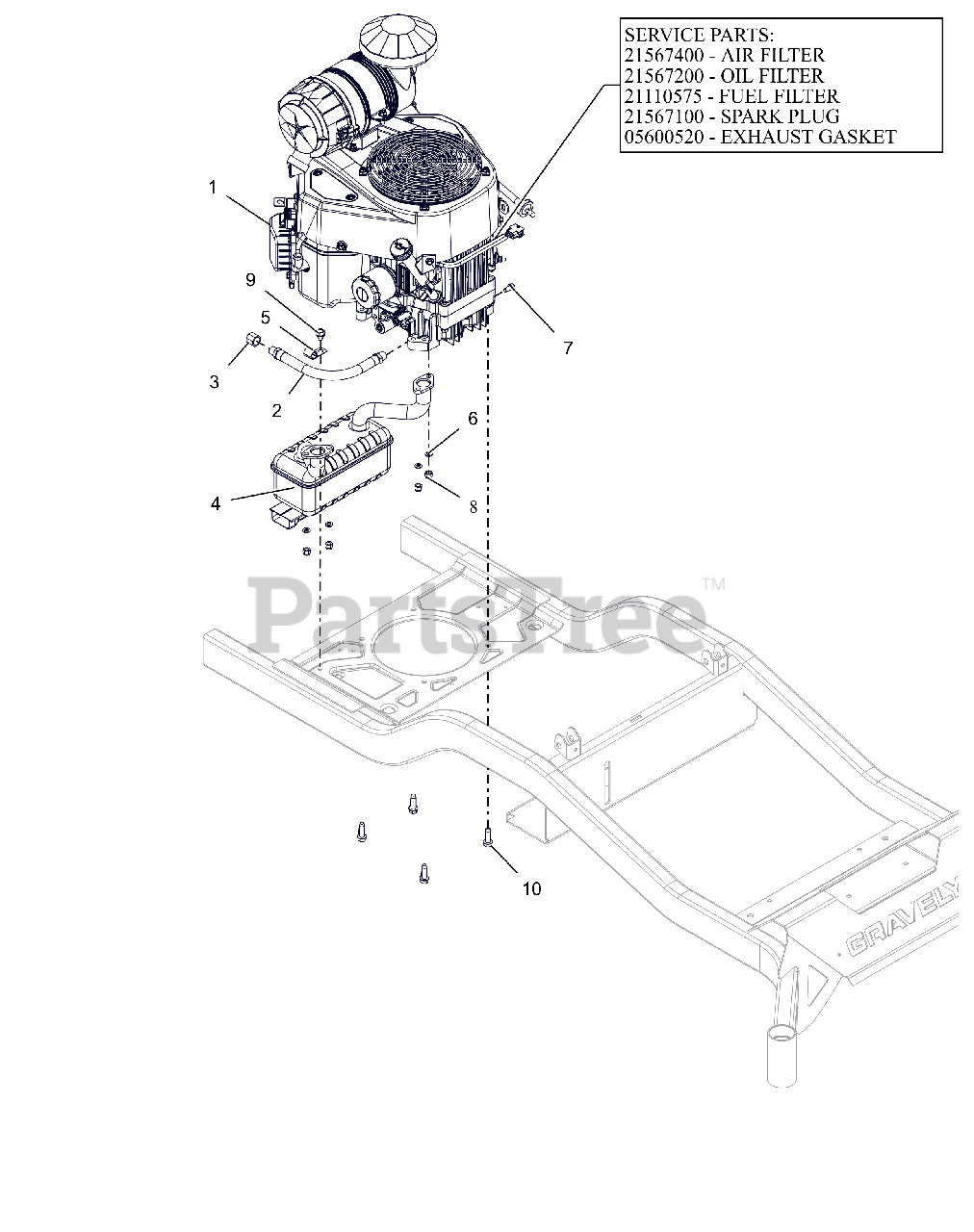

Engine - Gravely 764 Parts Diagram

  • Title

1

Gravely 08201332

ENGINE, LONCIN 764cc
(Superseded to 21574300)

$

$

Not available

1

Gravely 21567400

FILTER, AIR

Note: SERVICE PART

$7.99

$

In Stock, only 2 left!

0

1

Gravely 21567200

FILTER, OIL LONCIN

Note: SERVICE PART

$14.99

$

In Stock, Qty 13

0

1

Gravely 21110575

FILTER, FUEL

Note: SERVICE PART

$12.99

$

Usually ships in 4-12 days

0

1

Gravely 21567100

PLUG, SPARK

Note: SERVICE PART

$6.99

$

In Stock, Qty 6

0

1

Gravely 05600520

GASKET, MUFFLER LONCIN

Note: SERVICE PART

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 03873100

HOSE,HYD .38-11-0K M6NO-M6N0
(Superseded to 07001829)

$17.99

$

In Stock, only 1 left!

0

3

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 05112900

MUFFLER,

$59.99

$

Usually ships in 4-12 days

0

5

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05901832

BLT, HEX .31-18X.625 G5 ZCC

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 06500817

NUT,NYL M8-1.25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, only 4 left!

0

10

Gravely 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, only 2 left!

0
