991190 (Pro-Turn Z 60) - Gravely Pro-Turn 60" Zero-Turn Mower, 764cc Loncin (SN: 000101 - 024999) Seat Parts Diagram

Pro-Turn 60" Zero-Turn Mower, 764cc Loncin

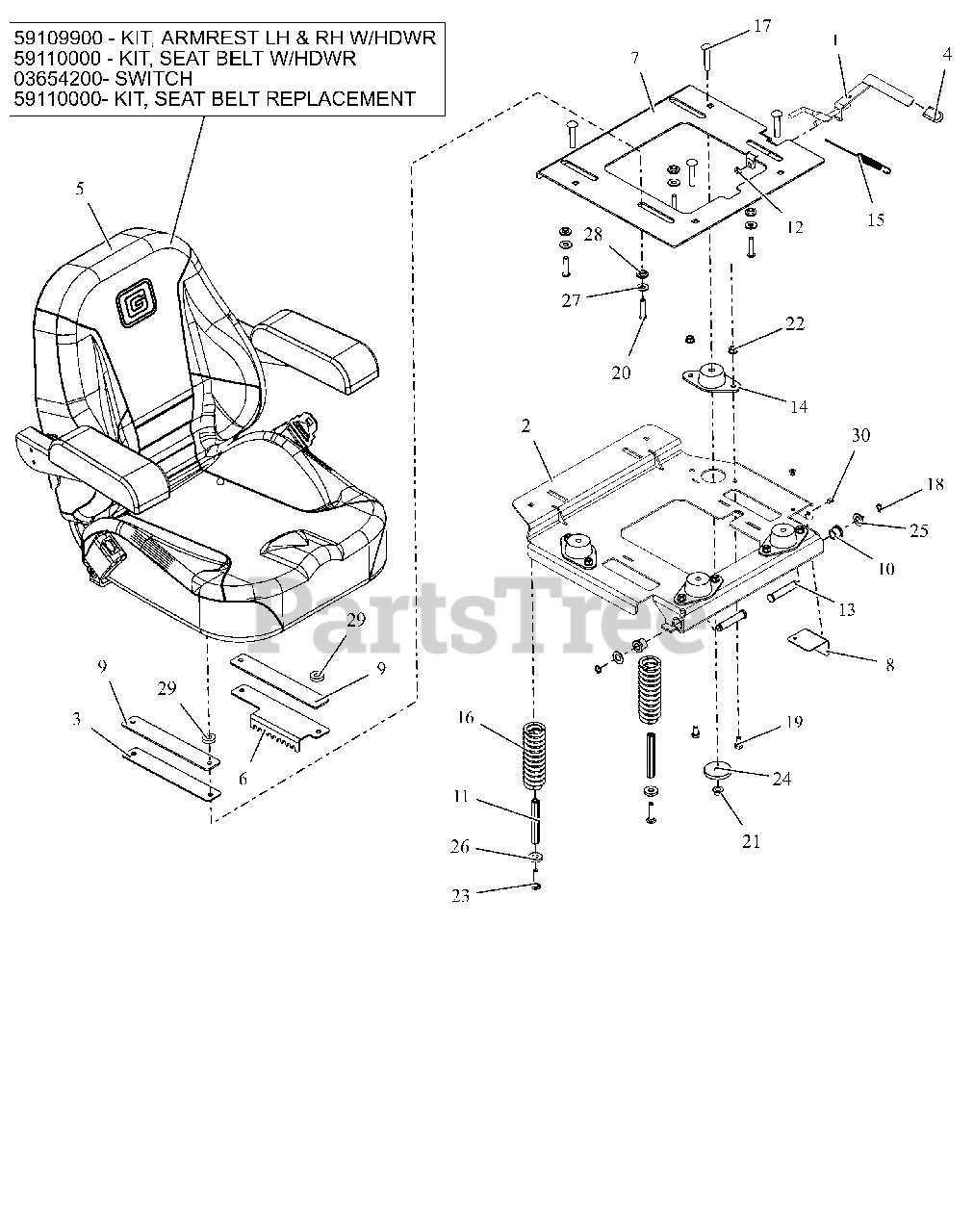

Seat Parts Diagram

  • Title

1

Gravely 05015251

WLDMT, SEAT SLIDE LEVER

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 05133451

WLDMT, ISO MTG PLATE (BLACK)
(Superseded to 05265451)

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$23.99

$

Usually ships in 4-12 days

0

4

Gravely 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 05007300

SEAT,HD

$567.99

$

Usually ships in 4-12 days

0

5

Gravely 59109900

KIT, LH&RH ARM REST-05007300

Note: SERVICE PART

$189.99

$

In Stock, only 1 left!

0

5

Gravely 59110000

KIT-SEAT BELT REPLACE-05007300

Note: SERVICE PART

$143.99

$

Usually ships in 4-12 days

0

5

Gravely 03654200

SWITCH- SEAT

Note: SERVICE PART

$15.99

$

In Stock, only 3 left!

0

5

Gravely 59110000

KIT-SEAT BELT REPLACE-05007300

Note: SERVICE PART

$143.99

$

Usually ships in 4-12 days

0

6

Gravely 05015151

PLATE, HD SEAT ADJUSTMENT

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 05133553

PLATE, SEAT MOUNTING (ISO KIT) (RED)

$70.99

$

In Stock, only 2 left!

0

8

Gravely 05156551

GUARD, SEAT FAN (BLACK)
(Superseded to 05265551)

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 05158051

SPCR, SEAT

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 06500828

NUT, COUPLING 5/16X18 X 3.75

$13.99

$

In Stock, only 2 left!

0

12

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06800135

PIN, SEAT PIVOT -.500X2.31
(Superseded to 06800202)

$8.49

$

In Stock, Qty 6

0

14

Gravely 07500237

MOUNT, FAIL-SAFE COMPRESSION

$37.99

$

Usually ships in 4-12 days

0

15

Gravely 08300022

SG-TENS .06X.482X5.35

$6.49

$

In Stock, only 1 left!

0

16

Gravely 08300704

SPRING, COMPRESSION SEAT 224LB

$17.99

$

Usually ships in 4-12 days

0

17

Gravely 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 17

0

18

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, only 2 left!

0

19

Gravely 05901832

BLT, HEX .31-18X.625 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

20

Gravely 05901727

SCR,BTNHD .31-18X1.50 ZCC

$4.99

$

In Stock, Qty 20+

0

21

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 12

0

24

Gravely 06401111

WSHR, FLT .469X2.00X.250 ZCC

$7.99

$

In Stock, Qty 20+

0

25

Gravely 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 9

0

26

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.99

$

In Stock, Qty 20+

0

27

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

28

Gravely 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06400922

WSHR-FL-STL,.390X1.00X.25 YWZC
(Superseded to 06401125)

$2.99

$

In Stock, Qty 8

0

30

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$1.99

$

Usually ships in 4-12 days

0
