991192 (Pro-Turn Z 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Gravely 764 Pro (SN: 040000 & Above) Front Caster Wheels Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Gravely 764 Pro

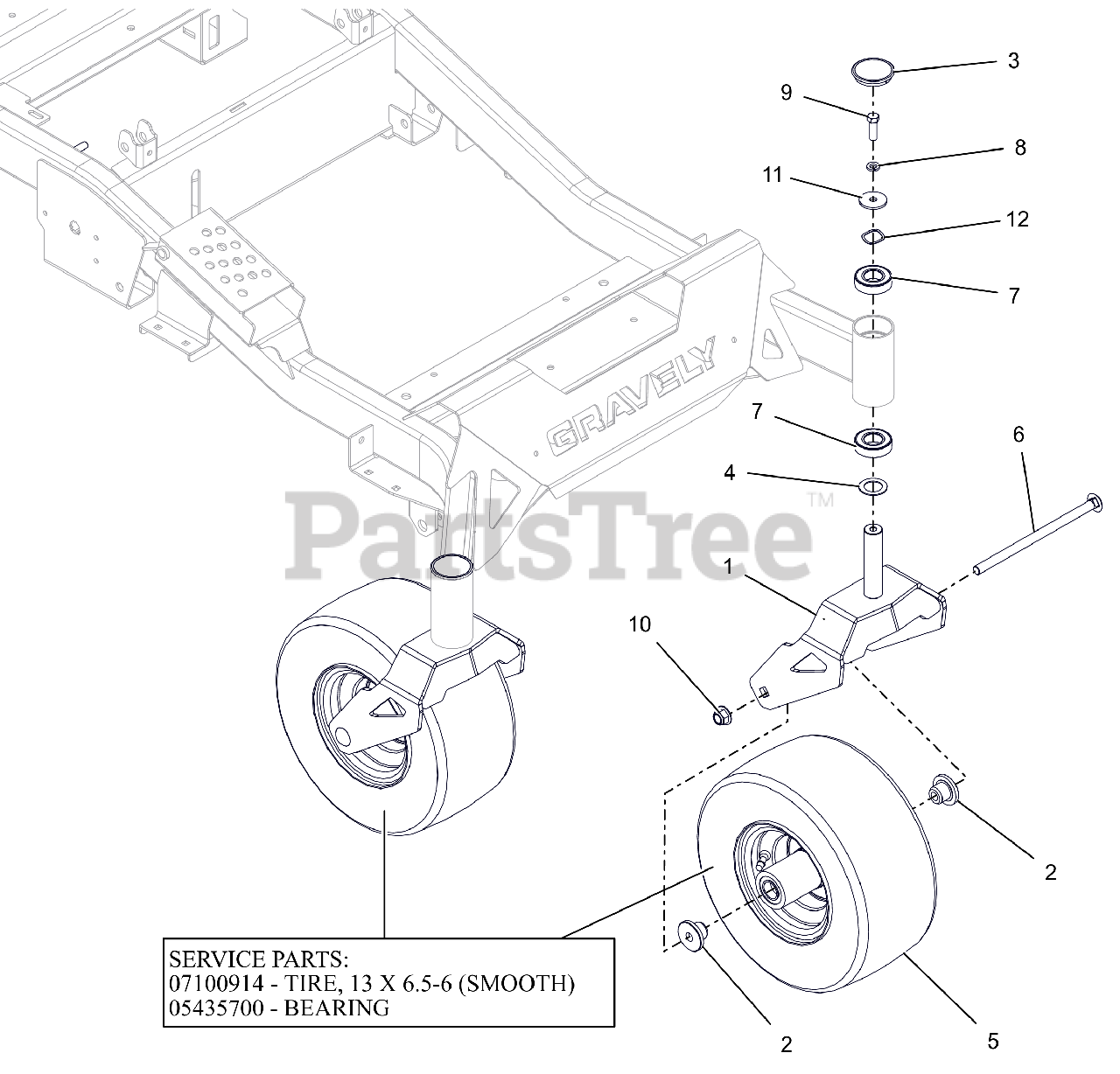

Front Caster Wheels Parts Diagram

  • Title

1

Gravely 04999653

WLDMT, HD CASTER FORK
(Superseded to 05186453)

$131.99

$

In Stock, Qty 9

0

2

Gravely 00675300

SPACER, FRONT WHEEL

$9.49

$

In Stock, Qty 20+

0

3

Gravely 04792200

CAP, DUST

$13.99

$

In Stock, Qty 20+

0

4

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

5

Gravely 07101226

ASM, WHL/TIRE 13X6.50-6

$137.99

$

In Stock, only 1 left!

0

5

Gravely 07100914

TIRE, 13X6.50-6 SMOOTH

Note: SERVICE PART

$85.99

$

In Stock, only 2 left!

0

5

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: SERVICE PART

$25.99

$

In Stock, Qty 20+

0

6

Gravely 06200322

BTL,RHSN .500-13 X 9 G5 ZCC
(Superseded to 06200510)

$8.49

$

In Stock, only 4 left!

0

7

Gravely 05400722

BRG,BALL 1.00X2.00X.563(1641)

$19.99

$

In Stock, Qty 20+

0

8

Gravely 06300120

WSHR, LK-HVY .375X.115 ZCC

$4.99

$

In Stock, Qty 17

0

9

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 16

0

10

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$6.49

$

In Stock, Qty 7

0
