991200 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki (SN: 020000 - 029999) Deck, Belts, Baffles, Blades and Spindles - 48" Deck Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki

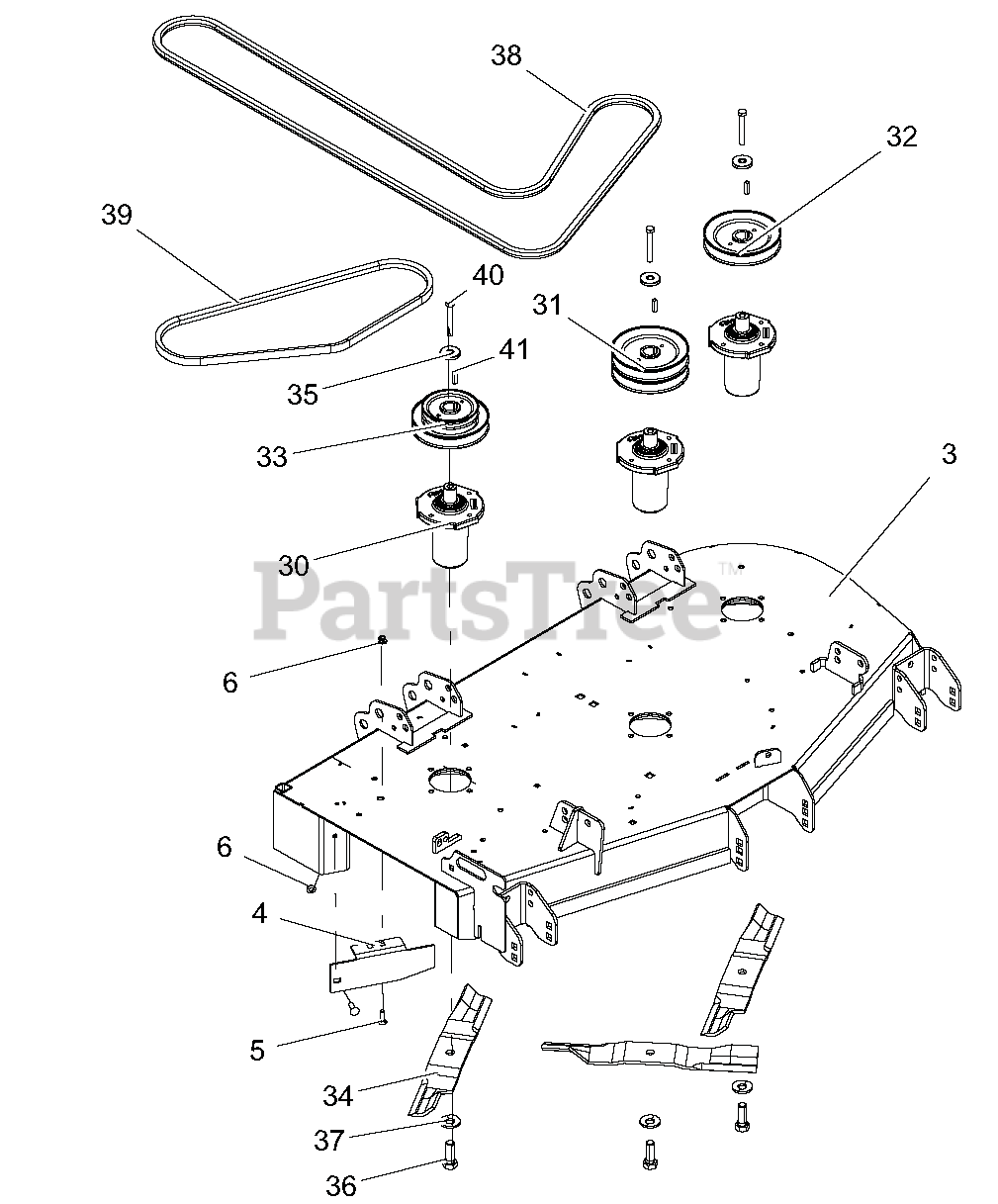

Deck, Belts, Baffles, Blades and Spindles - 48" Deck Parts Diagram

  • Title

3

Gravely 04517753

48" 10GA SIDE DISCH DECK - RED
(Superseded to 59102500)

$1161.99

$

Usually ships in 4-12 days

0

4

Gravely 04389353

BAFFLE, DISCHARGE 44/48

$73.99

$

Usually ships in 4-12 days

0

5

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

31

Gravely 07329267

PULLEY, DOUBLE-1"ID X 5.75"OD
(Superseded to 07329200)

$82.99

$

In Stock, Qty 12

0

32

Gravely 07329367

PULLEY, V-1" ID X 5.75" OD
(Superseded to 07329300)

$72.99

$

In Stock, Qty 14

0

33

Gravely 07329467

PULLEY, DBL-1"IDX5.75"&3.50"OD

Note: (SN 020000 - 020999)

$102.99

$

In Stock, Qty 5

0

33

Gravely 07340200

PULLEY, DBL-1"IDX5.75"&4.25"OD

Note: (SN 021000 and up)

$64.99

$

In Stock, only 2 left!

0

34

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

Note: (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

35

Gravely 04530500

RETAINER, SHEAVE

$9.49

$

In Stock, Qty 20+

0

36

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

37

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

38

Gravely 07200024

HEX BELT, BB-WRAPPED

$137.99

$

In Stock, only 3 left!

0

39

Gravely 07200035

V-BELT, B-COGGED

$55.99

$

In Stock, Qty 6

0

40

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0
