991202 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 020000 - 029999) Engine - Kawasaki Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

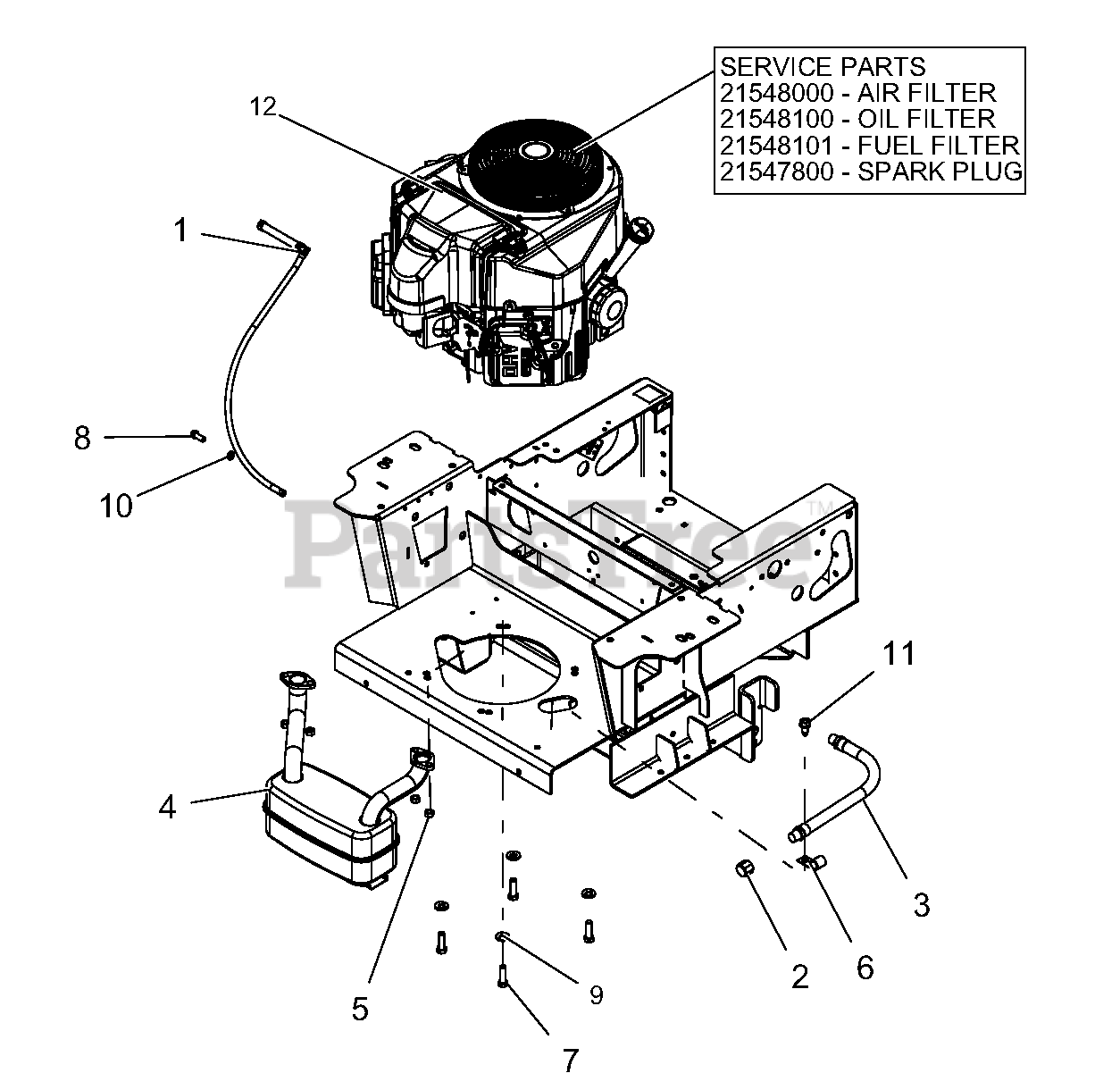

Engine - Kawasaki Parts Diagram

  • Title

1

Gravely 04552100

ASM, PT KAW FUEL TANK VENT HOSE

$17.99

$

Usually ships in 4-12 days

0

2

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

4

Gravely 04411300

MUFFLER, KAWASAKI
(Superseded to 05088300)

$102.99

$

In Stock, only 1 left!

0

5

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

6

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901808)

$1.99

$

In Stock, Qty 5

0

8

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 08200822

ENGINE, KAWASAKI FS691 (991200, 2021, 204, 205)

Note: (991200, 2021, 204, 205)

$

$

Not available

13

Gravely 08200823

ENGINE, KAWASAKI FS730 (991202, 206)

Note: (991202, 206)

$

$

Not available
