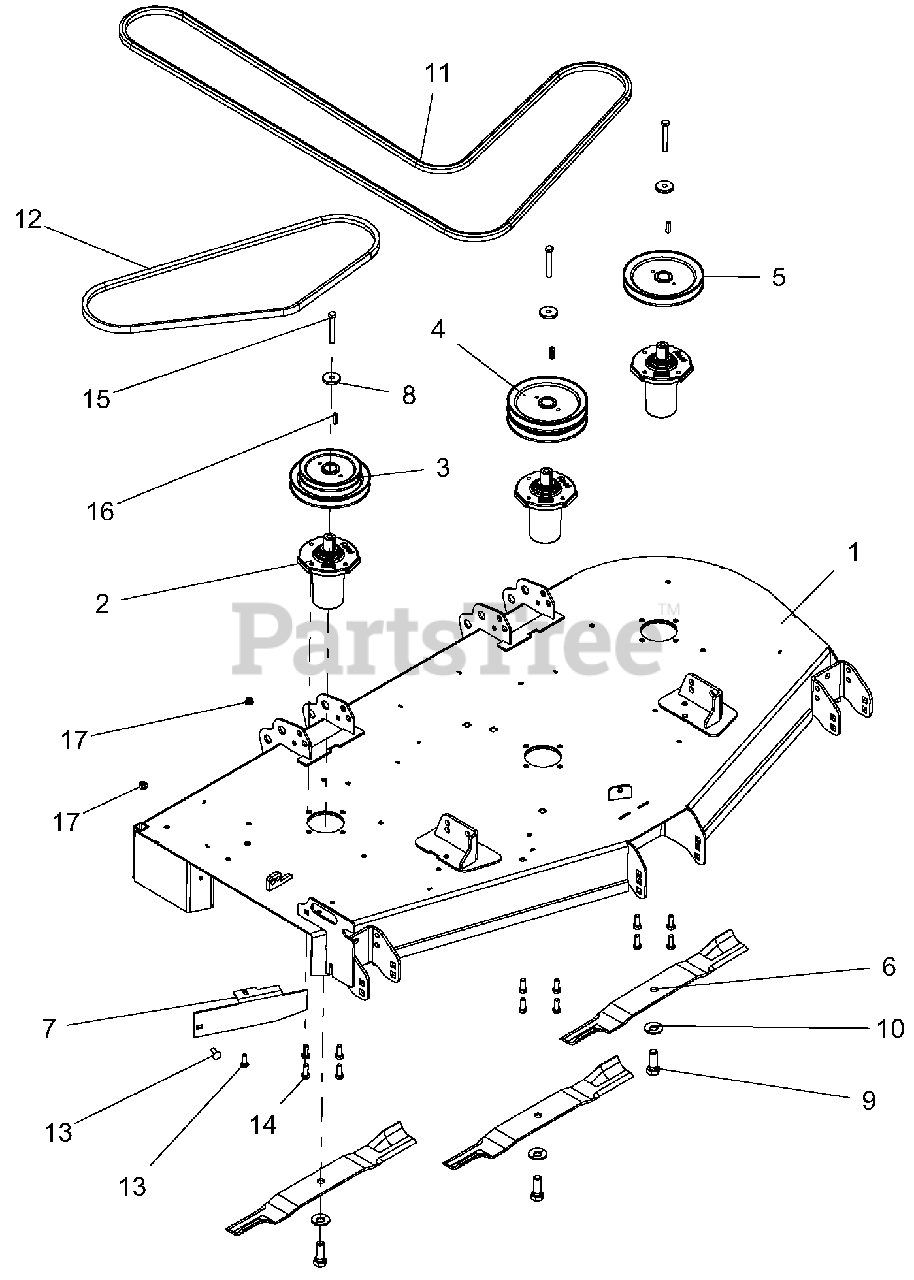

991203 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 030000 - 039999) Decks, Belts, Baffles, Blades And Spindles - 60 Inch Deck Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

Decks, Belts, Baffles, Blades And Spindles - 60 Inch Deck Parts Diagram

  • Title

1

Gravely 59102300

KIT,DECK - 60" W/SAFETY DECALS

$1318.99

$

Usually ships in 4-12 days

0

2

Gravely 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

3

Gravely 07340400

PULLEY, DBL-1"IDX6.75"&5.25"OD

$72.99

$

In Stock, Qty 17

0

4

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$93.99

$

In Stock, Qty 20+

0

5

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$84.99

$

In Stock, Qty 20+

0

6

Gravely 03253900

BLADE, 20.5"

$31.99

$

In Stock, Qty 20+

0

7

Gravely 04389553

BAFFLE, DISCHARGE, 60"

$31.99

$

Usually ships in 4-12 days

0

8

Gravely 04530500

RETAINER, SHEAVE

$9.49

$

In Stock, Qty 20+

0

9

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

11

Gravely 07200510

HEX BELT, BB-WRAPPED

$151.99

$

In Stock, Qty 20+

0

12

Gravely 07200038

V-BELT, B-COGGED

$68.99

$

In Stock, Qty 20+

0

13

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0
