991203 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 030000 - 039999) Seat Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

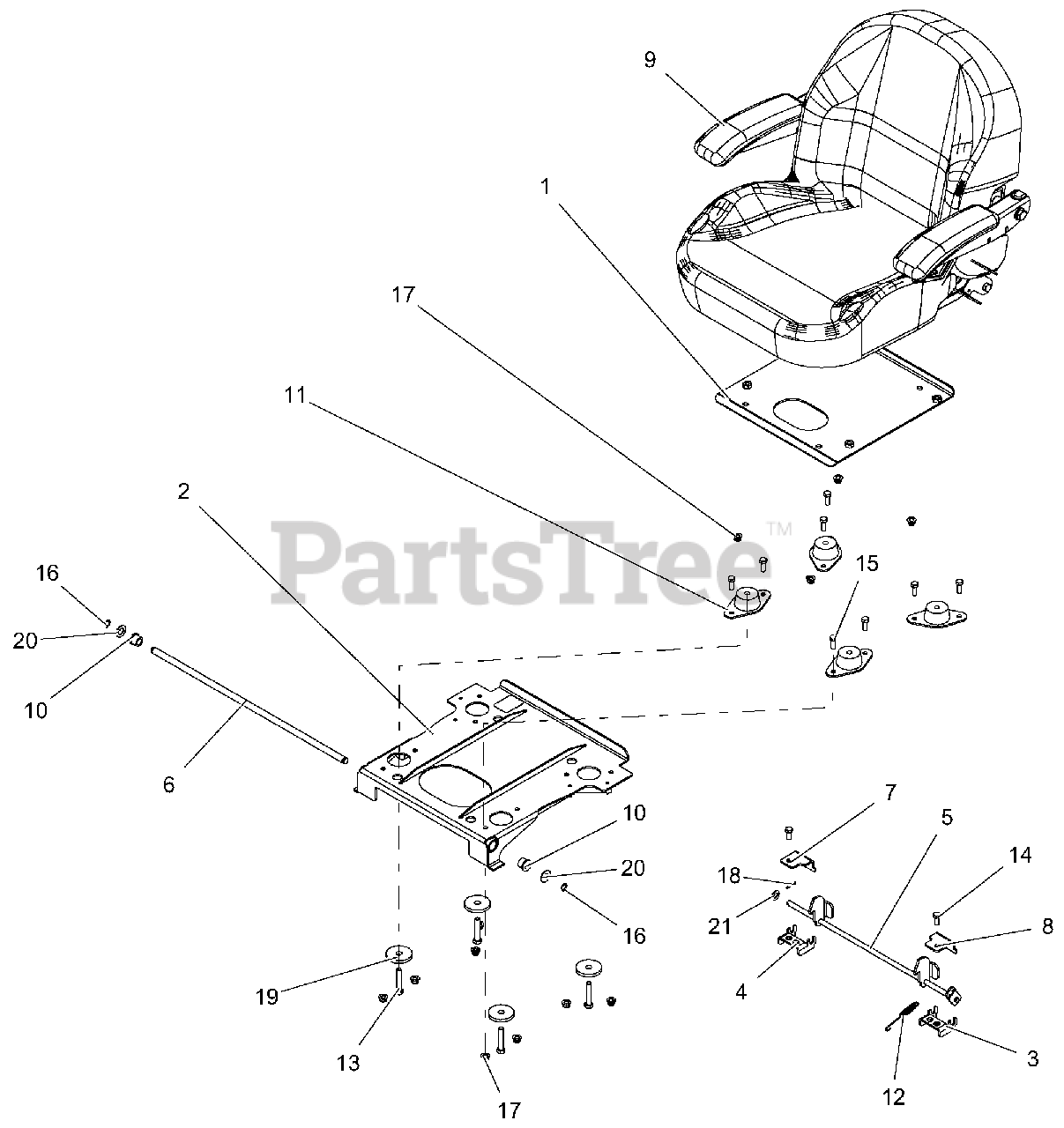

Seat Parts Diagram

  • Title

1

Gravely 04554851

SEAT MOUNTING PLATE WMT -BLACK

$125.99

$

Usually ships in 4-12 days

0

2

Gravely 04554951

PRO-TURN ISO MTG PLT WMT - BLK

$111.99

$

Usually ships in 4-12 days

0

3

Gravely 03930551

PT100 LH SEAT LATCH MNT WMT-BL

$

$

Not available

4

Gravely 03930451

PT100 RH SEAT LATCH MNT WMT-BL

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 03917751

PRO-TURN100 SEAT LATCH WMT-BLK

$65.99

$

Usually ships in 4-12 days

0

6

Gravely 03837800

SHAFT, PT100 SEAT PIVOT

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 03917951

PT100 RH TOP SEAT LATCH MNT-BL

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 03918551

PT100 LH TOP SEAT LATCH MNT-BL

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 04518600

SEAT, NON-SUSPENSION
(Superseded to 05073600)

$

$

Not available

10

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$6.49

$

In Stock, only 2 left!

0

11

Gravely 07500237

MOUNT, FAIL-SAFE COMPRESSION

$37.99

$

Usually ships in 4-12 days

0

12

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 13

0

13

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.99

$

In Stock, only 2 left!

0

16

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

19

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
