991203 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 030000 - 039999) Tire Assembly Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

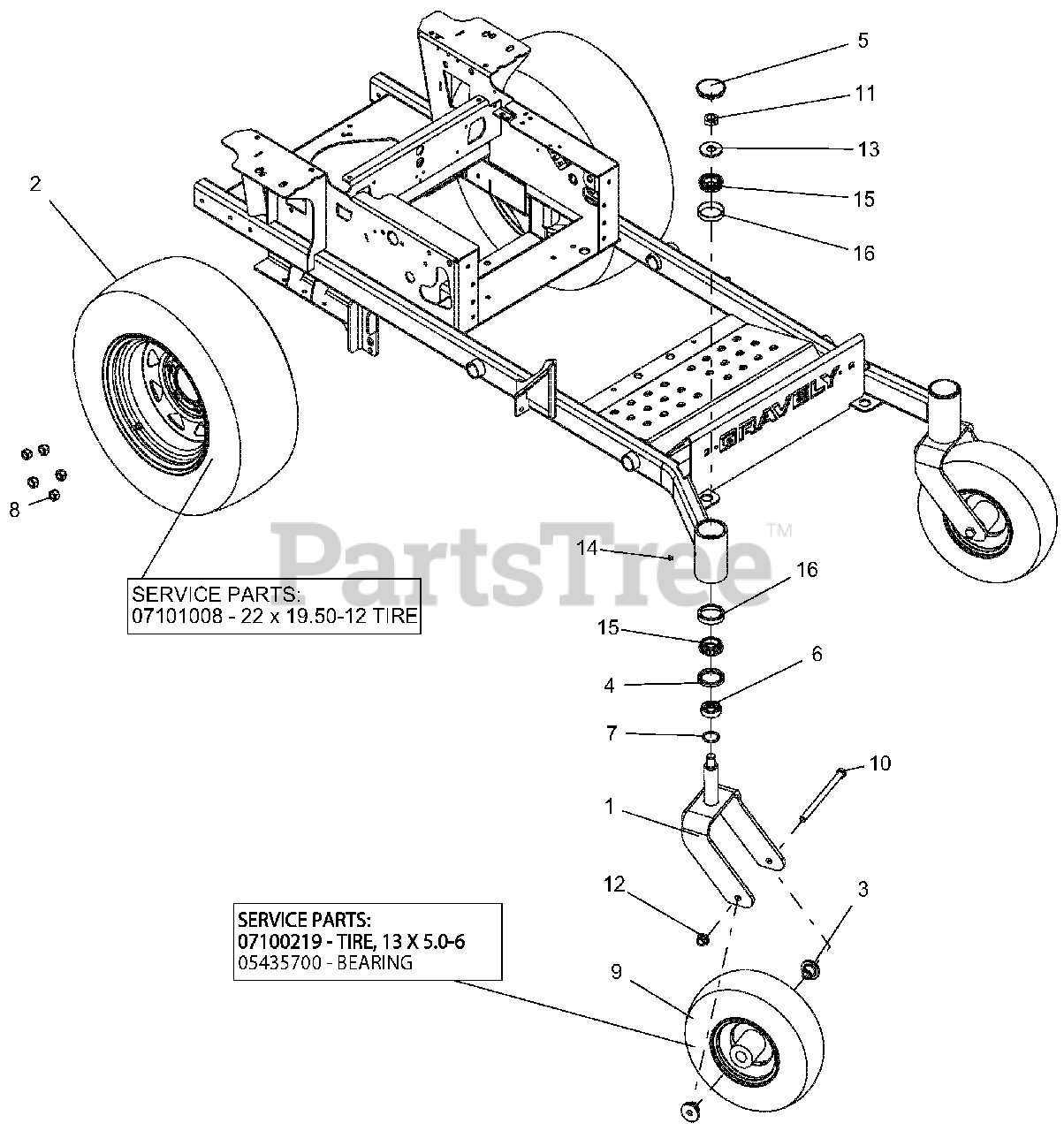

Tire Assembly Parts Diagram

  • Title

1

Gravely 04539353

CASTER FORK WLDMT - RED

$153.99

$

Usually ships in 4-12 days

0

2

Gravely 07101007

TIRE/WHEEL ASSEMBLY 22X9.5-12

$244.99

$

Usually ships in 4-12 days

0

2

Gravely 07101008

TIRE, 22 X 9.50-12

$159.99

$

In Stock, only 2 left!

0

3

Gravely 00675300

SPACER, FRONT WHEEL

$9.49

$

In Stock, Qty 20+

0

4

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$12.99

$

In Stock, Qty 19

0

5

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, Qty 6

0

6

Gravely 04718600

SPACER, FRONT CASTER FORK
(Superseded to 04861500)

$14.99

$

In Stock, Qty 5

0

7

Gravely 05600515

O-RING,

$2.99

$

In Stock, Qty 11

0

8

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 07100835

TIRE/WHEEL ASSY, 13X5-6
(Superseded to 07101111)

$131.99

$

In Stock, Qty 20+

0

9

Gravely 07100219

TIRE, 13X5.00-6
(Superseded to 07101609)

$68.99

$

Usually ships in 4-12 days

0

9

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

$25.99

$

In Stock, Qty 20+

0

10

Gravely 05978200

BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$8.49

$

In Stock, Qty 17

0

11

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$6.49

$

In Stock, Qty 11

0

12

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 11

0

14

Gravely 07001723

PLUG, .250-28 X .185 HEX HEAD

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 05404700

BRG-CONE 1.25X.66

$22.99

$

In Stock, Qty 18

0

16

Gravely 05404600

BRG-CUP 2.328X.465

$15.99

$

In Stock, Qty 15

0
