991204 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki, CARB (SN: 040000 & Above) Belt Covers - 48 Inch Deck Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki, CARB

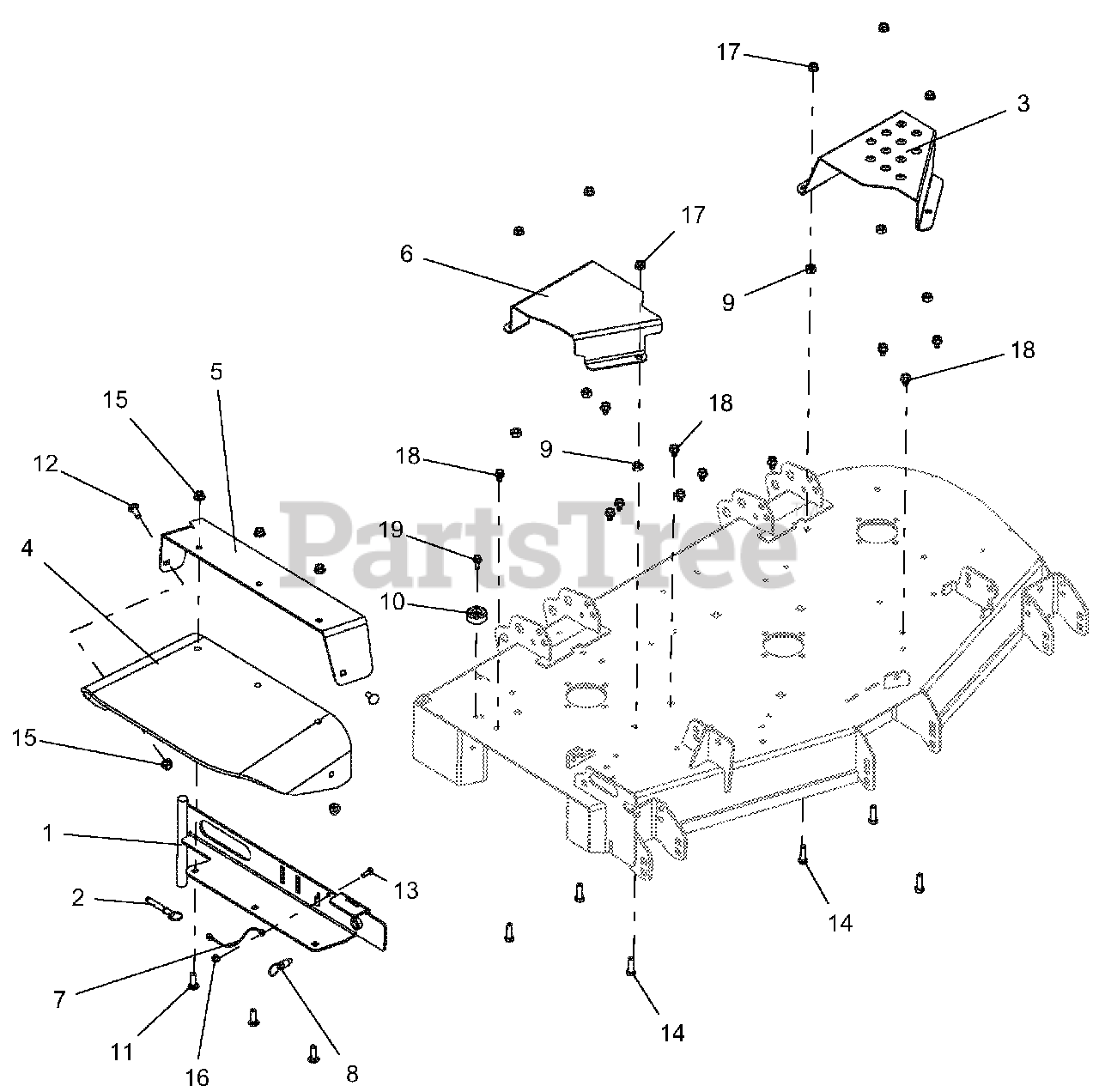

Belt Covers - 48 Inch Deck Parts Diagram

  • Title

1

Gravely 00980453

WMT, 44"-48" DISCH CHUTE MTG
(Superseded to 04757453)

$120.99

$

In Stock, only 4 left!

0

2

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.99

$

In Stock, Qty 13

0

3

Gravely 03977151

GUARD,LH DECK BELT,44-52

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$72.99

$

In Stock, Qty 7

0

5

Gravely 59104400

KIT-SUPT DISCH CHUTE PT-RED

$

$

Not available

6

Gravely 04590251

GUARD 48-52 RH DECK BELT-BLACK

$60.99

$

Usually ships in 4-12 days

0

7

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

$6.99

$

In Stock, only 2 left!

0

8

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

9

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$2.49

$

In Stock, Qty 19

0

10

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.99

$

In Stock, only 3 left!

0

11

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$2.49

$

In Stock, Qty 12

0
