991208 (Pro-Turn 52) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 030000 - 039999) Fuel System - Non-CARB Parts Diagram

Pro-Turn 52" Zero-Turn Mower

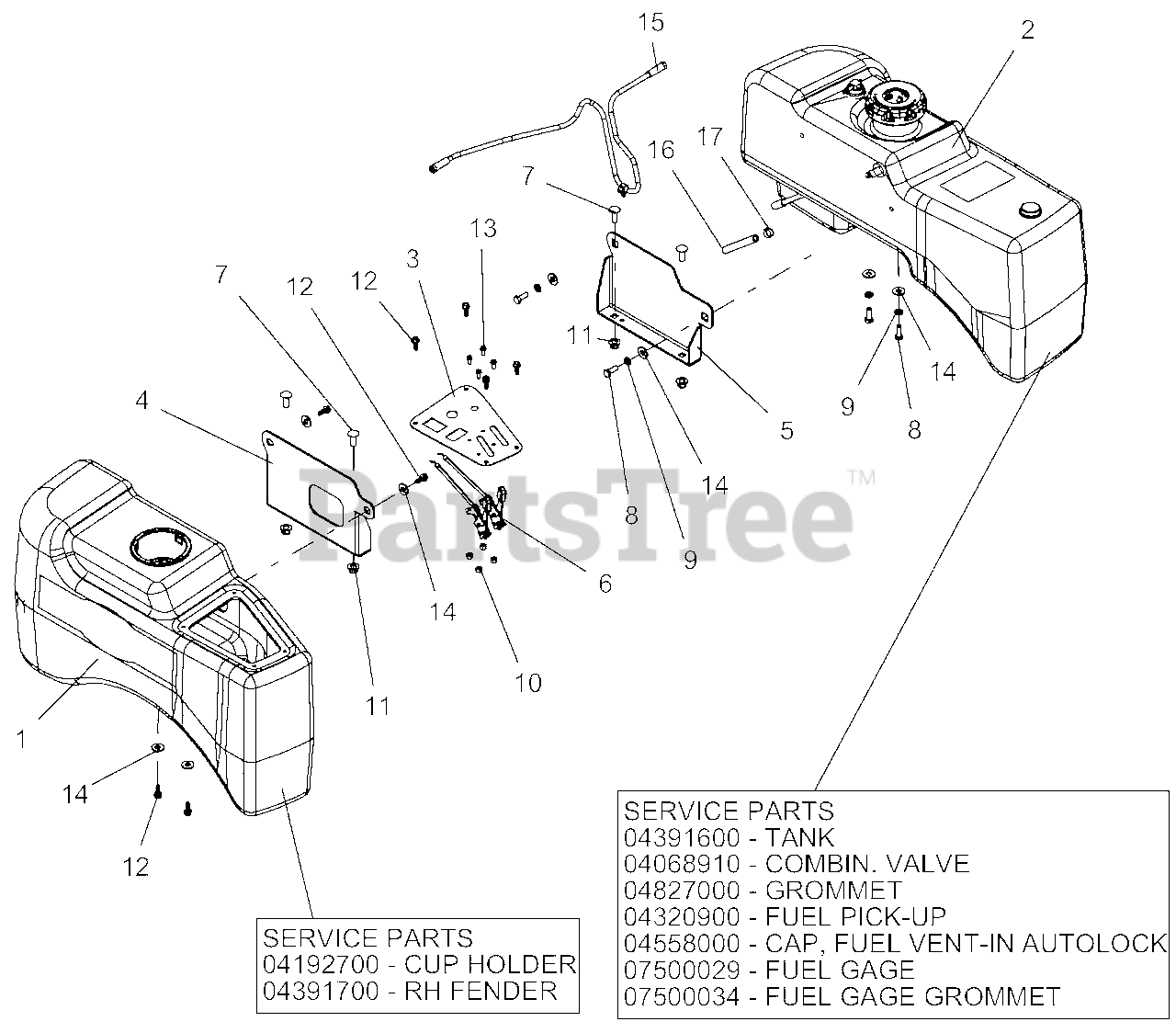

Fuel System - Non-CARB Parts Diagram

  • Title

1

Gravely 04685900

ASM, FENDER W/CUPHOLDER

$352.99

$

Usually ships in 4-12 days

0

1

Gravely 04192700

CUP HOLDER

$23.99

$

Usually ships in 4-12 days

0

1

Gravely 04391700

RH FENDER
(Superseded to 04685900)

$352.99

$

Usually ships in 4-12 days

0

2

Gravely 04334500

HD, FUEL TANK ASSEMBLY
(Superseded to 04739000)

$659.99

$

Usually ships in 4-12 days

0

2

Gravely 04391600

TANK
(Superseded to 04739000)

$659.99

$

Usually ships in 4-12 days

0

2

Gravely 04068910

COMBIN. VALVE
(Superseded to 05185600)

$18.99

$

In Stock, Qty 13

0

2

Gravely 04827000

GROMMET

$28.99

$

Usually ships in 4-12 days

0

2

Gravely 04320900

FUEL PICK-UP

$40.99

$

In Stock, Qty 20+

0

2

Gravely 04558000

CAP, FUEL VENT-IN AUTOLOCK
(Superseded to 09190300)

$35.99

$

In Stock, Qty 8

0

2

Gravely 07500029

FUEL GAGE
(Superseded to 07500309)

$

$

Not available

2

Gravely 07500034

FUEL GAGE GROMMET

$6.99

$

In Stock, Qty 20+

0

3

Gravely 04391851

PANEL, INSTRUMENT-BLACK

$35.99

$

Usually ships in 4-12 days

0

4

Gravely 04538753

BRKT, RH HD FUEL TANK MTG-RED

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 04538853

BRKT, LH HD FUEL TANK MTG-RED

$40.99

$

Usually ships in 4-12 days

0

6

Gravely 06900422

CABLE, CONTROL

$43.99

$

In Stock, Qty 8

0

7

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05947800

BLT-HEX .31-18X.875 GR5 YWZC
(Superseded to 05901801)

$2.99

$

In Stock, Qty 9

0

9

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06100213

SCR-PLASTITE .25-10X.75 YWZC
(Superseded to 06100231)

$1.99

$

In Stock, Qty 6

0

13

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 04459400

KAWASAKI, VENT LINE HD/PRO-TURN

$36.99

$

Usually ships in 4-12 days

0

16

Gravely 03278100

.25 LOW-PERM GAS HOSE 18.50" LG - TANK TO ENGINE

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0
