991208 (Pro-Turn 52) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 030000 - 039999) Fuel System - Non-CARB Parts Diagram

Pro-Turn 52" Zero-Turn Mower

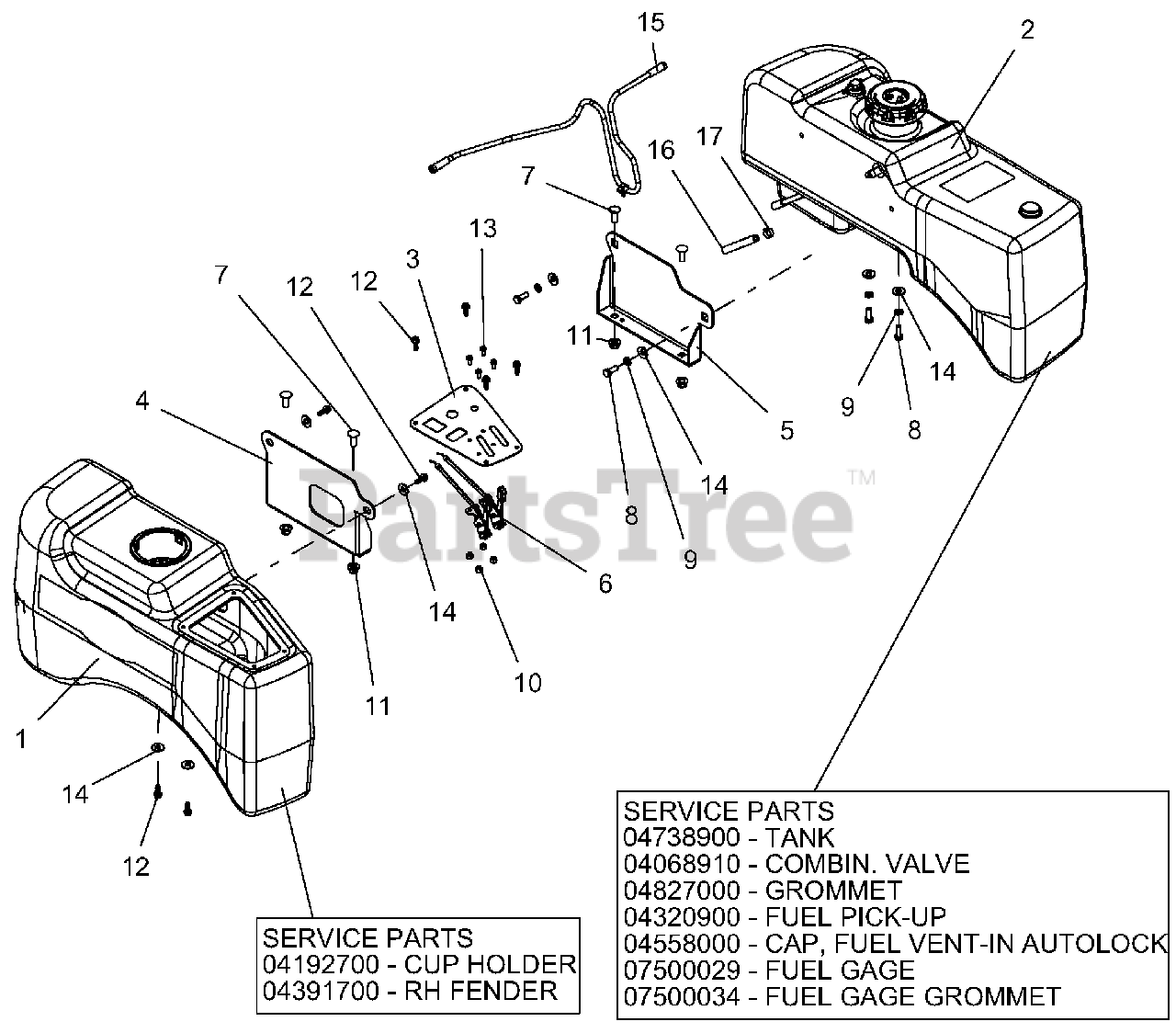

Fuel System - Non-CARB Parts Diagram

  • Title

1

Gravely 04685900

ASM, FENDER W/CUPHOLDER

$368.99

$

Usually ships in 4-12 days

0

1

Gravely 04192700

CUPHOLDER, SNAP-IN 3.75OD

$25.99

$

Usually ships in 4-12 days

0

1

Gravely 04391700

FENDER, RH
(Superseded to 04685900)

$368.99

$

Usually ships in 4-12 days

0

2

Gravely 04334500

HD, FUEL TANK ASSEMBLY
(Superseded to 04739000)

$689.99

$

Usually ships in 4-12 days

0

2

Gravely 04738900

TANK, LH FUEL

$

$

Not available

2

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$19.99

$

In Stock, only 1 left!

0

2

Gravely 04827000

BRKT, EXHAUST MOUNT

$29.99

$

Usually ships in 4-12 days

0

2

Gravely 04320900

ASM, FUEL PICK-UP SML/MED TANK

$43.99

$

In Stock, Qty 15

0

2

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$36.99

$

In Stock, Qty 10

0

2

Gravely 07500029

GAUGE, REMOTE FUEL 10.0"
(Superseded to 07500309)

$

$

Not available

2

Gravely 07500034

GROMMET, FUEL GAGE

$7.49

$

In Stock, Qty 19

0

3

Gravely 04391851

INSTRUMENT PANEL - BLK

$37.99

$

Usually ships in 4-12 days

0

4

Gravely 04538753

RH HD FUEL TANK MTG BRKT - RED

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 04538853

LH HD FUEL TANK MTG BRKT - RED

$43.99

$

Usually ships in 4-12 days

0

6

Gravely 06900422

CABLE, CONTROL

$45.99

$

In Stock, only 2 left!

0

7

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$3.49

$

In Stock, only 2 left!

0

9

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06100213

SCR-PLASTITE .25-10X.75, YWZC
(Superseded to 06100231)

$2.49

$

In Stock, Qty 8

0

13

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 04459400

LINE, ZTHD KAWASAKI EVAP

$38.99

$

Usually ships in 4-12 days

0

16

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

17

Gravely 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0
