991211 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 050000 & Above) Decks, Belts, Baffles, Blades And Spindles - 60 Inch Deck Parts Diagram

Pro-Turn 60" Zero-Turn Mower

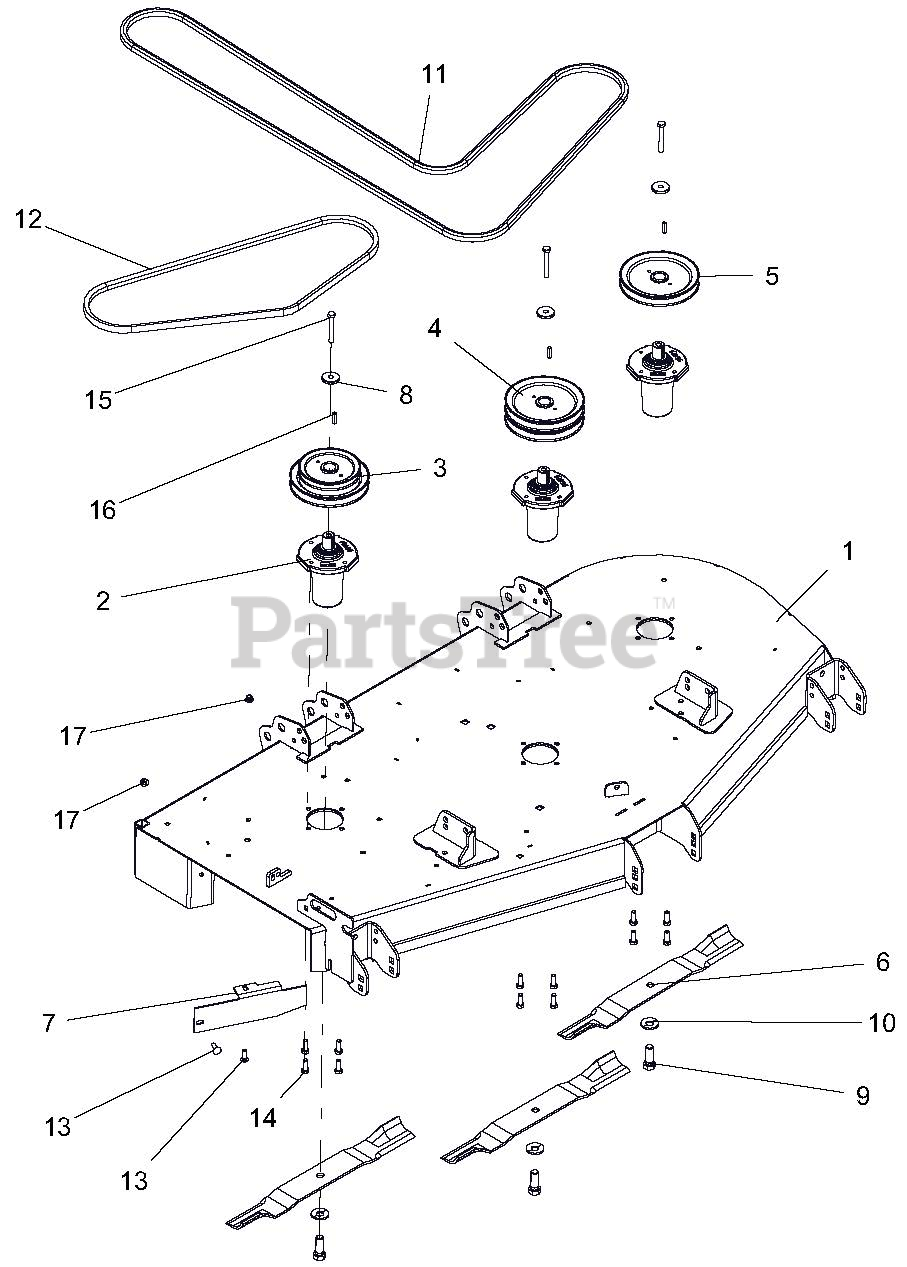

Decks, Belts, Baffles, Blades And Spindles - 60 Inch Deck Parts Diagram

  • Title

1

Gravely 59102300

KIT, 60" MOWER DECK W/SAFETY DECALS-RED

$

$

Not available

2

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

3

Gravely 07340400

PULLEY, DOUBLE -1" ID X 6.75" & 5.D25" O

$72.99

$

In Stock, Qty 18

0

4

Gravely 07328867

PULLEY, DOUBLE 1"ID X 6.75"OD-BLACK
(Superseded to 59211500)

$93.99

$

In Stock, Qty 20+

0

5

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD-BLACK
(Superseded to 59211600)

$84.99

$

In Stock, Qty 18

0

6

Gravely 03253900

BLADE, 20.5"

$31.99

$

In Stock, Qty 20+

0

7

Gravely 04389553

BAFFLE, DISCHARGE, 60"-RED

$31.99

$

Usually ships in 4-12 days

0

8

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$9.49

$

In Stock, Qty 12

0

9

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$5.49

$

In Stock, Qty 20+

0

11

Gravely 07200510

BELT, BB 118.00 WRAPPED HEX

$151.99

$

In Stock, Qty 16

0

12

Gravely 07200038

BELT, B 63.00 RAW COGGED

$68.99

$

In Stock, Qty 20+

0

13

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00YG5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0
