991212 (Pro-Turn 52) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 050000 & Above) Clutch Parts Diagram

Pro-Turn 52" Zero-Turn Mower

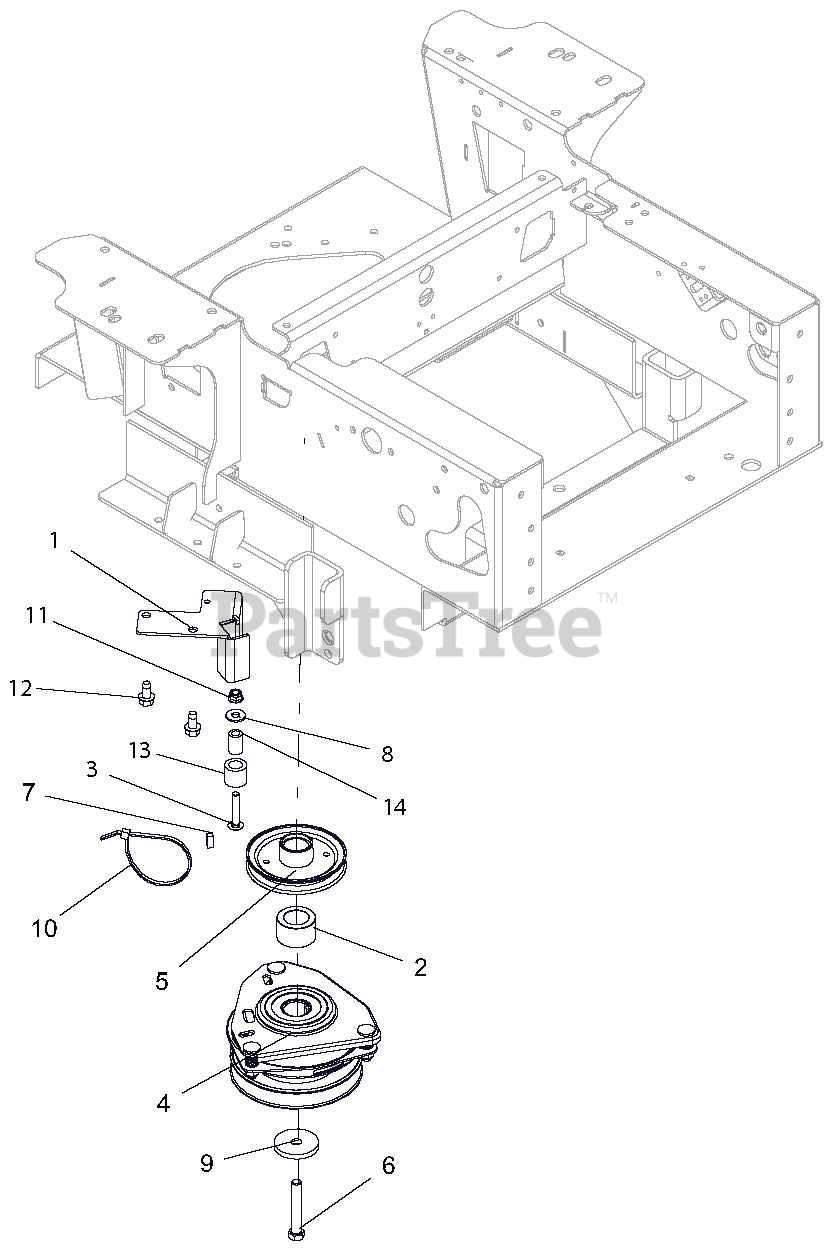

Clutch Parts Diagram

  • Title

1

Gravely 04788751

BRKT, CLUTCH STOP

Note: (BLACK)

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 04519200

SPCR, 1.125 C 1.750 X 1.060

$18.99

$

In Stock, only 2 left!

0

3

Gravely 06213900

BLT-RDHDSQSHNK .31-18X1.75 YWZC
(Superseded to 06200335)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 04553800

CLUTCH, OGURA GT1A-EH01

$383.99

$

In Stock, only 1 left!

0

5

Gravely 07331667

PULLEY, 4.50 OD X 1.127 ENGINE-BLACK
(Superseded to 07331600)

$

$

Not available

6

Gravely 05900043

BLT-HEX .44-20X2.75 GR5 EP80 YWZC

$9.99

$

In Stock, Qty 20+

0

7

Gravely 06602700

KEY-SQ .250X.250X.625

$3.99

$

In Stock, Qty 10

0

8

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

10

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

11

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$6.49

$

In Stock, Qty 9

0

14

Gravely 08833400

BUSH.,S.391X.622X.95 ST REV A

$6.49

$

In Stock, only 4 left!

0
